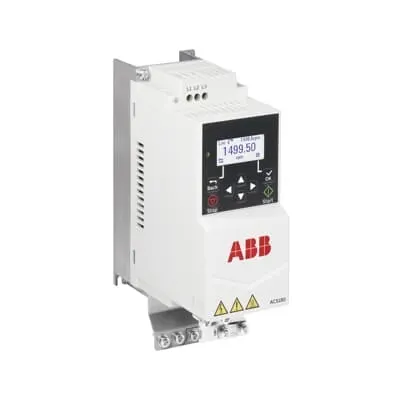

ABB 3AXD50000662432 Motors & Drives - ACS180-04N-01A8-4
Part Number: 3AXD50000662432
Quick Summary
ABB ACS180 drive module is a compact variable speed drive for pumps, fans, conveyors. Design engineers face integration challenges with legacy controls and cross vendor interfaces. UL listed safety, IEC architecture compatibility, and compact form help simplify procurement and installation. This drives efficiency and reliability while reducing wiring complexity and total cost of ownership. Secondary keywords: 0.55 kW drive, 1.8 A, 400 V voltage rating for easy references. With ABBs all compatible drive portfolio you can reuse familiar programming interfaces and diagnostics across products. The ACS180 module supports compact installation footprints, robust performance in demanding environments, and straightforward commissioning. For maintenance teams, the modular design simplifies replacement and spare part planning, reducing downtime.
Product Information
Extended Description
3AXD50000662432 ABB: The ACS180 is a compact, robust, and adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers.This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Feature: Compact LV AC VSD architecture reduces panel space and simplifies wiring, enabling faster and more reliable installations. Business Impact: Lower installation costs and easier retrofit projects across multiple line stations. Application: Pumps in HVAC and small conveyors in packaging lines. Feature: Easy commissioning and diagnostics, with familiar ABB interfaces that shorten startup times. Business Impact: Reduced commissioning hours and fewer operator errors. Application: New line integration and plant expansion. Feature: All compatible drive portfolio supports consistent software tools and diagnostics, lowering training costs. Business Impact: Quicker skill transfer and standardized maintenance across sites. Application: Global manufacturing footprints with mixed equipment. Feature: UL safety listing and robust protection features improve reliability in harsh environments. Business Impact: Enhanced safety compliance and longer equipment life. Application: Machine rooms and dusty, humid areas. Feature: 0.55 kW power rating with 1.8 A current at 400 V supports energy efficiency without oversizing drives. Business Impact: Energy savings and reduced motor wear. Application: Small pumps, fans, and conveyors that operate under variable loads. This combination of compact design, ease of use, and proven ABB interfaces delivers measurable cost reductions, faster ROI, and improved asset availability across industrial automation environments.
Get a Quick Quote for a ABB 3AXD50000662432
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000662432?
Enquire Now
FAQs
To install the ACS180 drive module, ensure a three-phase 400 V supply is available and wire the motor to the drive output rated for 0.55 kW. Configure motor data, choose a suitable V/Hz profile, and enable safety interlocks. Use ABBs programming interface and diagnostics to verify motor direction, speed reference, and fault protection. Commission with a hands-on test under load to confirm stable operation.
Key specifications include a 0.55 kW (0.75 HP) output power, 1.8 A input current at 400 V, and a compact LV AC drive form factor. The module is UL listed, supports standard ABB interfaces, and aligns with the ACS180 family architecture for consistent programming and diagnostics. It is intended for pumps, fans, conveyors and related machinery applications.
Yes. The ACS180 drive module is designed for pumps, fans, conveyors, and similar loads in industrial HVAC and process settings. Its compact footprint, simple commissioning, and familiar ABB interfaces help minimize installation time and downtime while delivering smooth speed control, improved energy efficiency, and reliable operation under varying loads typical in HVAC applications.
This drive module is UL listed, supporting safety compliance for North American installations. Its architecture follows international standards, enabling easier integration with IEC-based control schemes and cross-vendor systems. Documentation and ABBs engineering support help with CE compliance processes where required, ensuring regulatory alignment across global sites and reduced time to start-up.
Plan for routine inspection of the power electronics enclosure, verify wiring integrity, and maintain firmware updates via ABBs tools to preserve performance. The ROI comes from energy efficiency through variable speed control, reduced startup and wear on pumps and fans, and easier maintenance due to a modular, serviceable design that lowers spare parts and downtime costs.
