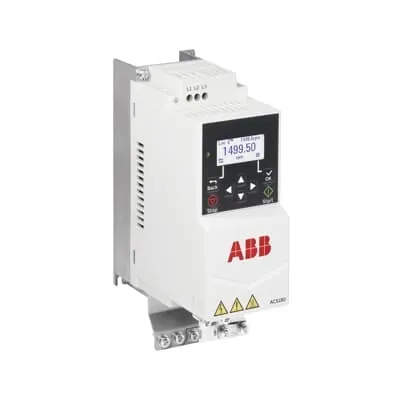

ABB 3AXD50000716340 LV AC Drive Module - 0.55 kW
Part Number: 3AXD50000716340
Quick Summary
ABB ACS180 LV AC drive module provides precise speed control for pumps, fans, and conveyors. Engineers often face integration hurdles, limited space, and inconsistent interfaces when deploying variable-speed drives. This family aligns with global standards, including CE for Europe, UL safety certification, and robust industrial protection. By pairing with ABB’s all-compatible drives portfolio, it delivers easy configuration, predictable performance, and simplified maintenance, boosting uptime and energy efficiency.
Product Information
Extended Description
3AXD50000716340 ABB: The ACS180 is a compact, robust, and adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers.
This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Compact footprint and robust construction reduce panel space and simplify installation, translating to lower enclosure costs and faster commissioning. The module’s compact form factor and rugged chassis are designed for harsh industrial environments, supporting reliable operation in pumps, fans, conveyors, winders, and mixers. Unified ABB drive architecture provides a consistent user interface across the all-compatible drives portfolio, cutting training time and minimizing configuration errors during startup and expansion. The Pn 0.55 kW rating at 230 V with a 3.7 A load enables efficient motor control for small machines, delivering energy savings and smoother process ramping that reduce mechanical stress and maintenance needs. Embedded essential machinery features streamline setup and protection, including torque control and safe-start behavior, which translate to higher uptime and lower lifecycle costs. Compatibility with the ACS180 family and ABB’s broader drive ecosystem simplifies upgrades, spare parts planning, and long-term support for mixed automation environments.
Get a Quick Quote for a ABB 3AXD50000716340
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000716340?
Enquire Now
FAQs
Yes. This module is rated for 230 V operation and delivers 0.55 kW with up to 3.7 A, making it suitable for 230 V single-phase inputs or configured 3-phase setups supported by the ACS180 family. When wiring, follow the installation manual to ensure proper motor connections, shielding, and control wiring to minimize EMI and nuisance trips.
The drive is designed for small motors up to 0.55 kW (Pn) with a rated current of 3.7 A at 230 V. It supports typical applications such as pumps, fans, conveyors, winders, and mixers. For best results, match motor type and wiring to the drive settings and choose appropriate control mode (V/Hz or vector) based on load characteristics.
Yes. The ACS180-based module shares ABB’s all-compatible drive architecture and user interface, enabling streamlined upgrades and consistent parameter management across the ABB drive portfolio. This reduces training needs, ensures compatibility with existing control logic, and simplifies calibration when expanding a system with additional ABB drives.
The product aligns with common global standards for industrial drives, including UL safety considerations reflected in the 0.75 Hp, 3.5 A, 230 V rating. European markets typically expect CE conformity. Always confirm regional requirements and any additional certifications such as IP ratings or SIL for your specific installation with the supplier and local compliance guidelines.
The drive delivers energy savings through precise speed control and smoother motor ramps, reducing energy waste and wear on mechanical components. Its compact footprint lowers enclosure costs, while ABB’s architecture minimizes spare parts and training time. Over time, this translates to lower maintenance costs and a faster return on investment in applications like pumps, fans, conveyors, and mixers.
