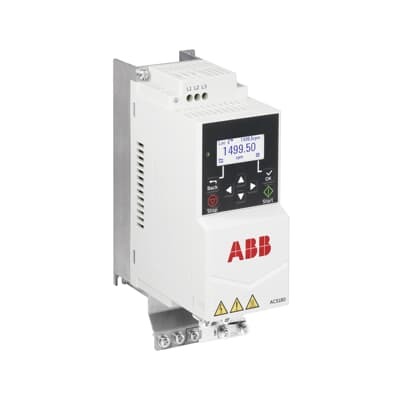

ABB 3AXD50000716579 LV AC Machinery Drive Module - UL-listed 0.55 kW
Part Number: 3AXD50000716579
Quick Summary
ABB ACS180 LV AC drive module is a compact variable speed drive that provides precise motor control for pumps, fans, and conveyors. Engineers often struggle with cramped control cabinets, complex wiring, and inconsistent performance when integrating drives. UL-listed and IEC-based architecture help ensure reliable operation within ABB's all-compatible drives family, supporting straightforward compliance. This combination delivers energy efficiency and easier maintenance, while preserving compatibility with ABBās drive ecosystem and common commissioning workflows, driving faster time-to-value for automation projects.
Product Information
Extended Description
3AXD50000716579 ABB: The ACS180 is a compact and robust adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers. This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
The ACS180 drive module delivers a compact footprint that frees space in control panels while simplifying wiring and installation, reducing cabling errors and installation time. This translates to lower commissioning costs and faster system startups in processes such as pumping stations, HVAC, and packaging lines. The 0.55 kW rating at 230 V with a 3.7 A nominal current matches small to mid-size motors, enabling reliable speed control on fans, conveyors, and mixers without oversizing equipment. As part of ABBās all-compatible drives portfolio, the module shares a consistent user interface and configuration approach, cutting training time and enabling seamless integration with existing ABB automation layers, including IEC-compliant safety and control schemes. UL listing provides assurance for safety-critical installations, while robust fault-tolerance and built-in protection features reduce unplanned downtime and maintenance costs. The ACS180ās user-friendly setup and parameter memory support rapid commissioning in batch or continuous processes, improving uptime and operator confidence in variable speed operations. Industry context favors compact, energy-efficient drives that can be wired quickly, tested easily, and supported by ABB service networks for long-term reliability.
Get a Quick Quote for a ABB 3AXD50000716579
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000716579?
Enquire Now
FAQs
The ACS180-04S-03A7-1 module is designed for 230 V systems and 3.7 A current, catering to small- to mid-size pumps, fans, and conveyors. It fits ABBās all-compatible drive portfolio, offering a consistent interface for easy integration, commissioning, and maintenance with existing ABB automation assets.
Begin with the 230 V supply and motor connection per the ACS180 wiring diagram, ensure proper thermal clearance, and configure basic parameters (target speed, max/min frequency). Take advantage of the moduleās compact footprint to maximize panel space, and use ABBās installation guides for sequence wiring to reduce start-up time.
Voltage: 230 V; Current: 3.7 A (UL rating: 3.5 A); Power: 0.55 kW; Model: ACS180-04S-03A7-1. These specs suit small motors in pumps, fans, and light conveyors, delivering reliable speed control with built-in protection features.
Yes, the ACS180 module is UL-listed, aligning with safety requirements for many industrial environments. Its architecture and ABB-wide portfolio compatibility further support safe operation, straightforward maintenance, and consistent performance across ABB drives.
Using a variable speed drive like ACS180 typically reduces energy consumption by optimizing motor speed to the process load, often delivering measurable energy savings and reduced wear on mechanical components. Realized ROI depends on application load profile, but improved control, reduced peak demand, and longer motor life are common financial benefits.
