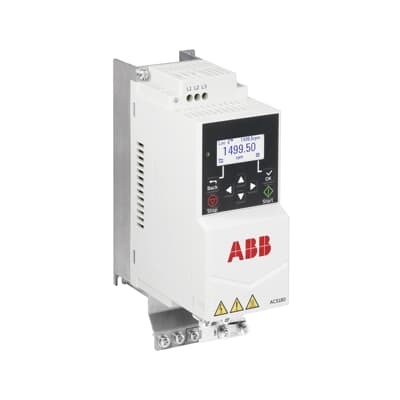

ABB 3AXD50000716630 LV AC drive module - UL 1 Hp/460V
Part Number: 3AXD50000716630
Quick Summary
The ABB ACS180 drive is a compact variable speed drive for pumps, fans, conveyors, and mixers. While the solution reduces downtime, commissioning challenges still occur when integrating new drives into existing control architectures. UL safety listing and ABB’s all-compatible drives architecture help ensure safe, repeatable, and integrated performance across plant networks. This overview highlights energy efficiency, ease of use, and dependable motor control benefits that translate into lower operating costs. By delivering a small footprint with robust performance, it supports rapid upgrades and consistent productivity across multiple line applications.
Product Information
Extended Description
3AXD50000716630 ABB: The ACS180 is a compact and robust adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers. This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
The ACS180 is designed to be a compact and robust adaptable variable speed drive for critical process equipment. Feature → Business Impact → Application: The device’s compact form factor reduces cabinet space and wiring complexity, enabling easier installation in retrofits and new lines, which lowers capital expenditure and commissioning time for pumps and fans across manufacturing floors. Feature → Business Impact → Application: Built-in essential machinery features and a shared interface with ABB's all-compatible drives portfolio minimize operator training and prevent setup errors, delivering faster startup and improved changeover reliability in conveyors and winders. Feature → Business Impact → Application: The UL safety listing and 0.75 kW rating provide dependable performance in 400 V and 460 V systems, supporting HVAC and process environments with lower risk and smoother maintenance planning. Feature → Business Impact → Application: Energy-efficient motor control reduces electricity consumption during variable-load operations, yielding measurable energy savings in continuous operations like pumps and fans, while maintaining precise speed control for conveyors and mixers. Feature → Business Impact → Application: The drive’s compatibility with ABB’s drive family means technicians can reuse programming templates and diagnostic workflows, accelerating upgrades and enabling standardized maintenance across multiple lines. Feature → Business Impact → Application: The robust construction withstands typical industrial conditions, reducing downtime due to environmental stress and extending service intervals in harsh manufacturing settings.
Get a Quick Quote for a ABB 3AXD50000716630
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000716630?
Enquire Now
FAQs
The ACS180 shares the same architecture and user interface as ABB's broader drive family, enabling seamless integration with existing ABB drives. This compatibility reduces programming time, simplifies maintenance, and allows technicians to reuse templates across installations. In practice, this means faster upgrades, fewer enclosure rewrites, and a consistent operator experience across lines.
This model is a 0.75 kW drive with 2.6 A at 400 V, and a UL-listed configuration reflecting 1 Hp with 2.1 A at 460 V. The dual voltage capability supports deployment across 400 V and 460 V sites, enabling flexible installation without changing hardware. These specs balance motor control needs with energy efficiency and safety compliance.
Yes. The ACS180 is explicitly designed for pumps, fans, conveyors, winders, and mixers, delivering precise speed control and torque management. Its compact form factor and robust construction support installation in packed control cabinets or on equipment, reducing footprint while preserving performance. This makes it a solid choice for mid-sized industrial and packaging lines.
Plan for a UL-listed, compact drive module with a robust enclosure and straightforward wiring. Install in controlled environments within standard electrical cabinets, ensure proper cooling, and follow ABB’s recommended fieldbus and power wiring practices. The shared interface with ABB drives reduces training time and helps maintain consistent diagnostics, improving uptime and service planning.
Expect energy savings from variable-speed control during partial-load conditions, reduced mechanical stress due to smoother starts/stops, and lower downtime from a robust design and standardized maintenance workflows. When deployed across pumps and fans on a line, the ACS180 supports a rapid payback through lower energy costs and improved process stability.
