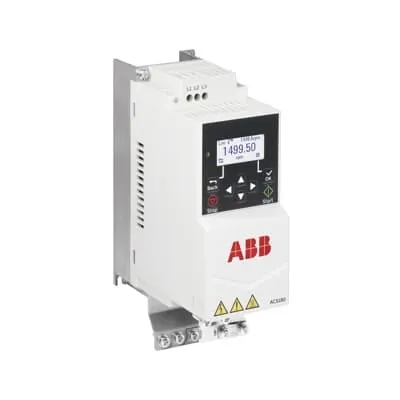

ABB ACS180-04S-03A3-4 Motors & Drives - UL Listed 1.5 HP / 460 V
Part Number: 3AXD50000716647
Quick Summary
The ABB ACS180-04S-03A3-4 is a compact LV AC machinery drive module that provides precise variable speed control for pumps, fans and conveyors. Engineers often struggle with integrating drives into existing control architectures while balancing startup torque and energy efficiency in demanding plant environments. This unit is UL-listed for safety and belongs to ABB's all-compatible drives family, delivering the same architecture and user interfaces across the portfolio for faster commissioning and easier training. With a 1.1 kW (Pn) rating at 400 V and a UL-listed 1.5 HP, 460 V profile, it offers reliable performance. The combination supports a smooth path toward energy savings and scalable automation workflows across production lines.
Product Information
Extended Description
3AXD50000716647 ABB: The ACS180 is a compact and robust adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers. This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Feature → Business Impact → Application: The ACS180-04S-03A3-4 delivers a compact, robust LV AC machinery drive module with 1.1 kW at 400 V, complemented by UL-listed 1.5 HP at 460 V performance. This translates to space-saving installations, lower panel costs, and simplified maintenance in tight machine rooms, ideal for pumps, fans and conveyors on packaging lines. Feature → Business Impact → Application: Its architecture and user interface coincide with ABB's all-compatible drives portfolio, enabling rapid onboarding, consistent programming, and cross-line replication. This reduces commissioning time by days and minimizes operator training, particularly in facilities deploying multiple drives. Feature → Business Impact → Application: Variable speed control enables energy efficiency, softer starts, and improved process stability, reducing wear and energy usage in centrifugal fans and positive-displacement pumps. Feature → Business Impact → Application: Compatibility advantages include standard wiring schemes and fieldbus options, enabling straightforward migration from older drives and easier integration with PLCs, SCADA, and ABB control platforms. Feature → Business Impact → Application: The drive’s compact footprint supports tight enclosures and retrofit projects, lowering installation costs while maintaining robust protection and fault management for applications like winders and mixers.
Get a Quick Quote for a ABB 3AXD50000716647
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000716647?
Enquire Now
FAQs
ACS180-04S-03A3-4 is designed as a compact LV AC machinery drive module that shares ABB's common architecture and user interfaces. This means it plugs into standard 3-phase systems (400 V nominal, with 460 V UL-ready profile) and aligns with the same parameter sets used across ABB’s all-compatible drives portfolio, enabling easy migration from older ABB drives and consistent commissioning workflows.
Core specs include a nominal power of 1.1 kW at 400 V (Pn) and a UL-listed 1.5 HP rating at 460 V. Current draws are approximately 3.3 A at 400 V and 3.0 A at 460 V. These figures define suitable motor loads such as pumps, fans, and conveyors, with appropriate overcurrent protection and wiring practices.
This drive excels in pumps, fans, compressors, conveyors, winders, and mixers that require smooth starts, reliable speed control, and energy efficiency. Its compact design makes it ideal for machine control panels with space constraints, while its interface consistency supports multi-line deployment in manufacturing cells.
The ACS180-04S-03A3-4 is UL-listed for machinery safety, offering a recognized compliance baseline for equipment intended for industrial use. Its design aligns with ABB’s ecosystem of all-compatible drives, supporting streamlined integration and regulatory alignment across multiple production sites.
By enabling variable speed control, the drive reduces energy consumption and improves process stability, which lowers operating costs and wear on motors. The compact footprint simplifies installation, reduces panel space and wiring complexity, and ABB’s support ecosystem helps minimize downtime and maintenance costs over the drive’s life cycle.
