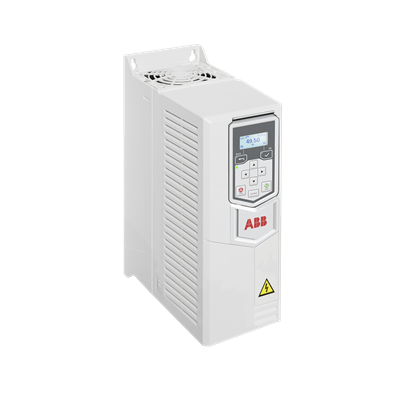

ABB ACS530-01-09A5-4 Drive - IP20 Wall-Mount Enclosure
Part Number: 3AXD50000747559
Quick Summary
ABB ACS530-01-09A5-4 drive controls motors for compressors, conveyors, and pumps. For engineers facing lengthy commissioning and frequent maintenance, built-in features simplify setup, tuning, and diagnostics. It ships with an IP20 wall-mount enclosure and rugged construction, making it suitable for light-industrial environments such as food and beverage, plastics, textile, and material handling. The basic control panel enables fast setup, commissioning, use, and maintenance, while the drive's robust design supports operation in challenging environments. By standardizing on this unit, manufacturers can reduce spare-parts inventories, shorten project timelines, and improve uptime while maintaining precise torque and speed for variable torque and simple torque applications.
Product Information
Extended Description
3AXD50000747559 ABB: The ACS530-01 can control your compressors, conveyors, pumps, centrifuges, fans, and many other variable and simple constant torque applications, in a variety of light industries, including food and beverage, plastic, textile, material handling, and agriculture. All essential features are built-in as standard, simplifying drive selection, and making additional hardware unnecessary. The basic control panel enable fast setup, commissioning, use, and maintenance, while a rugged and robust design make it a good fit for various environments. The wall-mounted ACS530-01 comes in an IP20 enclosure as standard.
Built-in basic control panel and fast setup reduce commissioning time and minimize on-site configuration, delivering quicker time-to-value for conveyors, pumps, and fans in light-industrial settings. All essential features are included as standard, simplifying drive selection and eliminating the need for additional hardware, which lowers BOM costs and reduces integration points on retrofit projects. IP20 protection with a wall-mounted enclosure provides rugged reliability in typical factory environments, reducing enclosure space needs and easing service access on packaging lines. The ACS530-01-09A5-4 can control compressors, conveyors, pumps, centrifuges, and fans, covering both variable torque and simple constant torque applications, enabling standardization across multiple lines. With built-in diagnostics and alarms, maintenance intervals improve and downtime decreases, while energy-efficient speed control supports sustainability goals and lower operating costs. The compact form factor and straightforward configuration support fast installation in existing panels, enabling plug-and-play integration with common ABB ACS530 ecosystems and reducing installation risk on new lines.
Get a Quick Quote for a ABB 3AXD50000747559
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000747559?
Enquire Now
FAQs
Begin by verifying motor compatibility (4 kW output, 9.4 A nominal current) and confirm suitable wiring for your control cabinet. Mount the drive in an IP20 wall enclosure, connect the supply and motor leads per the ACS530 wiring diagram, and configure basic parameters through the built-in control panel. Use the factory defaults as a baseline, then tune acceleration, deceleration, and torque settings for your load. Commission with any local safety interlocks and verify protection settings. This approach minimizes external hardware and reduces installation risk on retrofit or new-line projects.
The drive is rated for 4 kW output with an input current of 9.4 A and is housed in an IP20 wall-mount enclosure. It supports variable torque and simple constant torque applications, enabling efficient motor control for compressors, conveyors, pumps, centrifuges, and fans. While voltage and regional approvals vary, these specifications provide a solid basis for matching to typical light-industrial installations and single- or three-phase supply arrangements.
Yes. The ACS530-01-09A5-4 is designed to handle variable torque loads such as conveyors, compressors, and fans, enabling smooth speed control and energy efficiency. Its built-in control features support rapid commissioning, simplified tuning, and reliable operation, helping to reduce energy consumption and improve line balancing on packaging and material-handling systems.
This drive uses an IP20 protection rating for indoor, non-hazardous environments and is designed to meet general industry safety expectations. Regional certifications (such as CE, UL, or others) depend on local regulatory requirements; verify applicable approvals with your supplier or distributor. The IP20 rating provides a clear indication of protection level for typical factory floors and cabinet installations.
The drive consolidates essential control and protection into a single unit, reducing external hardware, wiring, and BOM complexity. Faster commissioning, built-in diagnostics, and alarms translate to shorter downtime, easier maintenance, and improved uptime. Over time, this can lower total cost of ownership by decreasing spare-parts needs and enabling standardized plant-wide control across conveyors, compressors, and pumps.
