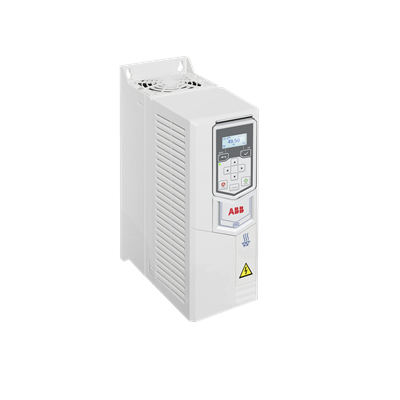

ABB 3AXD50000751945 LV AC wall-mounted drive - IP20
Part Number: 3AXD50000751945
Quick Summary
The LV AC wall-mounted drive delivers precise speed control for HVAC fans, pumps, and compressors. Many projects stall during commissioning or suffer energy waste due to suboptimal drive setup. The ACH531-based solution combines CE-compliant design, an IP20 enclosure, and IEC-aligned architecture to simplify integration in modern plant rooms. Built-in basic control features and optional Bluetooth enable fast startup, easy commissioning, and remote monitoring, reducing on-site labor. Designed for HVAC applications, it delivers measurable business value through improved energy efficiency, lower operating costs, and easier procurement and installation. This combination supports reliable operation in both normal and mission-critical HVAC scenarios.
Product Information
Extended Description
3AXD50000751945 ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
Integrated HVAC-focused control for fans, pumps, and compressors reduces system complexity and accelerates commissioning. By aligning speed profiles with load requirements, energy use drops and motor wear is minimized. In typical air handling units and cooling loops, this translates to measurable efficiency gains and improved process stability. IP20 enclosure and wall-mounting support simplify installation and reduce enclosure costs, allowing quick deployment in standard mechanical rooms and retrofit projects. Built-in basic control panel speeds startup and minimizes the need for external controllers, cutting wiring time and lowering total project cost. Optional Bluetooth enables remote commissioning and monitoring, reducing on-site service time and enabling proactive energy management across multiple sites. The 4 kW, 9.4 A rating ensures motor compatibility with common HVAC equipment while maintaining compact, space-efficient installations. This combination supports reliable operation in challenging environments and enhances overall system resilience.
Get a Quick Quote for a ABB 3AXD50000751945
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000751945?
Enquire Now
FAQs
Yes. The ACH531 LV AC wall-mounted drive is designed for common HVAC motors up to 4 kW and 9.4 A, compatible with IEC-based motor standards and standard wiring practices. It mounts on a wall inside protected spaces, reducing cabinet complexity. Built-in control features simplify integration with building management systems, decreasing wiring and installation time during retrofits or new installations.
The drive provides a 4 kW power rating with a 9.4 A current draw and IP20 enclosure for indoor installation. By enabling precise variable-speed control, it minimizes fan and pump energy use during part-load conditions, delivering measurable energy savings. Optional Bluetooth supports quicker commissioning and verification of performance, further enhancing efficiency gains during commissioning and operation.
Best suited for air handling units, chillers, fans, and pump trains in commercial and industrial HVAC. It delivers smooth speed control across fluctuating loads, reduces noise, and improves system stability. The wall-mounted, IP20-protected design makes it ideal for retrofit projects in occupied spaces where space and safety are critical.
The drive adheres to CE compliance and IEC-based standards, ensuring safe operation and compatibility with common electrical and EMC requirements. Its indoor IP20 enclosure provides reliable protection in standard plant rooms. These certifications support safer installations and easier regulatory alignment for HVAC projects.
ROI comes from faster commissioning, reduced wiring and cabinet complexity, and energy savings from variable-speed control. Remote monitoring via Bluetooth minimizes on-site service time, while the built-in panel lowers maintenance overhead. Routine checks focus on power electronics health and firmware updates, with long-term benefits including lower energy bills and improved system reliability.
