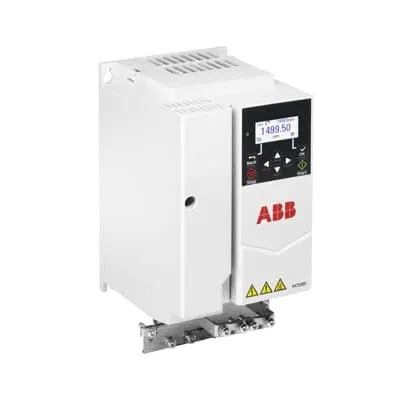

ABB 3AXD50000814008 LV AC drive module - ACS180-04S-12A2-1
Part Number: 3AXD50000814008
Quick Summary
ABB 3AXD50000814008 LV AC drive module delivers precise variable-speed control for pumps, fans, and conveyors. Engineers face startup transients and energy waste when upgrading legacy systems, and integration complexity can slow projects. This module is CE-compliant and sits within ABB’s all-compatible drives portfolio, sharing architecture and user interfaces to accelerate commissioning and long-term maintenance. Its compact, robust design supports seamless retrofit in space-constrained panels, while providing essential machinery application features embedded in a single package. By enabling smooth speed control and predictable torque, it delivers energy savings, reduced equipment wear, and faster return on investment, with familiar ABB engineering tools and diagnostics improving reliability across industrial processes.
Product Information
Extended Description
3AXD50000814008 ABB: The ACS180 is a compact, robust, and adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers.This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Feature: Compact, robust, and adaptable VSD design. Business Impact: Simplifies panel integration, reduces cabinet footprint, and enables scalable deployment across multiple line configurations. Application: Pumps, fans, conveyors, winders, and mixers in mid-size industrial plants. Feature: Embedded machinery-application features. Business Impact: Delivers essential control capabilities without add-on modules, lowering total cost of ownership and accelerating commissioning. Application: HVAC, material handling, and packaging lines where reliable ramping and torque management matter. Feature: Common architecture and UI with ABB all-compatible drives. Business Impact: Speeds up engineering, reduces training time, and minimizes operator error during maintenance. Application: OEM integrations and retrofits across existing control ecosystems. Feature: Energy-efficient motor control strategies. Business Impact: Lowers energy consumption and extends motor life, translating to measurable annual savings. Application: Pumps and fans in process and HVAC applications. Feature: Retrofit-friendly form factor for space-constrained panels. Business Impact: Reduces downtime and retrofit risk, enabling faster project completion. Application: Modernization of legacy machinery with minimal panel disruption. Industry Insight: ABB’s ACS180 family is widely adopted for compact, value-driven drive solutions, making this module a practical choice for small to mid-size automation projects.
Get a Quick Quote for a ABB 3AXD50000814008
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000814008?
Enquire Now
FAQs
The 3AXD50000814008 module is designed to align with ABB’s all-compatible drives architecture, using the same interface, configuration templates, and diagnostics as other ACS180 products. For retrofit, verify motor rating (3 kW) and current (12.2 A), ensure wiring is compatible with three-phase power, and align protection settings and ramp profiles to minimize downtime during swap.
Key specs include a 3 kW rated power and 12.2 A current, configured as ACS180-04S-12A2-1. These figures define the drive’s capacity for precise speed control, torque management, and smooth start/stop behavior. This supports efficient operation of pumps, fans, and conveyors, with potential energy savings and reduced mechanical wear in continuous-duty applications.
Yes. The module is explicitly designed for pumps, fans, compressors, conveyors, winders, and mixers, delivering reliable variable-speed control. It helps reduce energy consumption, minimizes mechanical stress from start/stop cycles, and integrates with ABB’s engineering tools for straightforward commissioning and ongoing maintenance in manufacturing and process environments.
The product is CE-compliant, aligning with European safety and EMC standards. When deploying in other regions, verify regional safety certifications (UL/IEC, local EMC standards) as required by your facility. ABB’s architecture also supports consistent diagnostics and software interfaces across the all-compatible drives family, aiding regulatory compliance and maintenance planning.
Maintenance benefits come from embedded machinery features, shared diagnostics, and the familiar ABB interface, reducing training and spare-parts complexity. ROI is driven by energy savings from precise speed control, reduced wear due to smoother starts, and faster commissioning in retrofits, enabling quicker project payback and improved process reliability.
