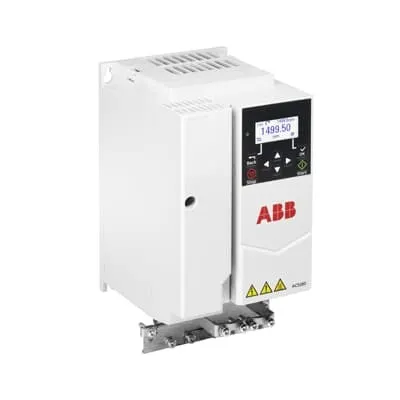

ABB 3AXD50000814046 Motors & Drives - 5.5 kW
Part Number: 3AXD50000814046
Quick Summary
3AXD50000814046 is a compact LV AC machinery drive module that provides variable speed control for pumps, fans, and conveyors. Engineers often face integration challenges and complex setups that slow commissioning. Typical certifications include CE conformity for European installations, UL/CSA safety listings for North American compliance, and robust IP protection for harsh environments. This ABB drive module leverages a common architecture and user interfaces across the all-compatible drives portfolio. The result is faster integration, easier maintenance, and lower total cost of ownership for motor control across multiple machines.
Product Information
Extended Description
3AXD50000814046 ABB: The ACS180 is a compact, robust, and adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers.This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Compact LV AC drive module design translates to shorter panel builds and easier field installation, reducing wiring complexity and labor costs. This translates to measurable business impact: faster commissioning and lower downtime during changes in line speed. In typical applications such as pumps and fans, the 5.5 kW rating with 12.6 A current supports precise speed control without over-sizing the motor. Shared architecture across ABB's all-compatible drives portfolio means technicians encounter a familiar user interface and programming workflow, minimizing training time and misconfiguration. The result is consistent motor control behavior across multiple machines, improving reliability in conveyors and winders. This compatibility supports scale-out projects and easier upgrades. Protection and diagnostics reduce unscheduled downtime and simplify maintenance scheduling. With easy parameterization and ramp control, engineers can meet energy-efficiency targets while avoiding abrupt starts that stress gear trains. Installation benefits include a compact footprint, robust wiring options, and ABB's standard interfaces for seamless integration with PLCs and HMIs. The VSD supports easy commissioning with consistent drives UI, parameter templates, and troubleshooting guides, helping teams meet project deadlines while maintaining regulatory compliance. This approach translates to reduced training needs and faster plant modernization across manufacturing sites, with industry-specific value in process automation. In multiple facilities, standardized ABB drive interfaces help deliver better uptime and predictable motor control in high-demand applications.
Get a Quick Quote for a ABB 3AXD50000814046
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000814046?
Enquire Now
FAQs
When replacing older drives, verify form factor compatibility with the ACS180 family, reuse common control interfaces and parameter templates, and ensure correct motor data and protection settings. Plan wiring for power, sensors, and PLC connections, then commission using ABB tools to minimize downtime and maintain consistent control behavior.
With a 5.5 kW rating and 12.6 A current, this drive enables precise speed control, reducing energy use and improving process stability for pumps and fans. Its compact footprint and shared UI simplify tuning, ramp profiles, and fault handling, delivering reliable motor control and lower lifecycle costs in HVAC and manufacturing processes.
Yes. The module supports configurable ramp times, torque control, and protection features that help maintain steady operation and reduce mechanical stress on conveyors and winders. Its ABB architecture ensures consistent performance across lines, making it appropriate for critical material handling applications where uptime matters.
Confirm CE conformity for European installations and verify UL/CSA listings and IP rating coverage relevant to your site. ABB documentation and local compliance teams can provide exact certification scope for your region and installation, ensuring regulatory alignment for industrial environments.
ROI comes from energy savings through efficient motor control, reduced wear from soft-starts, and quicker commissioning due to familiar interfaces. The drive offers built-in diagnostics and remote monitoring support, enabling proactive maintenance and minimizing unscheduled downtime while aligning with ABB’s broader service and spare-parts ecosystem.
