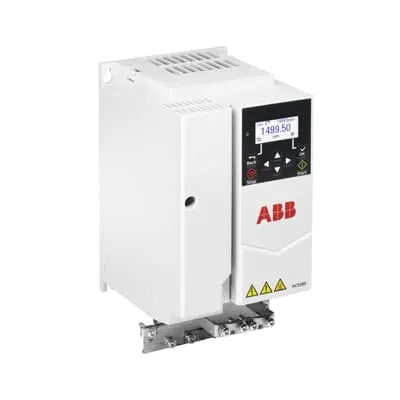

ABB 3AXD50000814176 ACS180-04S-17A0-4 - UL Pld 10 Hp
Part Number: 3AXD50000814176
Quick Summary
ACS180 drive is a compact variable speed drive (VSD) optimized for pumps, fans, and conveyors in industrial plants. When integrating new VSDs with legacy controls, customers often face configuration gaps and longer startup times. This ABB ACS180 model aligns with IEC standards for LV drives and is UL-listed for 460 V operation at 10 Hp, reinforcing safety and reliability. With a 7.5 kW, 400 V specification and ABB’s all-compatible drives portfolio, it delivers seamless compatibility, streamlined maintenance, and lower total cost of ownership.
Product Information
Extended Description
3AXD50000814176 ABB: The ACS180 is a compact and robust adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers. This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Feature: The ACS180 is a compact, robust VSD engineered for tight spaces and harsh environments, delivering reliable motor control in 7.5 kW class applications. Business Impact: Its small footprint and proven ABB build quality reduce panel space, thermal load, and field service time, driving higher uptime and lower maintenance costs. Application: Ideal for pumps, fans, conveyors, winders, and mixers across manufacturing and process plants. Feature: ABB all-compatible drives architecture provides a consistent software interface, diagnostics, and parameter sets across the portfolio. Business Impact: This compatibility minimizes training, accelerates project kick-off, and reduces spare-parts inventory, delivering lower total cost of ownership. Application: Suitable for multi-line facilities deploying ABB drives for pumps, fans, compressors, and conveyors. Feature: Rated 7.5 kW at 400 V with 17 A nominal current, plus UL-listed Pld 10 Hp at 460 V for international applications. Business Impact: Aligns with common motor ratings, enabling predictable performance, safer starts, and improved energy efficiency across load profiles. Application: Heavy-load pumps, HVAC fans, and process conveyors where precise speed control matters. Feature: 400 V and 460 V operation support in a single module, simplifying retrofits or expansions in plants with mixed voltage fleets. Business Impact: Reduces installation complexity, minimizes rewiring, and shortens commissioning cycles, helping projects stay on schedule. Application: Retrofit projects, plant expansions, and new installations in manufacturing, water treatment, and packaging lines. Feature: Embedded essential machinery features, including safe torque off, fault protection, and easy parameterization for fast start-up. Business Impact: Lowers risk, simplifies maintenance, and delivers faster time-to-value without extensive external hardware. Application: General machinery control on pumps, mixers, conveyors, and winders where robust protection matters.
Get a Quick Quote for a ABB 3AXD50000814176
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000814176?
Enquire Now
FAQs
The ACS180-04S-17A0-4 supports a 3-phase 400 V mains setup and is designed for straightforward panel installation. Verify the motor rating (7.5 kW / 17 A at 400 V) matches the drive, select proper circuit protection, and use ABB's common control interfaces to connect to PLCs or HMIs. Follow the user guide wiring diagrams to avoid miswiring and ensure safe commissioning.
Key specs include a 7.5 kW motor rating, 400 V three-phase input, 17 A nominal current, and UL listing for 10 Hp at 460 V. The drive supports typical VSD control features, including soft-start and protection functions, enabling stable operation across variable loads while maintaining electrical safety and reliability.
Yes. The 7.5 kW, 400 V drive is well-suited for pump and fan control in HVAC and water treatment scenarios. It provides precise speed control, energy efficiency, and robust protection, helping reduce energy costs, noise, and wear on mechanical components while integrating with standard ABB interfaces and plant controls.
The product is UL-listed with a 10 Hp capability at 460 V, indicating compliance with UL safety standards for motor drives. The data also references IEC LV drive compatibility for low-voltage systems. Note that explicit CE or IP ratings are not listed in the provided data; verify current certifications in the official datasheet before procurement.
Expected ROI comes from improved energy efficiency, reduced motor wear through soft-start functionality, and lower maintenance due to ABB’s common architecture across drives. The all-compatible interface simplifies training and spare-parts planning, accelerating commissioning and reducing downtime on multi-line plants adopting ABB drives.
