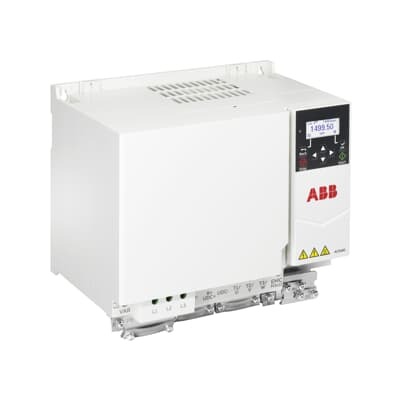

ABB 3AXD50000814411 Motors & Drives - UL Listed 22 kW
Part Number: 3AXD50000814411
Quick Summary
The ACS180 drive is a compact variable speed drive for pumps, fans, and conveyors. Engineers often face space constraints, complex wiring, and long commissioning times. UL-listed safety is built into the design, and ABB’s all-compatible drives portfolio shares architecture and consistent interfaces. This alignment reduces project risk and accelerates commissioning in modern automation projects. By combining reliable performance with easy integration, it supports energy-efficient, scalable motor control in a wide range of industrial applications. Whether upgrading legacy machinery or deploying new lines, the ACS180 delivers consistent control, diagnostics, and spare parts planning.
Product Information
Extended Description
3AXD50000814411 ABB: The ACS180 is a compact, robust, and adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers.
This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Feature: Compact, robust VSD design. Business Impact: Reduces cabinet footprint, simplifies wiring, and improves reliability in space-constrained installations. Application: Pumps, fans, and conveyors in HVAC, water treatment, and packaged systems benefit from fast installation and dependable motor control. Feature: 22 kW power rating at 400 V for medium-power drives. Business Impact: Delivers strong torque while maintaining energy efficiency and predictable response in dynamic loads. Application: Drives for centrifugal pumps, fans, and small conveyors across manufacturing and process industries. Feature: ABB all-compatible drives architecture. Business Impact: Keeps consistent user interfaces, reduces training time, and eases cross-drive programming in multi-drive plants. Application: Retrofit projects and new lines where engineers reuse familiar settings and templates. Feature: Quick commissioning with ready-made parameter templates. Business Impact: Shortens start-up time, minimizes commissioning risk, and accelerates time-to-value. Application: Pumps and fans in process control and HVAC systems. Feature: Built-in protection and reliability features. Business Impact: Protects motors from overcurrent, short-circuit, and thermal overload, lowering maintenance costs. Application: Winders, mixers, and conveyors in challenging environments.
Get a Quick Quote for a ABB 3AXD50000814411
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000814411?
Enquire Now
FAQs
The ACS180-04N-045A-4 is a compact low-voltage drive designed for 400 V systems. Plan for standard hard-wired inputs and standard motor connections, with a layout that minimizes cable length to the motor and protective devices. Ensure proper chassis mounting, adequate cooling, and access for parameter programming. The device shares ABB’s all-compatible UI, reducing wiring mistakes and commissioning time for maintenance teams.
Key specs include a 22 kW (Pn) power rating, 400 V nominal supply, and approximately 45 A current at full load. The unit is UL-listed for safety, and its architecture mirrors ABB’s broader drive family for consistent performance, diagnostics, and control across installations.
Yes. The ACS180 is purpose-built for pumps, fans, conveyors, and similar medium-power loads. Its variable speed control enables energy-efficient operation, soft-start to reduce mechanical stress, and precise flow or air handling. Its compact size and common ABB UI simplify deployment in retrofit projects and new-build automation.
The ACS180-04N-045A-4 carries UL-listed safety certification, supporting compliance in North American installations. Its ABB all-compatible architecture helps ensure consistent interfaces and predictable integration with existing ABB drives, easing cross-drive programming and maintenance across multi-drive systems.
Expect faster commissioning thanks to templates and a familiar interface, reduced wiring complexity, and improved motor protection. Energy-efficient speed control reduces energy consumption in variable load scenarios, while robust protection features lower maintenance costs by preventing overcurrent and thermal overload. Spare parts alignment within ABB’s drive ecosystem further optimizes lifecycle support.
