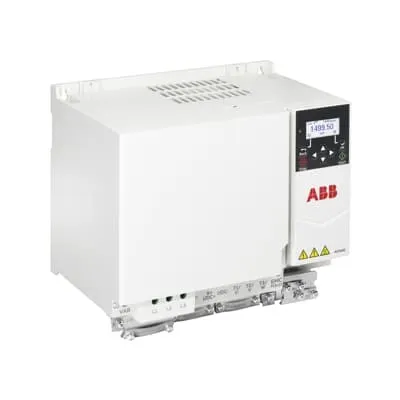

ABB 3AXD50000814435 LV AC drive module - 22 kW, 400 V
Part Number: 3AXD50000814435
Quick Summary
ABB ACS180 drives enable efficient variable-speed control for pumps and fans in a wide range of industrial applications. Customers often struggle with lengthy setup, inconsistent torque, and unplanned downtime that erode productivity and spike maintenance costs. UL listed for safety; CE-marked for international compliance; IP-rated protection helps keep electronics reliable in harsh environments. The ACS180 module ships with essential machinery features, a familiar ABB interface, and straightforward parameter migration across ABB’s all-compatible drive family. This combination reduces training time, accelerates project timelines, and delivers measurable savings in energy use, downtime, and total cost of ownership. By aligning with ABB's ecosystem, engineering teams can streamline integration with PLCs, HMI, and remote diagnostics for proactive maintenance.
Product Information
Extended Description
3AXD50000814435 ABB: The ACS180 is a compact and robust adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers. This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Feature: Compact, robust VSD with essential machinery features embedded. Business impact: Reduces panel footprint, simplifies installation, and improves reliability in space-constrained control cabinets. Application: Pumps, fans, conveyors, winders, and mixers in manufacturing and process lines. Feature: Shared, all-compatible drive architecture and a common user interface across ABB's drive portfolio. Business impact: Enables faster migration, lowers training costs, and ensures consistent parameterization across devices. Application: Seamless deployment in plants using ABB drives from motor control to PLC-based automation. Feature: Intuitive parameterization, fault protection, and built-in safety features. Business impact: Shorter commissioning times, safer operation, and extended motor life with smarter protection. Application: Start-up and operation of pumps and fans in water treatment, food and beverage, and packaging lines. Feature: 400 V main supply support with 22 kW IEC rating and UL-listed performance. Business impact: Clear specification matching, simplified purchasing, and validated safety compliance. Application: Industrial motors powering pumps, fans, conveyors, and process equipment in mixed voltage environments. Feature: Diagnostic capabilities, remote monitoring, and straightforward maintenance. Business impact: Reduced downtime through proactive fault detection and easier service planning. Application: Plant-wide automation, energy management, and OEM installations requiring reliable drive performance.
Get a Quick Quote for a ABB 3AXD50000814435
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000814435?
Enquire Now
FAQs
Install in a standard control panel using the common ABB interface shared with the all-compatible drive family. Connect to 400 V supply rated for 45 A, and configure parameters via the ACS180 UI. Transfer or reproduce existing motor control parameters, then perform a slow-speed ramp test to validate performance and protection features before full load operation.
Electrical ratings include 22 kW (IEC) with 45 A current at 400 V. UL specification reflects 30 Hp at 40 A and 460 V. These ratings support reliable control of industrial motors in pumps, fans, conveyors, and similar machinery.
Yes. The ACS180 3AXD50000814435 is designed for pumps, fans, conveyors, winders, and mixers, offering compact VSD functionality with ABB’s familiar interface to ease OEM integration and reduce commissioning time.
The module is UL listed for safety, supporting compliant installations in many regions. It is designed to align with international standards and ABB’s all-compatible drive ecosystem, facilitating integration with existing control systems.
Expect reduced downtime through built-in protection and remote diagnostics, lower training costs due to a common ABB interface, and energy efficiency gains from precise motor control. The result is faster project timelines and improved total cost of ownership across plant operations.
