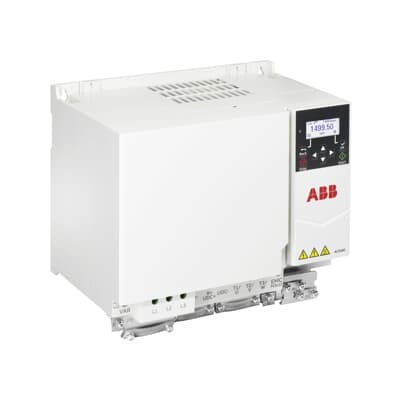

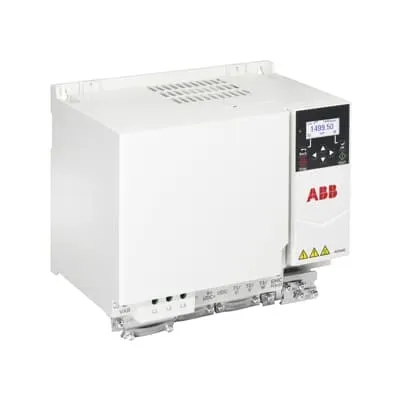

ABB 3AXD50000814473 Motors & Drives - ACS180-04N-038A-4
Part Number: 3AXD50000814473
Quick Summary
ABB 3AXD50000814473 Motors & Drives is a compact variable speed drive (VSD) designed for pumps, fans, conveyors, and mixers. This solution addresses the challenge of stitching together disparate drive interfaces across a plant floor by offering a single, familiar ABB platform. With UL listing and IEC-based power ratings, it supports safe operation and predictable performance in demanding environments. The ACS180 family provides a consistent architecture and user interface, enabling rapid setup and straightforward maintenance. By aligning with ABB's all-compatible drives portfolio, you gain scalable control, standardized diagnostics, and reduced total cost of ownership across automation projects.
Product Information
Extended Description
3AXD50000814473 ABB: The ACS180 is a compact, robust, and adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers.
This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Feature: The ACS180 module uses a compact, robust variable speed drive architecture designed for tight panels and challenging environments. This design reduces enclosure footprint and simplifies wiring, accelerating on-site commissioning and startup. Application wise, it is ideal for pumps, fans, conveyors, winders and mixers in manufacturing, processing, and utilities where precise speed control and reliable performance matter. Feature: ABB's all-compatible drives portfolio is built on a shared architecture and common user interface. Business impact: technicians can configure, monitor, and upgrade drives without retraining, cutting downtime and maintenance costs. Application: multi-drive systems on packaging lines, water/wastewater treatment, or material handling where consistent controls and diagnostics streamline operations. Feature: Power rating of 18.5 kW with 38.0 A at 400 V (IEC) and 34.0 A at 460 V (UL) enables broad motor compatibility. This enables global sourcing and precise torque control across regions. Application: pumps for process streams, cooling fans in HVAC, and conveyors with variable loads. Feature: Embedded essential machinery features deliver core functionality such as motor protection, safe torque off, and diagnostics without external add-ons. Impact: minimizes panel complexity, lowers total cost of ownership, and improves reliability. Application: conveyors, winders, mixers, compressors across power levels. Feature: Clear installation guidance and ABB compatibility support facilitate quick retrofits and new-install projects. Impact: shortens project timelines, ensures regulatory compliance, and improves serviceability. Application: retrofit of legacy lines and new automation cells across industrial facilities.
Get a Quick Quote for a ABB 3AXD50000814473
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000814473?
Enquire Now
FAQs
The ACS180-04N-038A-4 module is designed to integrate with ABB’s all-compatible drives portfolio. Begin with confirming supply voltage (IEC 400 V or UL 460 V variants), motor rating, and wiring for the LV drive. Use the shared ABB configuration wizard to align control interfaces, enable motor protection functions, and load the same diagnostics library used across other ABB drives. This minimizes training time and reduces commissioning risk on mixed-drive lines.
Key electrical specs include a power rating of 18.5 kW, IEC current of 38.0 A at 400 V, and UL current of 34.0 A at 460 V. The device is designed for LVAC machinery drives with compatible voltage variants, enabling consistent torque control and smooth speed ramping for pumps, fans, conveyors, winders, and mixers in mid-power applications.
Yes. The ACS180-04N-038A-4 is well suited for pumps and fans, including HVAC and process-line applications. Its compact form factor, embedded essential features, and compatibility with ABB’s drive ecosystem support reliable speed control, energy efficiency, and simplified integration into existing plant control schemes.
The drive carries UL listing for defined current and voltage conditions (UL: 34.0 A at 460 V) and IEC-based power ratings (18.5 kW). Its architecture is designed to align with ABB’s standards across the all-compatible drive portfolio, helping ensure safety, reliability, and regulatory alignment in global deployments.
By using a common ABB platform, maintenance teams benefit from unified diagnostics, familiar setup, and easier upgrades across multiple drives, reducing downtime. The energy-efficient VSD operation lowers operating costs for pumps and fans, while faster commissioning and seamless integration with existing ABB equipment shorten project timelines and improve overall ROI.
