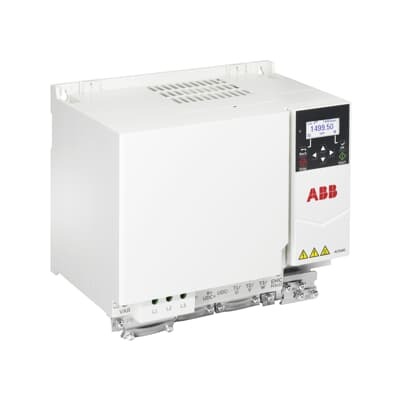

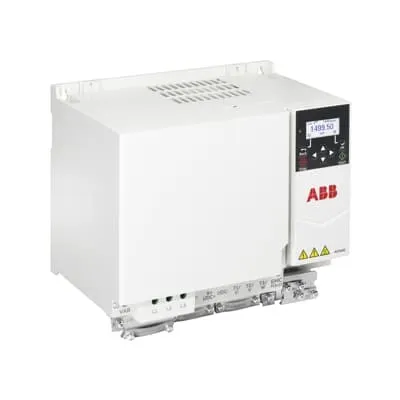

ABB 3AXD50000814497 LV AC Drive Module - 18.5 kW IEC/UL
Part Number: 3AXD50000814497
Quick Summary
ACS180 drive is a compact LV AC variable speed drive (VSD) module that provides precise speed control for pumps, fans, conveyors, winders and mixers. Engineers often face painful bottlenecks in setup, wiring, and integrating new VSDs with legacy controls, leading to downtime and project delays. This ABB solution is designed to reduce commissioning time with a familiar architecture shared across ABB’s all-compatible drives portfolio, and it supports IEC voltage classes and UL load ratings for reliable operation. By combining robust protection features with easy parameterization, it delivers predictable performance in demanding environments. For maintenance and procurement, the availability of standard interfaces and modular design translates to lower lifecycle costs and faster ROI for OEMs and end users in manufacturing and processing plants.
Product Information
Extended Description
3AXD50000814497 ABB: The ACS180 is a compact and robust adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers. This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Feature → Business Impact → Application: The ACS180 delivers a compact, robust VSD footprint that reduces panel space and simplifies wiring, enabling faster installation and freeing floor space for critical equipment. This translates to tangible cost savings in retrofit projects and new builds, while maintaining reliable motor control for pumps and fans in tight control cabinets. Feature → Business Impact → Application: Its shared ABB architecture across all-compatible drives means technicians can train once and scale across multiple drives, lowering training time and improving maintenance efficiency. Application includes mixed fleets in conveyors and material handling lines, where operator familiarity reduces commissioning time. Feature → Business Impact → Application: Pn 18.5 kW at 400 V and UL Pld 25 Hp at 460 V provide robust mid-range performance, supporting European and North American installations without custom solutions. Application: Pumps, compressors, winders, process lines. Feature → Business Impact → Application: Easy parameterization and standard interfaces minimize downtime during integration, allowing rapid commissioning and consistent control logic across machines. Application: OEMs delivering turnkey automation are supported by predictable setup. Feature → Business Impact → Application: The ACS180 includes essential protection features that reduce motor wear and system faults, improving uptime in harsh environments, such as manufacturing floors and HVAC networks. Application: Water treatment, food & beverage lines, and industrial processing.
Get a Quick Quote for a ABB 3AXD50000814497
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000814497?
Enquire Now
FAQs
The ACS180-04S-038A-4 LV AC drive module is designed to drop into existing ABB control architectures with familiar parameter sets and standard fieldbus interfaces. It supports three-phase 400 V operation and aligns with ABB’s all-compatible drives portfolio, enabling straightforward migration from older ABB drives. Ensure correct motor data, proper wiring, and protective device coordination to achieve safe, reliable commissioning.
Key specifications include 18.5 kW power output with 38 A current at 400 V, and UL-rated 25 Hp at 460 V. This supports mid-range motor control for pumps, fans, and conveyors while offering consistent performance across IEC configurations. The drive delivers smooth speed control, reliable torque characteristics, and robust protection to sustain demanding industrial loads.
Yes. The ACS180-04S-038A-4 is well-suited for pumps, fans, compressors, and conveyors common in process industries. Its 18.5 kW rating covers many mid-size motors, while its integrated protection features help manage start/stop transients and motor wear. Its ABB architecture also supports easy upgrades within existing automation ecosystems.
The ACS180 supports IEC voltage compatibility and a UL rating, aligning with European and North American regulatory expectations. This enables compliant operation across global facilities while reducing the need for bespoke mitigation measures during installation or audits.
Investing in the ACS180 typically yields faster commissioning and lower lifecycle costs due to a common interface across ABB drives, reduced training needs, and easier maintenance. The drive’s protection features mitigate motor faults, contributing to higher uptime and a faster return on investment in manufacturing and processing environments.
