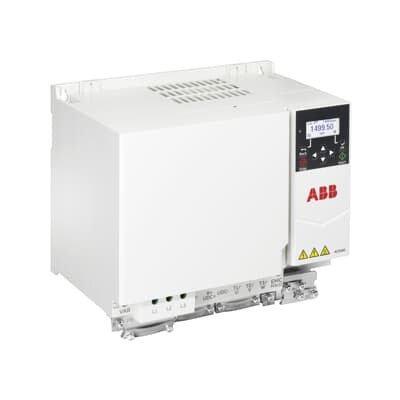

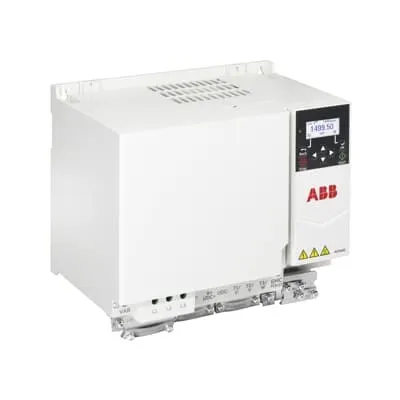

ABB 3AXD50000814510 LV AC Machinery Drive - 22 kW/50 A
Part Number: 3AXD50000814510
Quick Summary
The ABB ACS180 3AXD50000814510 LV AC machinery drive module provides compact variable speed control for pumps, fans, and conveyors. Engineers often grapple with complex setup and tight cabinet space when deploying VSDs. This ABB ACS180 module simplifies configuration with a consistent architecture and user interfaces across ABB's drive family, enabling quick commissioning and easier maintenance. ABB's drive portfolio typically supports CE safety compliance and offers enclosure options with robust protection to fit demanding environments, helping meet industry standards. This combination delivers energy efficiency, reduced motor wear, and predictable process performance, while enabling seamless integration with ABB's all-compatible drives portfolio, stocking common spare parts and accelerating staff training for broader automation projects.
Product Information
Extended Description
3AXD50000814510 ABB: The ACS180 is a compact, robust, and adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers.This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Compact chassis and a unified software interface reduce panel footprint and training time, translating to lower installation costs and faster commissioning. Engineers can configure motor control with familiar ABB wizards, minimizing tuning errors and downtime on pumps and HVAC fans. Embedded machine-application features such as safe torque off, integrated PID control, and closed-loop speed regulation support reliable operation without additional hardware. This simplifies wiring and reduces panel complexity for conveyors, mixers, and process lines. Because the ACS180 is part of ABB's all-compatible drives portfolio, the same architecture and diagnostics apply across models, enabling easy upgrades, common spare parts, and shorter training cycles. Energy efficiency is a core benefit; soft-start and precise speed control cut energy consumption and extend motor life, while minimizing mechanical stress. Addressing common objections, the module offers straightforward parameter mapping, consistent HMI, and robust protection options to meet regulatory and safety requirements in industries such as water treatment, packaging, and material handling. These capabilities translate into improved uptime, reduced maintenance costs, and a clearer path to scalable automation across multiple lines.
Get a Quick Quote for a ABB 3AXD50000814510
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000814510?
Enquire Now
FAQs
Ensure power is off, mount the unit on a standard DIN rail, then connect L, N, ground, and motor outputs per the ACS180 installation guide. Use the built-in wizard to set basic parameters and perform a controlled ramp start to verify proper motor operation.
Yes. The ACS180 shares ABB’s drive architecture and user interface, enabling straightforward parameter migration, unified diagnostics, and easier spares management when upgrading to higher-performance ABB VSDs.
The module delivers up to 22 kW of power with 50 A current capability, providing smooth start/stop, precise speed control, and energy-efficient operation that reduces motor wear across typical pump, fan, and conveyor applications.
The ACS180 family commonly supports CE safety compliance, with enclosure options offering robust protection; verify exact IP rating and SIL readiness per your specific installation and safety requirements.
Benefits include lower energy consumption through efficient speed control, reduced spare-parts inventory due to ABB compatibility, simplified maintenance with common diagnostics, and faster commissioning across multiple lines, which shortens time-to-value.
