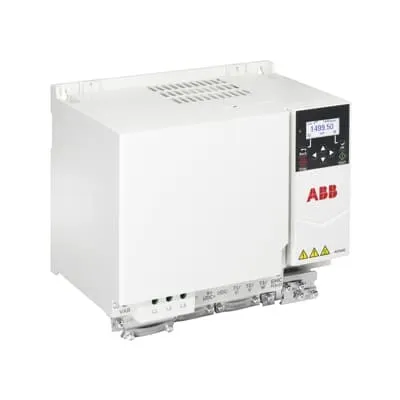

ABB 3AXD50000814558 LV AC Machinery Drive Module - UL 30 HP
Part Number: 3AXD50000814558
Quick Summary
LV AC machinery drive module provides precise variable speed control for pumps, fans, conveyors, and mixers. Engineers often face integration challenges, bulky setups, and inconsistent interfaces across drive families. Typical critical certifications for industrial drives include CE marking for global compliance, UL recognition for electrical safety, and IP ratings for protection in harsh environments. With ABB's ACS180 family, you gain a compact, easy-to-configure solution that scales across applications and reduces commissioning time.
Product Information
Extended Description
3AXD50000814558 ABB: The ACS180 is a compact and robust adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers. This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Feature: Compact, robust design reduces footprint and simplifies installation. Benefit: Saves valuable machine room space and lowers wiring complexity, enabling quicker deployment on packaging lines or processing equipment. Application: Ideal for space-constrained installations in conveyors and mixers where a durable VSD is required. Feature: Unified, user-friendly interface across ABB drives ensures a short learning curve. Benefit: Speeds up commissioning, minimizes operator training, and lowers total cost of ownership. Application: Suitable for cross-site rollout in multi-line manufacturing environments. Feature: 22 kW (IEC Pn) with 50 A input at 400 V and UL rating for 460 V (Pld 30 Hp, 42 A). Benefit: Delivers reliable motor control with scalable performance while meeting safety and energy requirements. Application: Pumps and fans in industrial facilities needing robust VSD performance. Feature: Built-in protection and diagnostics reduce downtime. Benefit: Early fault detection, easier maintenance planning, and improved asset reliability. Application: Winders, conveyors, and mixers in continuous process lines where uptime is critical. Feature: Compatibility with ABB all-compatible drives portfolio simplifies upgrades. Benefit: Smooth replacement and future-proofing without reengineering control logic. Application: Refurbishments or capacity expansions across existing ABB-based automation systems.
Get a Quick Quote for a ABB 3AXD50000814558
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000814558?
Enquire Now
FAQs
Yes. The drive module supports 400 V systems with a 22 kW (IEC Pn) rating and 50 A input. It is designed for straightforward wiring to 400 V three-phase networks and is engineered to integrate with ABB’s broader drive portfolio for consistent control logic and commissioning.
The unit provides precise speed control with a robust 22 kW output and 50 A input at 400 V, with compatibility to 460 V (UL: 30 Hp, 42 A). This enables smooth motor acceleration, energy savings, and improved process stability for pumps, fans, and conveyors in demanding applications.
ABB drives are designed for industrial use and align with common compliance expectations. While IP ratings and CE/UL certifications depend on the specific installation and local requirements, the ACS180 family is built to meet typical safety and performance standards, and ABB’s all-compatible drives philosophy supports interoperability across environments.
The ACS180 module shares the same architecture and user interfaces as ABB’s other drives, meaning technicians can leverage existing programming, diagnostics, and service procedures. This reduces training time, shortens commissioning, and simplifies upgrades within an ABB-powered automation stack.
By delivering precise motor control and energy-efficient speed regulation, the drive reduces energy consumption and mechanical wear, lowering operating costs. Built-in diagnostics support proactive maintenance, which decreases unscheduled downtime and extends asset life in pumps, fans, and conveyors.
