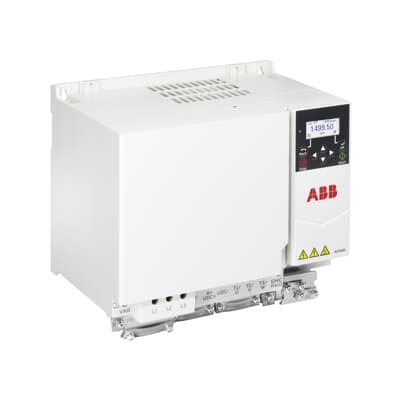

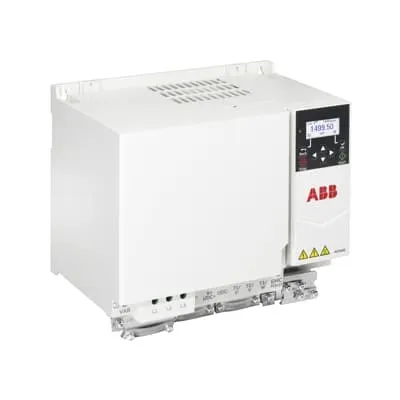

ABB 3AXD50000814589 ACS180 - 11 kW, 230 V
Part Number: 3AXD50000814589
Quick Summary
ACS180 LV drive module provides compact, variable-speed motor control for pumps, fans, conveyors, and mixers. Projects often stall on long setup times, inconsistent interfaces, and integration hiccups when mixing drives from different vendors. UL-listed and IEC-compliant, the ACS180 fits within ABB's all-compatible drives portfolio, ensuring consistent software, safety features, and support across equipment. By delivering familiar architecture and straightforward commissioning, it reduces engineering effort while enabling reliable, energy-efficient operation across industrial automation environments. Using this module, maintenance teams gain predictable performance and faster troubleshooting, translating into lower total cost of ownership for the factory.
Product Information
Extended Description
3AXD50000814589 ABB: The ACS180 is a compact and robust adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers. This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Feature: Compact, robust design enables space-saving installation and easy cabinet integration. Benefit: Reduces panel footprint and accelerates deployment in conveyor lines, pumps, and fans, delivering faster time-to-value in automated systems. Application: HVAC, water treatment, manufacturing lines. Feature: Intuitive commissioning with the same ABB drive interface as other ACS/ABB products. Benefit: Cuts engineering hours and minimizes training needs for technicians across multiple machines. Application: Retrofit projects and new equipment across mixed fleets. Feature: Pre-configured application profiles for pumps, fans, and conveyors. Benefit: Rapid tuning, improved process stability, and predictable performance with less risk of motor incompatibility. Application: Industrial automation and material handling. Feature: Robust protection and diagnostics built into the module. Benefit: Lower downtime and easier fault isolation, protecting critical processes in harsh environments. Application: Heavy-duty plants and continuous operation facilities. Feature: Compatibility with ABB all-compatible drives portfolio. Benefit: Simplified spare parts, unified maintenance, and streamlined upgrades. Application: Pan-plant integrations and multivendor-to-ABB transitions.
Get a Quick Quote for a ABB 3AXD50000814589
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000814589?
Enquire Now
FAQs
Install ACS180 as a compact, centralized control device within a suitable electrical cabinet, ensuring proper wiring to the 230 V supply and motor, plus the correct motor nameplate data matching the 11 kW / 48 A rating. Use the ABB interface for parameter transfer, and verify the UOP (user operation profile) settings to align with pumps, fans, or conveyors. Typical commissioning steps include safety checks, motor direction, and drive parameter tuning using the standard ABB software. The model’s compatibility with ABB’s all-compatible drives portfolio simplifies spare parts and future upgrades.
Key specs include a Pn of 11 kW with 48 A current at 230 V, suitable for 230 V three-phase systems. UL listing is indicated as Pld 15 Hp with 46.2 A at 208 V. These values define the drive’s capability to handle typical motor loads in pumps, fans, conveyors, winders, and mixers. When sizing, confirm motor nameplate data and short-circuit withstand, and ensure the power supply can sustain startup transients during acceleration and deceleration sequences.
Yes. The ACS180 is designed for pumps, fans, conveyors, winders, and mixers, offering reliable variable-speed control that improves process stability and energy efficiency. Its compact form and straightforward integration with ABB’s control ecosystem help factories optimize throughput while reducing noise, vibration, and electrical disturbances. For conveyors, the drive can manage acceleration profiles to minimize belt wear; for pumps and fans, it enables demand-driven operation and soft-start capabilities.
The ACS180 module is UL-listed and IEC-compatible, aligning with recognized safety and international standards commonly required in industrial facilities. This combination supports safer operation, easier regulatory alignment, and smoother integration with ABB’s broader family of drives. Always verify local compliance requirements and confirm any customer-specific certification needs during procurement and installation planning.
ACS180 provides a consistent interface and architecture across ABB’s drive portfolio, simplifying maintenance, training, and spare-part management. The rugged design and built-in diagnostics reduce unplanned downtime, while energy-efficient VSD operation lowers operating costs. ROI improves through faster commissioning, reduced engineering hours, and easier upgrades within the ABB ecosystem, ensuring long-term reliability for pumps, fans, conveyors, and other critical equipment.
