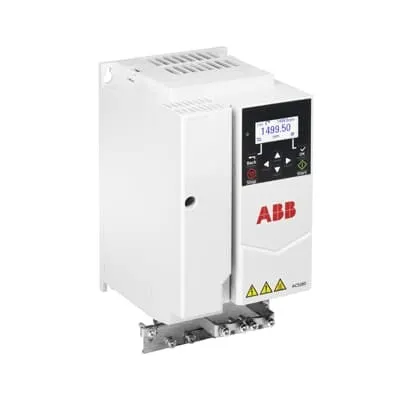

ABB 3AXD50000822225 LV AC Drive Module - 3 kW, 15.6 A
Part Number: 3AXD50000822225
Quick Summary
ACS180 LV AC machinery drive module delivers precise speed control for pumps, fans, and conveyors. Engineers often wrestle with complex setups, fragmented interfaces, and uneven fault diagnostics across legacy drives. This ABB drive family is designed to meet common European CE standards, offers safety-related features aligned with SIL practices, and comes in IP-rated enclosures for harsh environments. By integrating with ABB's all-compatible drives portfolio, it simplifies procurement, speeds commissioning, and drives energy efficiency across plant processes, delivering predictable maintenance and reduced operational risk for industrial automation projects. The result is a practical, reliable solution that supports scalable, cost-aware motor control in variable speed applications.
Product Information
Extended Description
3AXD50000822225 ABB: The ACS180 is a compact, robust, and adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers.This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Feature: Compact, robust VSD design with easy integration. Business Impact: Frees cabinet space, reduces wiring complexity, and speeds commissioning. Application: Suitable for new installations or retrofits on pumps, fans, and conveyors. Feature: All-compatible drives architecture within ABB’s portfolio. Business Impact: Simplified procurement, standardized training, and reduced operator error. Application: Multi-drive installations across packaging lines or process plants. Feature: Embedded machinery application features including integrated protection, diagnostics, and fault reporting. Business Impact: Improves reliability, lowers unplanned downtime, and streamlines maintenance planning. Application: Winders, mixers, and other continuous-process equipment. Feature: Easy setup and commissioning workflow. Business Impact: Shortens time-to-operation, lowers commissioning costs, and accelerates time-to-value. Application: New build-outs and factory-wide modernization programs. Feature: Energy-efficient speed control and robust control algorithms. Business Impact: Reduces energy consumption, extends motor life, and optimizes process control. Application: Pumps, fans, compressors, and HVAC systems. Feature: Compact footprint with practical installation advantages. Business Impact: Faster panel assembly, easier retrofits in tight spaces, and improved serviceability. Application: Industrial environments with space constraints and demanding duty cycles.
Get a Quick Quote for a ABB 3AXD50000822225
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000822225?
Enquire Now
FAQs
Begin by mounting the unit in a suitable panel, ensuring adequate ventilation. Connect power, motor, and control wiring according to the ACS180 wiring diagram, then configure the network and motor parameters using the standard ABB drive interface. Verify protective enclosures and perform a light commissioning run to confirm motor direction, torque limits, and safe-stop behavior. This approach minimizes commissioning time and reduces risk during first startup.
The drive module corresponds to a 3 kW, 15.6 A LV AC machinery drive, part of ABB’s ACS180 family. It is designed for compact installations and supports essential machinery features such as built-in protection and diagnostics. Applications primarily include pumps, fans, compressors, conveyors, winders, and mixers, with an emphasis on reliable speed control and straightforward setup.
Yes. The ACS180-based 3AXD50000822225 is optimized for pumps, fans, conveyors, and related equipment. Its compact footprint, robust protection features, and uniform user interface across ABB drives simplify integration in manufacturing lines, HVAC systems, and packaging or material handling applications, delivering precise speed control and improved process stability.
ABB ACS180 drives are designed to meet common industry standards, including CE marking for European compliance, safety features aligned with SIL practices for machinery safety, and enclosure protection appropriate for industrial environments (IP-rated). These certifications support regulatory compliance, safe operation, and reliable performance in harsh environments.
By delivering precise speed control and integrated diagnostics, the drive reduces energy consumption and minimizes unplanned downtime, translating to lower operating costs. Its compact install and standardized ABB interfaces shorten commissioning time, simplify maintenance planning, and extend motor life through soft-start and controlled acceleration, improving overall plant reliability and return on investment.
