ABB ACQ580-31 ULH Irrigation Drive - IEEE519 Compliant
Part Number: 3AXD50000865154
Quick Summary
Irrigation drives optimize pump performance by delivering precise motor control for irrigation systems. Engineers often struggle with energy waste, motor wear, and strict harmonic limits that complicate field operation. The ACQ580-31 ULH drive delivers IEEE 519 compliant harmonics, UL Type 1 (IP21) protection, and a unity power factor to reduce grid stress. This compact, field-ready solution simplifies installation and upgrades, enabling reliable irrigation control with minimal footprint. By combining robust protection with advanced software features, it supports efficient scheduling, flow management, and long-term operational savings for modern irrigation projects.
Product Information
Extended Description

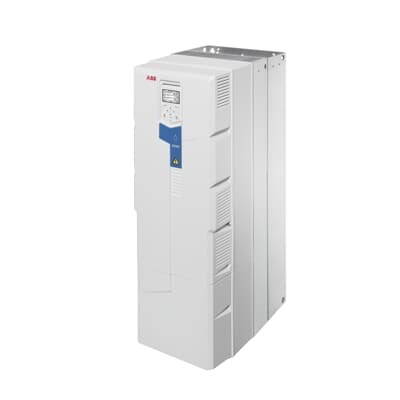

3AXD50000865154 ABB: The ACQ580-31 ultra-low harmonic (ULH) irrigation wall-mounted drive provides an unprecedented compact design that delivers unity power factor with a 3% or less THiD. By meeting the most stringent requirement of the IEEE519 recommendations, the ACQ580 ULH irrigation drive produces the least amount of harmonic distortion to reduce stress on electrical equipment. The ACQ580-31 irrigation wall-mounted drives are available from 40-150 HP at 460V 3-phase. The drives are available in UL Type 1 (IP21).=20
=20
The irrigation specific software is designed for irrigation applications, enabling easily programmed functions and protections. This innovative programming includes, quick ramps, level control, flow calculations, flow and pressure protection, dry pump protection, soft pipe fill, and others. These drives include fieldbus, I/O modules, and other options available for the ACQ580 irrigation packages.
Feature: Ultra-low harmonic design with unity power factor. Business Impact: Reduces THiD to 3% or less, protecting downstream equipment and lowering energy losses. Application: Ideal for irrigation pumping stations where electrical stress and regulator fines are concerns. Feature: 40 HP at 460 V three-phase in a wall-mounted, compact form. Business Impact: Saves cabinet space, lowers installation costs, and simplifies retrofits in constrained field environments. Application: Municipal and agricultural irrigation networks with limited space. Feature: Irrigation-specific software including quick ramps, level control, flow calculations, protection logic, and soft pipe fill. Business Impact: Improves process accuracy, reduces pump overshoot, and enhances plant uptime. Application: Precise irrigation scheduling and responsive pump protection in farms and greenhouses. Feature: Fieldbus and I/O modules available for seamless integration. Business Impact: Enables remote monitoring, scalable automation, and easier commissioning. Application: Industrial irrigation packages with plant-wide control systems. Feature: Comprehensive protections and compatibility with 3-phase, 460 V systems. Business Impact: Extends equipment life, lowers maintenance costs, and supports compliant operations. Application: Outdoor irrigation installations with demanding electrical environments.
Get a Quick Quote for a ABB 3AXD50000865154
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000865154?
Enquire Now
FAQs
For installation, plan a wall-mounted layout to maximize compact footprint in outdoor or sheltered enclosures. Ensure 460 V three-phase supply, proper wiring to the 52 A rated input, and space for fieldbus or I/O module integration. Use UL Type 1 IP21 protection as specified and verify ambient conditions meet the drive’s operating limits to maintain reliability and service life.
The ACQ580-31 ULH is designed to deliver THiD ≤ 3% with a unity power factor, aligning with IEEE519 recommendations. This minimizes harmonic distortion on the electrical network, reduces stress on transformers and switchgear, and helps ensure downstream equipment remains within regulatory limits while maintaining stable motor performance.
Yes. The drive supports 460 V three-phase systems and is rated for 40 HP in the model variant described, with current up to 52 A. It is designed specifically for irrigation applications, and ABB offers the same family in a range from 40 to 150 HP at 460 V to accommodate different pump sizes and flow requirements.
Maintenance should focus on regular inspection of cabling, fieldbus interfaces, and enclosure integrity for IP21-rated units. The ULH design provides robust protection and modular I/O options to simplify servicing. Use scheduled firmware updates, verify protective functions, and inspect heat dissipation components to sustain reliability in harsh irrigation environments.
Expect energy savings from a high unity power factor and low THiD, which reduce electrical losses and transformer loading. Improved pump control, protection against dry-run and surge events, plus easier integration with plant automation can lower maintenance costs and downtime, delivering a favorable return on investment in both agricultural and municipal irrigation projects.
