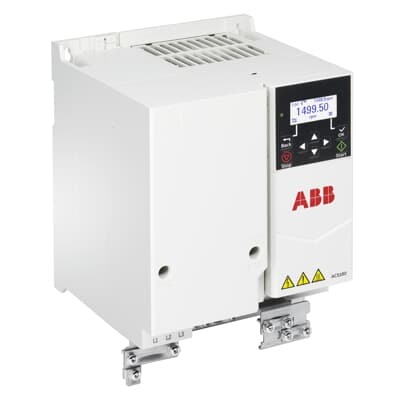

ABB 3AXD50000874316 ACS180 LV VSD - 15 kW/32 A/400 V
Part Number: 3AXD50000874316
Quick Summary
ACS180 LV VSD provides compact variable-speed drive control for pumps, fans and conveyors. Engineers often face integration complexity and limited panel space when deploying multiple drives, which can slow startup and increase wiring. UL-listed for safety, and aligned with ABB's all-compatible drives portfolio, the ACS180 generally supports reliable operation in harsh industrial environments; organizations should verify CE compliance and IP ratings on the specific variant for their region. In practice, this drive delivers energy efficiency and precise motor control, delivering lower operating costs and improved process reliability for HVAC, pumping and material handling applications.
Product Information
Extended Description
3AXD50000874316 ABB: The ACS180 is a compact and robust adaptable variable speed drive (VSD) for applications such as pumps, fans, compressors, conveyors, winders and mixers. This easy-to-use compact VSD offers excellent performance and quality at superior value with all essential machinery application features embedded. And as a member of ABB=E2=80=99s all-compatible drives portfolio, it shares the same architecture and user interfaces for ease of use.
Feature: Compact, robust VSD architecture built on ABB's all-compatible drive platform. Business Impact: simplifies installation and reduces panel footprint, wiring, and training time. Application: pumps, fans and conveyors in space-constrained control panels. Feature: Pn 15 kW, 32 A at 400 V input; UL: Pld 20 Hp, 27 A, 460 V. Business Impact: enables direct substitution for common motor sizes while maintaining safety compliance. Application: pumps, fans and compressors in industrial processes. Feature: Easy integration with ABB's all-compatible drives portfolio, same architecture and UI. Business Impact: minimizes cross-compatibility issues and shortens commissioning. Application: multi-drive installations in manufacturing lines. Feature: Embedded essential machinery features and a user interface aligned with ABB drives. Business Impact: reduces operator training, error rates, and startup time. Application: winders, mixers and material-handling equipment. Feature: Energy-efficient control with soft-start and regenerative options where available. Business Impact: lowers energy consumption and extends motor life, improving total cost of ownership. Application: pumps and fans across HVAC and process industries.
Get a Quick Quote for a ABB 3AXD50000874316
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000874316?
Enquire Now
FAQs
Installation starts with mounting the ACS180 in a standard enclosure, followed by wiring the supply, motor, and fieldbus connections per the installation manual. Ensure correct voltage (400 V), motor ratings (up to 15 kW), and proper protective devices. Use the ABB UI for quick parameterization, and verify motor protection settings, decoupling, and earth connections to minimize EMI and noise.
The unit supports a nominal power of 15 kW with a current rating of 32 A at 400 V input. For motor sizing, note the UL listing corresponding to 20 Hp and 27 A at 460 V as referenced for the ACS180 family. Use these figures to select compatible motors and protective devices, ensuring safe and reliable operation in your application.
Yes. The ACS180 is designed for pumps, fans and conveyors, delivering smooth speed control, energy efficiency, and simplified commissioning. Its compact footprint helps in restricted panels, and its architecture aligns with ABB’s drive ecosystem, enabling consistent configuration and diagnostics across multiple devices in HVAC and process applications.
The ACS180 variant described is UL-listed for safety. For regulatory compliance in your region, verify CE marking and IP ratings on the specific variant datasheet or product page. Certification availability can vary by market, motor, and enclosure requirements, so consult ABB documentation or your supplier to confirm applicable certifications before deployment.
Expected ROI stems from energy savings from efficient motor control, reduced wear due to soft-start and smoother speed transitions, and lower commissioning costs thanks to a consistent ABB interface. In practice, projects with pumps, fans, or conveyors typically realize shorter startup times, better process control, and lower total cost of ownership over the drive’s life cycle.
