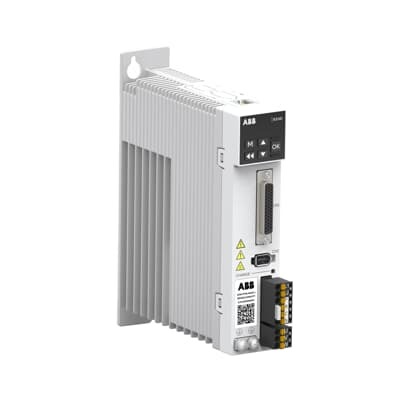

ABB 3AXD50000906550 LV AC servo drive - E530 PT/EC
Part Number: 3AXD50000906550
Quick Summary
ABB LV AC servo drive is a general-purpose motor drive for precise-positioning in automation. Engineers often confront wiring complexity and protocol mismatches when scaling motion control across multiple machines. This E530 family offers two variants, E530-PT and E530-EC, delivering flexible connectivity with PT supporting pulse train input and Modbus TCP/IP, and EC delivering EtherCAT. Typical certifications in industrial drives include CE marking and robust protection in IP-rated environments; confirm exact certifications in the product datasheet. This combination delivers reduced commissioning time and improved control reliability, while strengthening your automation strategy with scalable communication options and solid vendor support.
Product Information
Extended Description
3AXD50000906550 ABB: The E530 servo drive is a general-purpose servo drive. The drive has two variants, pulse train input (E530-PT) variant and EtherCAT (E530-EC) variant. The E530-PT servo drive supports the pulse train input, analog input and Modbus TCP/IP protocol, while the E530-EC servo drive supports the EtherCAT ptotocol. The flexible communication protocol ensures the connectivity between the drive and controller.
Feature: Dual-variant architecture with E530-PT and E530-EC. Benefit: Enables flexible connectivity and scalable deployment across simple and demanding control networks, reducing wiring complexity and installation time. Application: Ideal for mixed-architecture plants where some zones use pulse-train PLCs and others leverage EtherCAT for real-time control. Feature: PT variant with pulse train input, analog input, and Modbus TCP/IP. Benefit: Broad compatibility with legacy PLCs and modern control systems, enabling smooth retrofits and gradual migrations without replacing existing I/O. Application: Packaging lines and machine tools upgrading to digital control while preserving legacy interfaces. Feature: EC variant with EtherCAT support. Benefit: High-bandwidth, real-time communication for tight motion loops, improving positioning accuracy and cycle times. Application: Robotics, high-speed sorting, and precision assembly where fast feedback is critical. Feature: General-purpose 0.2 kW power rating. Benefit: Suitable for compact automation tasks with efficient performance, helping reduce energy consumption and cooling requirements. Application: Small to mid-size handling, lab automation, and CNC-related tasks where precise torque control matters. Feature: Flexible commissioning and connectivity options. Benefit: Simplifies installation with standard industrial protocols and remote monitoring, lowering total cost of ownership. Application: IT-ready shop floors and multi-brand automation environments where interoperability matters. Note: While this drive supports common industrial practices, verify your exact regulatory and safety requirements on the product datasheet and with your system integrator to ensure full compliance and proper integration.
Get a Quick Quote for a ABB 3AXD50000906550
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000906550?
Enquire Now
FAQs
Plan for the two available variants: E530-PT for pulse-train control and E530-EC for EtherCAT. Verify controller compatibility with pulse-train interfaces or EtherCAT I/O, ensure proper analog input wiring, and align your network topology with Modbus TCP/IP on PT or EtherCAT on EC. Factor in enclosure and cabling layouts to minimize noise and ensure reliable torque control in busy automation environments.
The drive provides a 0.2 kW power rating suitable for compact automation tasks. PT variant supports pulse train input, analog input, and Modbus TCP/IP, while EC supports EtherCAT for high-bandwidth real-time control. Assess motor speed, torque requirements, update rates, and how EtherCAT or Modbus TCP/IP will impact closed-loop tuning and cycle times in your application.
Yes, the E530 PT/EC variants cover common packaging and CNC use cases. Use E530-EC for high-speed, real-time control over EtherCAT networks to achieve tighter positioning and faster cycle times. For retrofits with legacy PLCs, the E530-PT with Modbus TCP/IP and analog inputs provides a smoother migration path without replacing existing I/O.
Check for CE marking as a baseline regulatory requirement for electrical equipment in many regions and confirm any industry-specific IP protection or safety standards applicable to your installation. Exact certifications and protective enclosures should be confirmed in the product data sheet and with your system integrator to ensure compliance for your environment.
The dual-variant approach reduces wiring and integration costs, while EtherCAT provides faster control loops that can improve throughput and reduce cycle times. Maintenance benefits include modularity and robust vendor support from ABB, which can lower downtime and extend service life. Consider total cost of ownership, energy efficiency, and the potential for future network upgrades when evaluating ROI.
