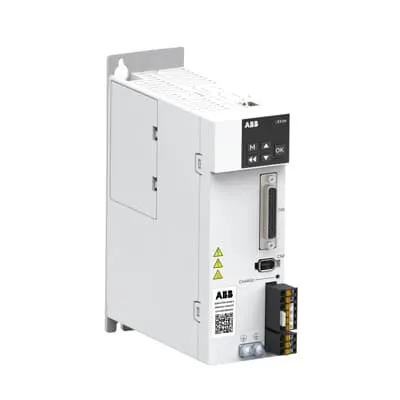

ABB 3AXD50000906581 LV AC Servo Drive - E530-PT/EC
Part Number: 3AXD50000906581
Quick Summary
ABB 3AXD50000906581 LV AC servo drive is a general‑purpose motion controller for precise automation. Engineers often struggle with integrating multiple communication protocols and tuning drives across subsystems, which slows commissioning and boosts risk. This device aligns with CE compliance, EMC expectations, and SIL-ready configurations, while IP enclosure considerations depend on your installation. By supporting both pulse train input and EtherCAT configurations, the E530 family minimizes integration friction and enables scalable control across plant floors, reducing lead times and total cost of ownership. In practice, this translates to faster line commissioning, easier retrofit projects, and improved motion accuracy through flexible networking and control strategies.
Product Information
Extended Description
3AXD50000906581 ABB: The E530 servo drive is a general-purpose servo drive. The drive has two variants, pulse train input (E530-PT) variant and EtherCAT (E530-EC) variant. The E530-PT servo drive supports the pulse train input, analog input and Modbus TCP/IP protocol, while the E530-EC servo drive supports the EtherCAT ptotocol. The flexible communication protocol ensures the connectivity between the drive and controller.
Feature: Flexible communication interfaces with two variants. Benefit: Simplifies integration and reduces wiring complexity, enabling faster commissioning and easier retrofit in legacy systems. Application: Suitable for packaging lines and conveyors where pulse train control or EtherCAT is required. Feature: 1 kW power with versatile input options. Benefit: Delivers robust torque for medium‑duty tasks while maintaining smooth velocity profiles to improve throughput. Application: Pick‑and‑place and small CNC modules demand precise torque control. Feature: Modbus TCP/IP on E530-PT and EtherCAT on E530-EC. Benefit: Enables seamless integration with common PLCs and HMI networks, reducing integration risk. Application: Industrial automation cells requiring fast process data exchange. Feature: Analog input support. Benefit: Improves closed‑loop tuning and servo feedback accuracy, yielding tighter position control. Application: Robotic grippers and feeder systems where precise line positioning matters. Feature: Installation and compatibility advantages. Benefit: Dual variants support legacy systems and modern networks, easing retrofits and expanding future upgrade paths. Application: Retrofits in packaging/automation lines where downtime must be minimized. Industry context: ABB’s E530 family is designed to meet industry expectations for scalable motion control, robust network support, and predictable commissioning times.
Get a Quick Quote for a ABB 3AXD50000906581
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000906581?
Enquire Now
FAQs
Begin with a full control system audit, verify PLC compatibility with Modbus TCP/IP or EtherCAT, and map I/O requirements. Select the E530-PT for pulse train or Modbus connectivity, or the E530-EC for EtherCAT networks. Use ABB’s installation guidelines to align cable routing, shielded cabling, and motor feedback wiring. Validate commissioning with a staged driver parameter set, then perform a phased ramp and test cycle to minimize downtime.
The E530 family provides 1 kW of continuous power with torque control suitable for medium‑duty automation tasks. E530-PT supports pulse train input, analog input, and Modbus TCP/IP, while E530-EC supports EtherCAT for high‑speed network communication. Both variants enable precise velocity and position control with compatible feedback devices and safe torque/off features per standard industrial practice.
E530-PT is ideal when legacy PLCs use pulse train interfaces or Modbus TCP/IP for simple network integration. E530-EC suits high‑throughput cells requiring fast, deterministic EtherCAT communication and tight synchronization. Packaging lines, conveyors, and pick‑and‑place systems stand to gain from the appropriate variant, depending on existing control architecture and network topology.
Industrial ABB drives typically conform to CE for safety and EMC, with IP‑rated enclosure considerations based on the installation environment. SIL readiness is commonly supported in configurations intended for higher integrity safety systems. Always verify the specific product datasheet and installation environment to confirm the exact certifications applicable to your chassis and region.
ROI comes from reduced commissioning time, easier retrofits, and improved motion precision, which lowers scrap and downtime. Maintenance is straightforward: monitor motor current, verify feedback alignment, and ensure network integrity (Modbus TCP/IP or EtherCAT). Keeping firmware updated and applying proper electrical protections helps sustain performance and extend service life.
