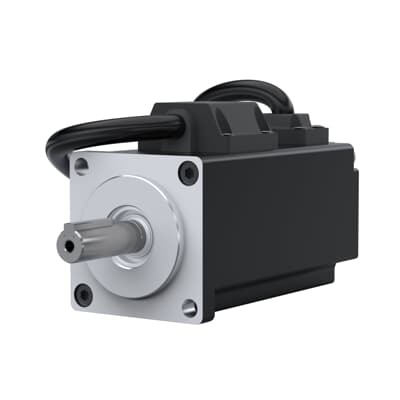

ABB 3AXD50000915224 Servo Motor - 5-Pole Design
Part Number: 3AXD50000915224
Quick Summary
ABB 3AXD50000915224 servo motor is a high-performance LV AC motor designed for precise positioning in automation systems. Engineers face challenges with cogging torque, drive compatibility, and limited space in compact machinery, which can throttle throughput. Certification data such as CE, SIL, or IP ratings are not listed in the provided data; confirm with ABB for your safety and regulatory requirements. With compatibility to the E530 servo drive and optional brake, oil seal, and encoder configurations, this motor delivers flexible installation. Its 5-pole-pair construction reduces cogging torque and enables smoother motion, while the compact form supports scalable automation across robotics, packaging, and machine tools.
Product Information
Extended Description
3AXD50000915224 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature → Business Impact → Application: The motor operates at 0.05 kW and 220 V, delivering precise, low-energy motion suitable for compact automation cells, reducing energy costs while maintaining tight control of positioning. In practice, this means improved repeatability on small conveyors and pick-and-place tasks, with faster commissioning and fewer tuning iterations. Feature → Business Impact → Application: The 5-pole-pair design significantly reduces cogging torque, yielding smoother startup and braking profiles, which translates to higher throughput and fewer mechanical wear issues on high-precision packaging and CNC tooling. Feature → Business Impact → Application: Compatibility with the E530 servo drive enables seamless integration into ABB’s drive ecosystem, simplifying wiring, diagnostics, and maintenance across multiple machines. Feature → Business Impact → Application: Brake, oil seal, and encoder type options provide installation flexibility for harsh environments, wet locations, and varying control strategies, lowering total cost of ownership. Feature → Business Impact → Application: The 220 V LV AC rating aligns with standard industrial mains, enabling quick retrofits and low-voltage safety compliance while preserving performance margins for motion-control tasks.
Get a Quick Quote for a ABB 3AXD50000915224
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000915224?
Enquire Now
FAQs
Yes, this motor is designed for use with ABB’s E530 servo drive, enabling straightforward integration into an E-system with common ABB cabling practices. Wiring considerations include standard LV AC power at 220 V, plus encoder type options for feedback and a potential brake or oil seal accessory. For precise wiring diagrams and option configurations, consult the official ABB installation guide or your ABB representative to ensure correct pinouts and safety clearances.
The DSM04L-0KWA-302-S1BA0 based motor offers a nominal power of 0.05 kW and a rated torque of 0.16 N·m, optimized for compact automation tasks. With a 5-pole-pair construction, you gain reduced cogging torque for smoother motion, which improves positioning accuracy at low speeds and during acceleration. In practice, this supports consistent performance in small tooling, packaging lines, and precise conveyor applications.
Yes, the ABB DSM-series motor is well-suited for precise, low-to-mid power motion in CNC, robotics, and packaging contexts. Its LV 220 V rating and 5-pole design deliver smooth, repeatable movements, while the E530 drive compatibility simplifies control across multiple machines. The available brake, oil seal, and encoder options further tailor the solution for demanding environments and tight integration requirements.
The provided data does not list specific certifications such as CE, SIL, or IP ratings. Before deployment, verify with ABB or your local distributor to confirm regulatory compliance for your region and application. Ensure you adopt appropriate safety measures, enclosure ratings, and integration practices according to your facility standards and the machine’s risk assessment.
Key benefits include a compact form factor with a 5-pole-pair design that reduces cogging torque, improving uptime and reducing tuning time. Brake, oil seal, and encoder options offer extended service life in challenging environments, while E530 drive compatibility simplifies diagnostics and maintenance. Together, these factors can lower downtime, improve mean time between failures, and shorten payback in automated lines.
