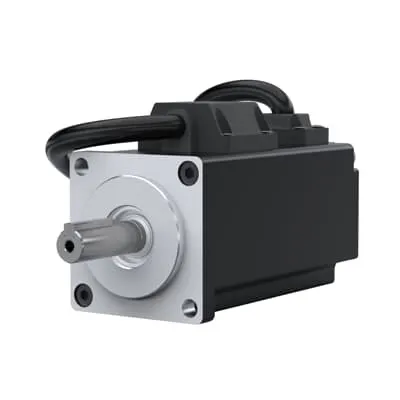

ABB 3AXD50000915286 DSM servo motor - 5 pole-pairs design
Part Number: 3AXD50000915286
Quick Summary
ABB 3AXD50000915286 DSM servo motor is a high-performance LV AC servo motor designed for precise motion control in automation systems. Engineers often confront torque ripple, space constraints, and integration complexity when upgrading drives. This motor supports reliability with options such as brake, oil seal, and multiple encoder types, and its 5-pole-pairs design helps reduce cogging torque for smoother operation. CE marking and IP ratings are commonly expected in industrial environments, with SIL considerations in safety-critical applications. Coupled with E530 drive compatibility, it delivers tangible business value through improved uptime, repeatable positioning, and scalable integration in existing lines and new-build applications.
Product Information
Extended Description
3AXD50000915286 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature: 5-pole-pairs design reduces cogging torque and enables a compact footprint. Business Impact: Smoother motion, better positioning accuracy, and smaller motor length translate to higher throughput and easier cabinet integration. Application: Ideal for precision pick-and-place, robotic guidance, and packaging lines where tight tolerances matter. Feature: Compatibility with the E530 servo drive. Business Impact: Streamlined control architecture, faster parameter tuning, and reliable performance with a proven drive family. Application: Retrofit projects and new installations across conveyor systems and automated cells. Feature: Encoder options and configurable feedback. Business Impact: Enhanced closed-loop accuracy, fault-detection capabilities, and flexible integration with various control schemes. Application: Robotics, CNC-like tasks, and high-precision automation requiring robust feedback. Feature: Brake, oil seal, and accessory options. Business Impact: Improved safety during power loss, contamination protection, and extended service life in harsh environments. Application: Heavy-duty or dirty production areas, medical devices, and research equipment. Feature: Nominal power of 0.1 kW at 220 V. Business Impact: Energy-efficient operation aligned with standard industrial mains and reduced energy costs. Application: Small-to-mid size machines, auxiliary axes, and compact automation cells. Feature: Compact mechanical design. Business Impact: Space savings and easier retrofits, enabling modern motion control without major enclosure redesigns. Application: Tight installations in existing lines and integrated machine tools.
Get a Quick Quote for a ABB 3AXD50000915286
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000915286?
Enquire Now
FAQs
Begin by confirming supply is 220 V and the drive is configured for LV AC servo operation. Wire the motor to the E530 according to the servo wiring diagram, select the encoder feedback type, and enable the brake/oil seal options if required. Parameterize torque, speed, and acceleration profiles in the E530, then perform a motor alignment and test run at low speed before ramping up to production speeds.
The motor is a 0.1 kW (Pn) LV AC servo with a nominal torque of 0.32 N·m (Tn) and operates at 220 V. It is configured with five pole-pairs, enabling a compact design and reduced cogging. It supports encoder options and optional brake and oil seal features, suitable for flexible integration across automation tasks.
Yes, when paired with the E530 drive, the 5-pole-pairs design helps minimize cogging torque for smoother acceleration and positioning at higher speeds. The compact form factor eases retrofits in tight packaging equipment, and encoder options provide robust feedback to maintain precision during rapid cycles and repetitive motions.
Industrial servo motors like this ABB unit commonly align with CE marking for safety, functional safety standards including SIL considerations in appropriate configurations, and general enclosure protection guidelines (IP ratings). Verify the specific certification scope with the supplier based on your region and application to ensure full regulatory compliance.
The motor’s configurable brake and oil seal options support safer operation and reduced contamination risk, while encoder flexibility improves diagnostic visibility and control accuracy. The combination of reduced cogging, compact design, and drive compatibility lowers commissioning time and downtime, delivering lower total cost of ownership and faster return on investment in automation projects.
