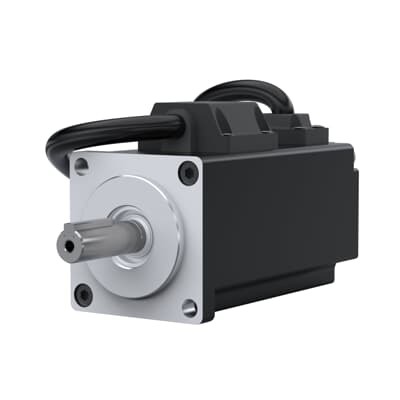

ABB DSM04L-0KW1-302-S1BA0 LV AC servo motor - 5 pole-pairs
Part Number: 3AXD50000915309
Quick Summary
ABB DSM04L-0KW1-302-S1BA0 LV AC servo motor is a high-performance motion-control solution for precision automation. Engineers often struggle with cogging torque, torque ripple, and challenging integration when upgrading legacy servo systems. This family commonly aligns with CE certification and offers encoder options plus brake and oil-seal configurations to protect critical equipment, with SIL compatibility and IP-rated variants available. Its 5 pole-pairs design keeps the structure compact while reducing cogging, enabling smoother positioning at 0.1 kW and 220 V. Coupled with ABB's E530 servo drive, it supports streamlined wiring, scalable control, and faster time-to-value for manufacturing lines.
Product Information
Extended Description
3AXD50000915309 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
The 5 pole-pairs design reduces cogging torque, delivering smoother torque transitions and tighter positioning tolerance. This translates to fewer mechanical adjustments, less vibration, and higher repeatability across high-speed packaging lines and robotic pick-and-place systems. In practice, operators notice steadier motion at low speeds and more consistent cycle times, even when small positional changes are required in tight automation cells. The motor’s compatibility with the E530 servo drive enables straightforward integration, unified diagnostics, and consistent performance across a production line. Users benefit from reduced commissioning time, easier maintenance, and scalable control for future upgrades. Brake, oil-seal, and encoder options provide configurable protection and feedback, supporting safer operation and higher-quality product handling in conveyors and robotic systems. The compact, low-voltage design translates to space-saving installations and simpler retrofits in existing machinery, delivering lower total cost of ownership without compromising precision.
Get a Quick Quote for a ABB 3AXD50000915309
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000915309?
Enquire Now
FAQs
Begin with mounting the motor to the selected frame, align the shaft, and secure encoders if configured. Connect power to 220 V, wire the encoder feedback to the drive, and attach any brake or oil-seal accessories as required. Configure the E530 drive for closed-loop control, perform motor tuning, and verify safe-stop and protection settings. Typical commissioning includes encoder index alignment, gain scheduling, and validation of position accuracy across the travel range.
Key factors are the 0.1 kW power rating, 0.32 N·m torque, 220 V operation, and a 5 pole-pairs design that minimizes cogging torque. These features yield smoother torque curves, tighter repeatability, and better speed stability across demanding cycles. When paired with appropriate encoder options, it delivers reliable feedback and repeatable positioning essential for robotics, packaging, and CNC applications.
Yes. The DSM04L-0KW1-302-S1BA0 is designed to work with ABB’s E530 servo drive, enabling cohesive control, diagnostics, and protection within ABB’s automation ecosystem. For PLC-based systems, the motor’s encoder feedback and drive integration support menu-driven configuration, enabling straightforward parameterization, safe-start sequencing, and scalable control across automated lines.
You can expect CE compliance as a baseline for European markets, with configurations offering protective IP-rated variants and encoder feedback options. While SIL compatibility depends on the drive system and safety architecture chosen, using a certified servo drive like E530 helps achieve aligned safety performance for automated equipment in compliant facilities.
The motor’s smooth torque and encoder options reduce cycle-to-cycle variance, lowering scrap and rework. Its compact design eases retrofit, saving enclosure space and installation time. With reliable E530 drive integration, ongoing maintenance is simplified through unified diagnostics, reducing downtime and enabling faster deployment of upgrades while improving overall equipment effectiveness (OEE).
