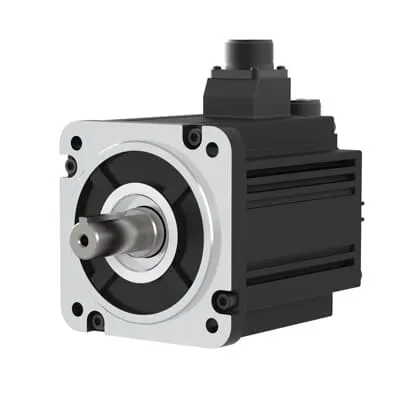

ABB DSM13M-1KW5-202-S2NA0 Servo Motor - 5 Pole-Pairs Design
Part Number: 3AXD50000915804
Quick Summary
ABB DSM13M-1KW5-202-S2NA0 servo motor delivers precise motion control for automation and CNC applications. Engineers often struggle with cogging torque, drive compatibility, and lengthy setup times when upgrading systems. This motor is designed to address those challenges with a compact 5 pole-pairs configuration that reduces cogging and a range of encoder and seal options to fit varied environments. It is designed to meet CE safety standards and, where applicable, IP-rated variants are available to suit harsh environments, and it supports SIL-capable safety networks when paired with compatible safety options. It integrates with ABB’s E530 servo drive ecosystem for streamlined commissioning. With flexible encoder types and optional brake or oil seal, it delivers reliable performance while enabling faster time-to-value and lower total cost of ownership for high-precision machines.
Product Information
Extended Description
3AXD50000915804 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature: 5 pole-pairs design reduces cogging torque. Business impact: smoother, more repeatable motion and higher positional accuracy in high-speed cycles. Application: CNC machines, robotics cells, and servo-controlled pick-and-place lines. Feature: Flexible encoder options and optional brake/oil seal. Business impact: adaptable to cleanroom to harsh-environment installations with reduced maintenance and downtime. Application: packaging lines and automated assembly where environmental exposure varies. Feature: Compatibility with E530 servo drive. Business impact: simplified commissioning and unified control strategy, lowering installation time and training costs. Application: turnkey automation projects and retrofit shops. Feature: 220 V LV AC supply with 1.5 kW output and 7.16 N·m torque. Business impact: efficient power usage with strong torque at low voltage, enabling compact drive trains and energy efficiency targets. Application: space-constrained machine tools and automated production lines. Feature: Compact, high-density motor design with robust mechanical options. Business impact: saves panel space, reduces cabling complexity, and enables flexible system layout. Application: machine tools, robotics, and packaging equipment where footprint matters.
Get a Quick Quote for a ABB 3AXD50000915804
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000915804?
Enquire Now
FAQs
ABB DSM13M-1KW5-202-S2NA0 is designed to integrate smoothly with ABB’s E530 servo drive. For reliable installation, verify encoder type options match your control loop, ensure correct wiring to the drive, and align motor shaft and gearbox to minimize misalignment. Pre-configure motor parameters in the drive software and perform a low-speed test run to confirm smooth acceleration and deceleration profiles before full production.
Key specifications include a power rating of 1.5 kW, an output torque of 7.16 N·m, a supply voltage of 220 V, and a 5 pole-pair design. The motor targets high-precision motion with reduced cogging torque, enabling consistent positioning. It is intended for LV AC servo applications and is compatible with E530 drives to simplify control loops and tuning.
Yes. The 5 pole-pairs design reduces cogging torque, which improves smoothness and precision critical in packaging and CNC workflows. Combined with encoder options and optional brake/oil seal, the motor supports demanding cycles, tight tolerances, and reliable operation in repetitive motion tasks. Its compatibility with the E530 drive enables streamlined control and repeatable performance across production lines.
The motor is designed to meet CE safety standards and offers IP-rated variants where applicable to suit different environments. When integrated with suitable safety options, it can support SIL-capable safety networks. For regulated environments, confirm your installation complies with local electrical standards and ensure the drive and safety interlocks are properly configured.
Maintenance is typically reduced due to robust design options like brake and oil seal variants, and flexible encoder choices that support long service life. The integration with the E530 drive and compact form factor shorten commissioning and downtime, delivering faster time-to-value and a lower total cost of ownership through improved uptime and consistent motion quality.
