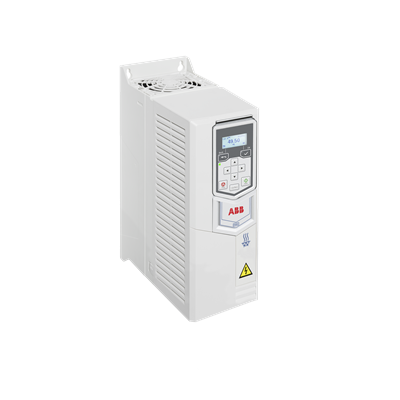

ABB ACH531-01-05A7-4+X1663 LV AC Drive - IP20
Part Number: 3AXD50000940769
Quick Summary
The ABB ACH531-01-05A7-4+X1663 is a low-voltage AC drive designed for HVAC systems. Installers and operators often struggle with lengthy startup and challenging commissioning, which this drive helps minimize through built-in control. Considerations include IP20 protection for indoor wall installations and CE conformity for EU markets, with SIL-related safety guidelines as a broader benchmark. This solution supports rapid commissioning, energy-efficient operation, and remote monitoring—delivering measurable business value for facilities managers and OEMs. Designed for HVAC environments including air-handling units and chillers, it supports simple integration with existing sensors and control systems.
Product Information
Extended Description
3AXD50000940769 ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
Feature: Built-in control for fans, pumps, and compressors enables centralized, single-drive management of HVAC loads, reducing external controller complexity and streamlining alarm handling. Business Impact: This tight integration reduces installation time and simplifies startup, cutting labor costs, minimizing commissioning risk, and improving project predictability. Application: Use ACH531-01-05A7-4+X1663 to intelligently modulate airflow, pumping, and cooling loads in air-handling units, chillers, and other HVAC equipment, ensuring stable operation across varying loads. Feature: IP20 enclosure and wall-mount design simplify installation in HVAC closets and service rooms, reducing clearance requirements and enabling neater wiring layouts. Business Impact: Reduces enclosure footprint, minimizes wiring, lowers installation risk, and accelerates site acceptance testing. Application: Suitable for new builds and retrofit projects where a compact, durable drive is required for indoor wall mounting of AHU fans, pumps, and compact HVAC equipment in constrained mechanical rooms. Feature: Built-in startup and commissioning tools streamline configuration, enabling auto-tuning routines and sensor checks for quick setup. Business Impact: Shortens time-to-operational readiness, lowers misconfiguration risk, and improves technician confidence during migrations. Application: Effective for field starts in mechanical rooms, data centers, and commercial buildings where downtime is costly and rapid ramp-up is essential. Feature: Bluetooth capability (optional) enables remote commissioning and ongoing monitoring without direct site visits. Business Impact: Improves maintenance planning, reduces on-site visits, supports proactive fault detection, and enables centralized fleet management across multiple sites. Application: Useful for distributed facilities or OEM installations across multiple campuses where centralized control improves service continuity. Feature: Energy-efficient operation with smooth control for variable-speed loads delivers steady torque and reduced surge. Business Impact: Lowers energy consumption and operating costs while maintaining system performance, reliability, and load-responsive behavior. Application: Critical for HVAC loops, air-handling units, and chillers that require precise speed control to meet indoor air quality and occupant comfort targets across varying building zones.
Get a Quick Quote for a ABB 3AXD50000940769
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000940769?
Enquire Now
FAQs
Install ACH531-01-05A7-4+X1663 as a wall-mounted, IP20-rated LV drive near the equipment it controls. It is compatible with HVAC components such as fans, pumps, compressors, air-handling units, and chillers. The built-in control panel supports simple startup and commissioning, reducing wiring and configuration time while ensuring stable operation across load changes.
The drive provides 2.2 kW of power with a 5.6 A current rating and comes in an IP20, wall-mounted enclosure designed for indoor HVAC installations. It is a low-voltage AC drive with built-in control features and the option for Bluetooth-enabled remote commissioning, suitable for fans, pumps, and compressors in HVAC systems.
Yes. The ACH531-01-05A7-4+X1663 is designed to control variable-speed fans, pumps, and compressors typical of air-handling units and chillers. Its built-in control capabilities support smooth operation across varying loads, while the IP20 wall-mount enclosure simplifies indoor installations in mechanical rooms and HVAC closets.
For compliance, consider IP ratings and market-specific certifications. The ACH531-01-05A7-4+X1663 features an IP20 enclosure suitable for indoor HVAC installations. In European markets, CE conformity is commonly required, and SIL considerations are part of safety guidelines for drive systems, providing a framework for safe, reliable operation.
ROI comes from reduced installation time, lower commissioning costs, and energy savings from efficient motor control. The optional Bluetooth capability supports remote monitoring and proactive maintenance, reducing site visits and downtime. Over its life cycle, these factors contribute to lower total cost of ownership for HVAC systems.
