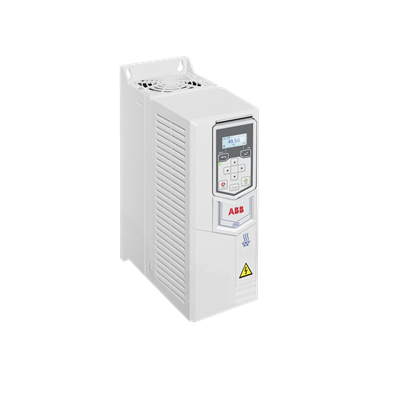

ABB 3AXD50000940813 ACH531 Drive - 0.75 kW IP20
Part Number: 3AXD50000940813
Quick Summary
The ACH531 drive is a LV AC wall-mounted drive designed to optimize HVAC system control for fans, pumps, and compressors. Installers often grapple with lengthy startup and commissioning, but this drive simplifies setup through built-in control features and straightforward wiring. Key protections include CE marking and IP20 enclosure, with SIL-ready design considerations for safety-critical environments. In practice, this combination translates to faster deployment, reduced commissioning time, and lower total cost of ownership, while preserving reliable, energy-efficient operation. For procurement teams, the compact footprint and integrated control capabilities deliver improved installability, easier maintenance, and better lifecycle value across commercial HVAC projects.
Product Information
Extended Description
3AXD50000940813 ABB: The ACH531 drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring a smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the standard basic control panel can make startup, commissioning, and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH531-01 comes in an IP20 enclosure and can be installed on the wall as standard.
Feature built-in control panel → Business Impact reduced commissioning time and easier startup → Application HVAC fans, pumps, and compressors with streamlined configuration. Feature IP20 enclosure → Business Impact safe, durable wall-mount installation in typical HVAC environments → Application installation on walls in service rooms or mechanical spaces. Feature wall-mounted LV drive → Business Impact space optimization and simplified cable routing → Application retrofit or new-build projects with minimal retrofit work. Feature 0.75 kW, 2.6 A rating → Business Impact appropriate sizing for mid-range HVAC loads with predictable performance → Application air-handling units and smaller chillers. Feature optional Bluetooth capability → Business Impact remote commissioning and monitoring, lowering site visits → Application remote management and diagnostics. Feature built-in features for startup and operation → Business Impact faster commissioning, less commissioning labor, and reduced risk of misconfiguration → Application plug-and-play integration with fans, pumps, and compressors. Feature compatibility with HVAC units like air-handling units and chillers → Business Impact broad applicability, fewer SKU variants, and procurement efficiency → Application scalable across multiple facilities.
Get a Quick Quote for a ABB 3AXD50000940813
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000940813?
Enquire Now
FAQs
Install the ACH531 on a clean, accessible wall within its IP20-rated enclosure. Connect the power input to the LV supply, wire the motor leads for the HVAC load (fans, pumps, compressors), and link any required sensors or feedback devices. Use the built-in control panel for basic configuration and commissioning, and consider the optional Bluetooth accessory for remote monitoring during startup and ongoing operation.
Yes. The ACH531 is designed to control typical HVAC components such as fans, pumps, and compressors. Its built-in control features support start/stop, speed regulation, and energy-efficient operation across air-handling units and chillers, reducing energy consumption and improving overall system performance.
Key specs include a 0.75 kW power rating and a 2.6 A current, with IP20 enclosure protection for wall mounting. Performance benefits include smoother motor control, faster commissioning, easier startup, and potential energy savings from optimized HVAC operation across multiple equipment types.
The drive features IP20 protection and CE marking, aligning with common European safety and installation standards for HVAC equipment. These protections help ensure safe operation in mechanical rooms and compliant integration with building control systems.
ROI benefits come from reduced commissioning time, lower installation labor, and energy savings from optimized HVAC control. Maintenance is simplified by the compact, integrated design and optional remote monitoring via Bluetooth, enabling proactive diagnostics and fewer site visits.
