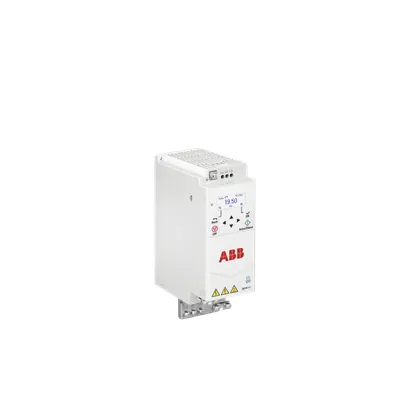

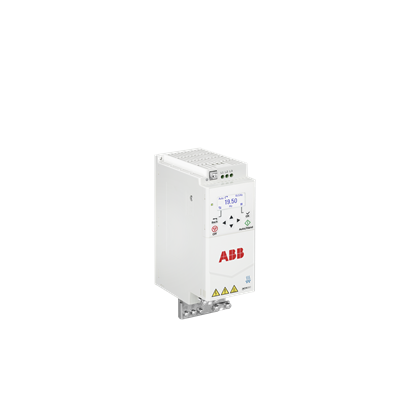

ABB 3AXD50000956647 ACH180 HVACR Drive - IEC 1.1 kW
Part Number: 3AXD50000956647
Quick Summary
ABB ACH180 HVACR drive provides compact LV AC motor control for HVAC equipment. Engineers face space constraints, wiring complexity, and lengthy commissioning times; this module simplifies setup, reduces downtime, and eases maintenance. It carries UL listing for safe operation and IEC-compliant performance, aligning with common HVAC standards. By pairing a small footprint with efficient drive technology, it delivers measurable business value such as reliable operation and easier asset management. In addition, the system supports energy efficiency improvements and space-saving benefits, making it a practical choice for modern commercial and industrial HVAC installations.
Product Information
Extended Description
3AXD50000956647 ABB: The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
Compact design enables installation in tight spaces, reducing enclosure footprint and simplifying panel routing. This translates to faster installation, lower cabinet costs, and easier service access in retrofit projects for air handling units and rooftop systems. Energy-efficient motor control improves overall system performance, reducing utility bills and extending equipment life in fans and pumps commonly used in commercial buildings. The simple setup and safe maintenance workflow minimize commissioning time and risk, helping maintenance teams start up quickly after outages. UL listing and IEC compliance provide regulatory assurance, supporting procurement standards and reducing compliance-related delays in regulated environments. With a 1.1 kW (IEC) / 1.5 Hp (UL) rating at 230 V and low current draw, the ACH180 delivers predictable performance for variable-speed HVAC applications while preserving existing wiring and control architecture.
Get a Quick Quote for a ABB 3AXD50000956647
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000956647?
Enquire Now
FAQs
The ACH180 HVACR Drive is a low-voltage AC drive designed for 230 V systems and is suitable for retrofit or new installations where 1.1 kW (IEC) or 1.5 Hp (UL) motors are in use. It supports compact form factors, simplifying panel integration and reducing wiring complexity. When evaluating compatibility, verify motor nameplate data matches the drive ratings and confirm cabling conforms to local electrical codes.
Key specs include a 1.1 kW (IEC) / 1.5 Hp (UL) rating at 230 V and currents of 6.9 A (IEC) or 6.6 A (UL). The drive provides speed control suitable for variable-air-volume applications, enabling smoother ramping, reduced mechanical stress, and energy savings. For selection, ensure motor affinity and application load profiles stay within these limits and consider enclosure ambient conditions.
Yes. The ACH180 is a compact LV AC drive module designed to fit tight spaces in commercial HVAC equipment like rooftop units and air handlers. Its small footprint reduces panel size and simplifies installation, while its robust HVACR feature set supports reliable operation in busy environments. Verify mounting clearance, wiring trays, and ventilation to maintain performance in crowded installations.
The drive carries UL-listed (1.5 Hp) performance for safe HVAC motor control and IEC compliance for standard electrical operation. These certifications support regulatory procurement, supplier qualification, and safety audits in many regions, helping to accelerate project approvals and reduce risk when integrating the ACH180 into commercial or industrial HVAC systems.
Expect energy savings from smooth motor control and efficient operation of fans and pumps, along with reduced wear due to soft-start and controlled acceleration. The compact design lowers installation and maintenance costs, while the simple setup minimizes commissioning time. Together, these factors contribute to a faster payback in retrofit projects and ongoing lifecycle cost reductions.
