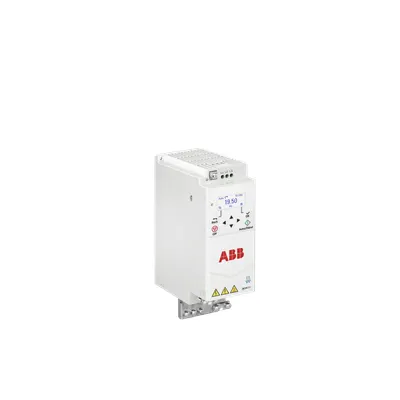

ABB ACH180-04S-07A8-1 Drive Module - UL 2.0 Hp
Part Number: 3AXD50000956654
Quick Summary
ABB ACH180-04S-07A8-1 drive module is a LV AC micro drive designed for HVACR applications, delivering precise motor control and energy savings in compact spaces. In retrofit or new-install projects, engineers often contend with limited panel area, wiring complexity, and variable load profiles that erode performance; this module helps simplify setup and deliver consistent results. UL-listed for 230 V operation, it also supports CE compliance in applicable markets and aligns with IEC HVACR standards for safe integration. For procurement and maintenance teams, the device offers predictable lifecycle costs, easy maintenance, and scalable control as part of ABB's ACH180 family, enabling reliable HVACR performance with minimal footprint.
Product Information
Extended Description
3AXD50000956654 ABB: The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
Feature: Compact footprint and integrated design. Benefit: Easier installation in tight equipment rooms and retrofits, reducing panel required space and simplifying wiring. Application: HVACR control panels where space is at a premium. Business impact: Shorter installation times and lower enclosure costs. Feature: 1.5 kW IEC capability with 230 V input and UL listed 2.0 Hp output. Benefit: Precise motor speed control for fans, pumps, and compressors with reliable performance and energy efficiency. Application: Commercial HVAC fans and circulating pumps. Business impact: Lower energy consumption and reduced operating costs. Feature: Simple configuration and safe maintenance. Benefit: Quick commissioning, straightforward troubleshooting, and lower maintenance overhead. Application: Service visits and low-skilled maintenance scenarios. Business impact: Faster MTTR and improved system uptime. Feature: Compatibility with the ACH180 family. Benefit: Seamless scalability and centralized control across multiple HVACR devices. Application: New installations and phased upgrades in large facilities. Business impact: Consistent control strategy and reduced training needs. Feature: Certifications and compliance readiness. Benefit: UL-listed design with IEC HVACR alignment and CE readiness where applicable. Application: Regulatory environments requiring certified equipment. Business impact: Risk mitigation and smoother audit trails.
Get a Quick Quote for a ABB 3AXD50000956654
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000956654?
Enquire Now
FAQs
For successful installation, ensure a 230 V supply is available and wire per the HVACR drive I/O diagram. Verify panel space is sufficient for the compact footprint and use proper motor protection and enclosure ratings. The module is designed for straightforward mounting and screw-terminal connections to minimize field wiring errors during retrofit or new-build projects.
The drive provides precise speed control and smooth starting behavior, enabling energy-efficient operation of fans and pumps. With 1.5 kW IEC capability and 230 V input, it supports reliable torque control and reduced motor wear, contributing to lower energy use and longer motor life in typical HVAC loads.
Yes, its compact form factor and standard 230 V 2.0 Hp output make it suitable for retrofits where space and wiring budgets are constrained. It integrates with common HVACR control schemes and can be substituted for legacy drives with compatible mounting and wiring layouts, helping to minimize downtime during upgrades.
The ACH180-04S-07A8-1 is UL-listed for 230 V operation and aligns with IEC HVACR standards. It supports CE readiness where applicable, helping facilities meet regulatory requirements and simplifying approvals for commercial HVACR installations.
Expected ROI comes from energy savings through efficient motor control, reduced commissioning and maintenance time, and a smaller footprint that lowers installation costs. The module’s reliability and compatibility with ABB’s ACH180 family support scalable HVACR control, enabling depreciation and lifecycle-cost advantages in multi-unit facilities.
