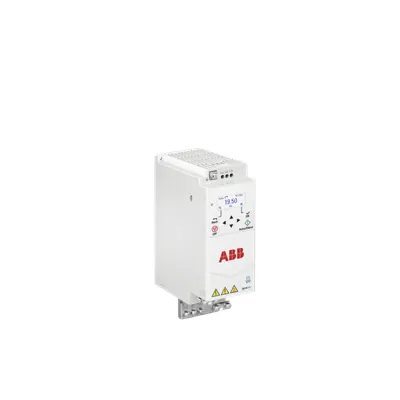

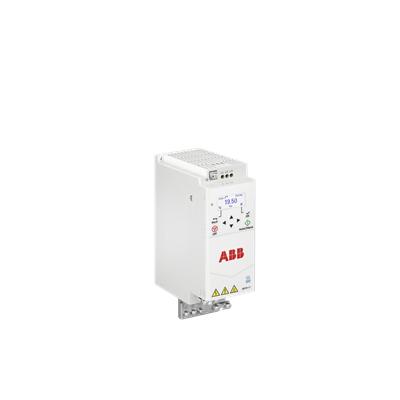

ABB ACH180-04S-09A8-1 LV AC micro drive module - UL 3.0 Hp
Part Number: 3AXD50000956661
Quick Summary
ABB ACH180-04S-09A8-1 LV AC micro drive module enables precise speed control for HVACR systems in commercial and industrial facilities. Its compact footprint and straightforward setup address common pain points of fitting drives in tight cabinets and reducing commissioning time. UL-listed for safe HVACR operation and engineered to IEC motor-control standards, it supports reliable performance with 2.2 kW IEC and 3.0 Hp UL ratings. Designed for energy efficiency, it reduces operating costs while delivering simple integration with building management systems and centralized controls. This ABB solution helps technicians and procurement teams meet compliance demands without sacrificing uptime or scalability.
Product Information
Extended Description
3AXD50000956661 ABB: The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
Feature: Compact design fits tight electrical and equipment spaces. Business Impact: Frees cabinet real estate and simplifies retrofits, enabling faster installation and easier service access. Application: Ideal for small HVACR panels in commercial buildings where space is at a premium. Feature: 2.2 kW IEC power rating with 9.8 A at 230 V. Business Impact: Enables precise motor control with energy-efficient performance, reducing standby and running costs. Application: Controls fans and pumps in AHUs and rooftop units. Feature: UL-listed for HVACR safety. Business Impact: Enhances compliance, lowers risk during maintenance, and supports safer handling in busy facilities. Application: Any HVACR installation demanding recognized safety certification. Feature: Simple setup and safe maintenance. Business Impact: Shortens commissioning, minimizes commissioning errors, and lowers total cost of ownership. Application: Facility upgrades or new builds with tight project timelines. Feature: Compatibility with building management systems. Business Impact: Enables centralized monitoring, scheduling, and analytics for energy optimization. Application: Integration in modern BAS/BMS environments for smarter HVAC control. Feature: Robust design for HVACR environments. Business Impact: Improves reliability, reduces unscheduled downtime, and extends motor life. Application: Fans and pumps operating in variable conditions and cramped electrical rooms.
Get a Quick Quote for a ABB 3AXD50000956661
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000956661?
Enquire Now
FAQs
Plan for a compact enclosure and 230 V supply to match the drive’s 2.2 kW IEC rating and 9.8 A draw. Ensure adequate cooling and ensure wiring conforms to local codes. The module’s small footprint simplifies retrofits in tight mechanical rooms and supports straightforward integration with fans and pumps in HVACR systems.
Key specs include a 2.2 kW IEC power rating, 9.8 A current, and 230 V operating voltage. The UL-listed device provides 3.0 Hp performance with the same 9.8 A current, making it suitable for HVACR motors and compact applications.
Yes. The drive is designed for 230 V operation and can control fans and pumps in HVACR systems, delivering precise speed control, energy efficiency, and reliable operation in confined spaces.
The model is UL-listed for safe HVACR operation. While the datasheet highlights UL certification and IEC-based motor-control compatibility, certification scope beyond UL may depend on regional approvals and configuration; consult ABB documentation for exact certification coverage in your market.
Expect reduced energy consumption due to optimized motor control, lower maintenance costs from safer, simpler service access, and improved uptime from reliable HVACR performance. The compact design also lowers installation time and space requirements, contributing to faster project delivery and lower total cost of ownership.
