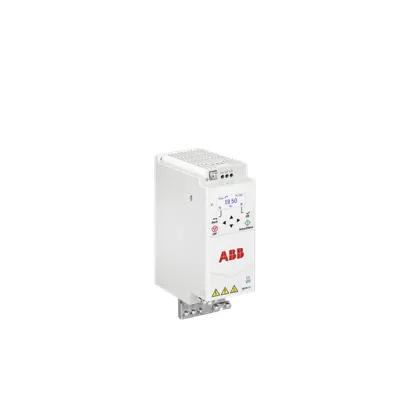

ABB 3AXD50000956685 HVAC AC Micro Drive Module - UL 1.5 Hp
Part Number: 3AXD50000956685
Quick Summary
ABB ACH180 HVACR LV AC micro drive module delivers precise motor control for HVAC equipment. Engineers often wrestle with space constraints, wiring complexity, and maintenance downtime when upgrading fan and pump drives. UL-listed safety and reliability come standard, with compatibility for 230 V mains, 6.9 A nominal current, and the ACH180-04S-06A9-2 variant noted in the datasheet. This combination drives energy efficiency and reduces total cost of ownership by simplifying installation, lowering energy use, and providing safe, dependable operation in demanding HVAC environments. The result is a compact, easy-to-integrate solution that supports ongoing optimization of HVAC systems while aligning with broader ABB control ecosystems.
Product Information
Extended Description
3AXD50000956685 ABB: The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
Feature: Compact footprint and integrated wiring minimize panel depth. Business Impact and Application: Reduces enclosure costs and speeds installation, enabling rooftop units, air handling units, and compact fans to fit in tight HVAC spaces. Feature: 230 V mains compatibility with Pn 1.1 kW capability. Business Impact and Application: Enables direct integration with standard HVAC power supplies, reducing wiring steps and expediting commissioning in 208/230 V networks across commercial HVAC. Feature: UL-listed safety and reliability for HVACR environments. Business Impact and Application: Lowers risk, meets industry safety expectations, and reduces maintenance costs; ideal for continuous operation in crowded equipment rooms. Feature: Energy-efficient speed control and smooth torque for fans and pumps. Business Impact and Application: Lowers energy consumption and wear, extending motor life for AHUs and rooftop systems. Feature: Compatibility with ACH180-04S-06A9-2 variant and ABB control ecosystem. Business Impact and Application: Streamlines procurement and spare parts, supports retrofit projects, and ensures coherent control strategies across HVACR installations. Feature: Safe maintenance with clear diagnostics and straightforward parameter setup. Business Impact and Application: Minimizes downtime and speeds service calls, with intuitive tuning for HVAC staff.
Get a Quick Quote for a ABB 3AXD50000956685
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000956685?
Enquire Now
FAQs
Yes. The 3AXD50000956685 is designed to integrate with the ACH180 family and is compatible with ACH180-04S-06A9-2 configurations. It supports 230 V mains and delivers 1.1 kW (Pn) with a 6.9 A nominal current. Wiring follows standard drive practices, and the module installs within the same footprint as other ACH180 components, simplifying retrofit projects and minimizing downtime.
Expect precise speed control for fans and pumps, smoother torque, and improved energy efficiency. The module’s compact design keeps enclosure sizes small while maintaining reliable operation under HVACR duty cycles. Users typically experience reduced energy consumption, lower thermal load on electrical gear, and easier commissioning in new builds or retrofits.
Yes. The ACH180-based drive module is well-suited for rooftop units, air handling units, and packaged equipment where space is at a premium. Its 230 V mains compatibility and UL-listed safety profile support reliable operation in demanding environments, while its compact footprint simplifies integration into existing HVAC layouts.
The product carries UL-listed safety qualifications, specifically noting UL Pld 1.5 Hp, 6.6 A, 208 V for the ACH180-04S-06A9-2 variant. For markets requiring CE marking or IP protection, plan for standard HVAC drive practices and enclosure ratings to meet local regulations. Always validate installation per local electrical codes and manufacturer guidelines.
Owners typically see ROI from energy savings, reduced downtime, and simplified maintenance due to safer, easier-to-tune controls. The drive’s diagnostics and straightforward parameter setup shorten service intervals and accelerate fault isolation. Regular checks on motor current, wiring integrity, and firmware updates maintain peak performance over the life of the HVAC system.
