ABB 3AXD50000956692 LV AC Micro Drive - UL Pld 2.0 Hp
Part Number: 3AXD50000956692
Quick Summary
LV AC micro drive modules deliver precise speed control for HVAC equipment, enabling efficient fan and compressor operation. Installers often face tight spaces, complex wiring, and long commissioning times that push project timelines. This ABB ACH180 HVACR compact drive module is UL-listed and IEC-compliant, designed to fit tight panels and deliver reliable performance in demanding environments. It minimizes wiring complexity while delivering safe maintenance and quick setup. With real-time speed modulation and built-in protections, you can reduce energy consumption and extend equipment life. For engineers and procurement teams, this device offers predictable performance, easier stocking through a common ABB platform, and a strong basis for energy-savings and lifecycle cost reduction in building automation projects.
Product Information
Extended Description

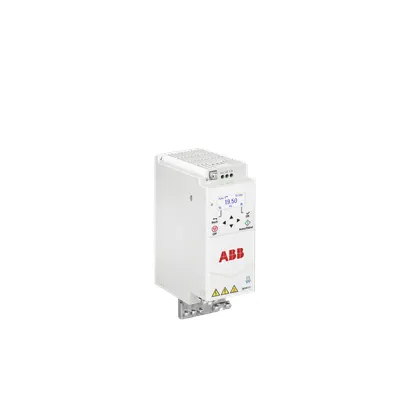

3AXD50000956692 ABB: The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
Feature: Compact drive module design. Business Impact: Enables tighter panel layouts, faster installation, and reduced cabinet depth for HVAC equipment. Application: Ideal for rooftop units and packaged air handling systems where space is premium. Feature: Simple configuration and safe maintenance. Business Impact: Reduces commissioning time and minimizes wiring errors with clear diagnostics and preconfigured setups. Application: Serviceable in field upgrades and retrofit projects with limited access. Feature: Clear electrical ratings and compatibility. Business Impact: 1.5 kW, 7.8 A at 230 V with UL Pld 2.0 Hp at 208 V—ensures dependable performance across common HVAC voltages. Application: Fan and pump control in commercial HVACR loops. Feature: Energy-efficient variable speed control. Business Impact: Lowers peak demand and operating costs while maintaining comfort setpoints. Application: Building automation and energy management systems. Feature: Safety, reliability, and ABB ecosystem fit. Business Impact: UL-listed safety and IEC HVACR alignment simplify procurement, maintenance, and spare-part planning. Application: New builds and retrofits where long-term serviceability matters.
Get a Quick Quote for a ABB 3AXD50000956692
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000956692?
Enquire Now
FAQs
Begin by ensuring a 230 V supply and verify the 1.5 kW power rating meets your blower or pump requirements. Follow the ACH180 wiring diagram for L, N, and motor connections, observe proper grounding, and mount the module in a protected, ventilated panel. Use the built-in diagnostics to confirm correct orientation, terminate control circuits correctly, and perform a low-speed test before full load commissioning.
The module operates at 1.5 kW with a nominal current around 7.8 A and 230 V input, with UL Pld 2.0 Hp (7.5 A) at 208 V for compatible configurations. It supports HVACR applications with variable speed control, enabling smooth starts, reduced motor wear, and energy-efficient operation in fans and pumps commonly found in commercial buildings.
Yes. The LV AC micro drive provides precise speed control, enabling significant energy savings in fans and pumps by matching load demand to actual conditions. Its compact form factor eases installation in retrofit panels, while diagnostics and protected operation minimize downtime. When integrated with building automation, it supports demand-based scheduling and improved occupant comfort with reduced operating costs.
This ABB drive is UL-listed, ensuring safety certification for electrical equipment. It is designed to be IEC-compatible for HVACR applications, aligning with European standards for HVAC controls. These certifications and design considerations help meet safety and compliance requirements for commercial installations while delivering reliable performance in harsh environments.
Expect a rapid ROI from energy savings due to accurate variable-speed control of fans and pumps, reduced wear from soft-start operations, and lower maintenance costs thanks to integrated diagnostics. The compact design also lowers enclosure and wiring needs, shortening installation time and minimizing spare-parts inventory across projects.
