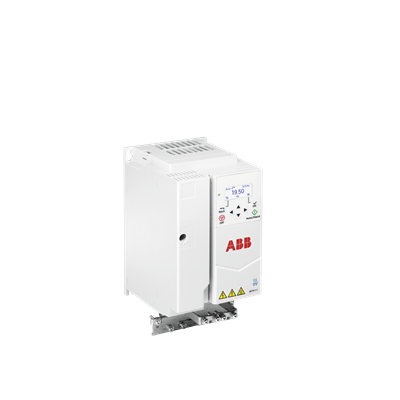

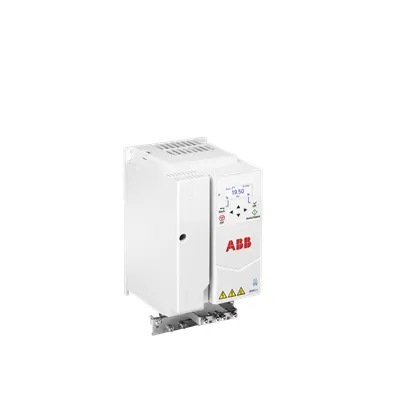

ABB ACH180-04S-17A5-2 LV AC Micro Drive - UL 5.0 Hp
Part Number: 3AXD50000956722
Quick Summary
ABB ACH180-04S-17A5-2 is a LV AC micro drive module for HVACR applications, delivering precise speed control in compact spaces. Tight footprints and demanding service schedules often push installers to compromise on performance; this drive reduces wiring complexity, shortens commissioning, and simplifies ongoing maintenance. Key certifications include UL listing for safety, CE readiness for European markets, and enclosure options suited for indoor HVAC environments, providing confidence in reliable operation. Designed to integrate with existing ABB controls or compatible third‑party automation, it translates to lower total cost of ownership and measurable energy savings across commercial and industrial HVAC projects. These benefits extend to improved motor protection and easier upgrade paths in retrofit projects.
Product Information
Extended Description
3AXD50000956722 ABB: The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
The compact LV AC drive module is designed for HVACR, delivering 4.0 kW IEC rating with 230 V operation in a small footprint. This feature translates to tighter equipment layouts and easier harnessing, reducing panel depth and cabling costs while maintaining robust motor control. It is well suited for air handling units, rooftop units, and packaged HVAC packs where space is at a premium. The drive’s UL safety listing and protective features lower commissioning risk and simplify regulatory compliance, supporting both new installations and retrofits in commercial buildings. Easy setup and safe maintenance shorten startup times and minimize service interruptions, enabling quicker return-to-service in critical systems. Compatibility with 208 V and 230 V supplies provides flexible integration with existing plant power, reducing system redesign. Energy-efficient variable-speed control delivers measurable lifecycle cost savings while extending motor life in chiller plants and large-scale HVAC networks.
Get a Quick Quote for a ABB 3AXD50000956722
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000956722?
Enquire Now
FAQs
When installing the ACH180-04S-17A5-2 in HVACR cabinets, plan for a compact footprint and accessible wiring routes. The device supports 208 V and 230 V supplies and is designed to integrate with ABB controls as well as compatible third‑party systems. Ensure proper enclosure and cooling within indoor HVAC environments to maintain reliability and service life.
Key performance specs include a 4.0 kW IEC rating, 230 V operation with 17.5 A current, and UL Pld 5.0 Hp at 16.7 A and 208 V. This combination supports precise PWM control for fans, pumps, and motors in HVACR applications, enabling smooth starts, improved torque delivery, and better energy efficiency across varying load conditions.
The drive module excels in air handling units, rooftop units, fan coils, pumps, and other compact HVACR assemblies where space is limited. Its compact form factor, defined voltage options, and controllable speed capability make it ideal for retrofits in existing cabinets as well as new installations in commercial and light industrial environments.
The ACH180-04S-17A5-2 carries UL safety listing for motor drive safety and is designed for CE readiness to support European market deployment. While IP and SIL ratings vary by enclosure and installation, ABB HVACR drives typically align with indoor humidity ranges and standard electrical safety practices, aiding regulatory compliance and field acceptance.
By delivering precise speed control and energy‑efficient operation, the ACH180-04S-17A5-2 reduces energy consumption and startup wear, lowering operating costs over the system lifetime. Its simple setup and robust design minimize commissioning and maintenance time, improving uptime for critical HVAC loads and delivering faster project payback in commercial deployments.
