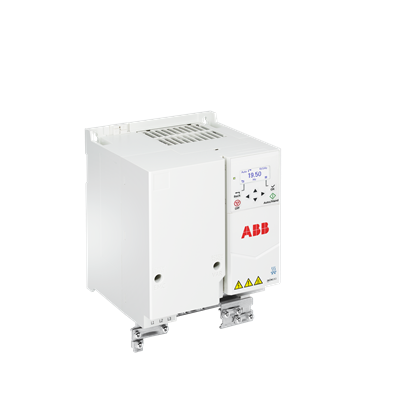

ABB 3AXD50000956746 LV AC micro drive - ACH180-04S-033A-2
Part Number: 3AXD50000956746
Quick Summary
3AXD50000956746 is an LV AC micro drive module for HVAC applications, delivering precise speed control for fans and pumps. Tight wiring, limited panel space, and varying load profiles in modern buildings can push HVAC projects beyond budgets. UL-listed for HVACR applications and built to fit compact spaces, the ACH180-04S-033A-2 delivers reliability and safe operation. This drive accelerates commissioning, supports energy savings, and reduces overall lifecycle costs by optimizing motor speed. In addition to the core spec, engineers value compatibility with standard HVAC motors and the ease of integration within ABB’s ACH180 family, enabling scalable upgrades and consistent performance across multi-unit installations.
Product Information
Extended Description
3AXD50000956746 ABB: The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
Feature: Compact form factor and HVACR suitability → Business impact: Enables installation in tight spaces, reducing panel depth and wiring runs, which lowers installation time and costs. Application: Retrofit projects and new builds in mechanical rooms and air handling applications. Feature: Power and current alignment (Pn 7.5 kW, 32 A at 230 V; UL: 10 Hp, 30.8 A, 208 V) → Business impact: Aligns with common HVAC motor sizes and building power budgets, avoiding over-specification and reducing equipment footprint. Application: Drives standard HVAC motors in fans and pumps without oversized gear. Feature: Safe setup and easy maintenance → Business impact: Simplified commissioning with intuitive configuration reduces commissioning time and downtime. Application: Day-to-day service in HVACR installations with predictable maintenance cycles. Feature: Energy efficiency through variable speed control → Business impact: Lower energy consumption and improved part-load performance translate to measurable lifecycle cost savings. Application: Air handling units, cooling and ventilation circuits, and pump loading in commercial buildings. Feature: Compatibility within ABB ACH180 ecosystem → Business impact: Consistent interfaces and fast integration with existing controls cut integration risk. Application: Multi-unit deployments and retrofit programs across campus buildings or industrial facilities. Industry context: HVACR drives demand robust EMC, motor protection, and compact wiring; the ACH180-based module delivers reliable operation in demanding environments while simplifying installation and maintenance for engineering teams.
