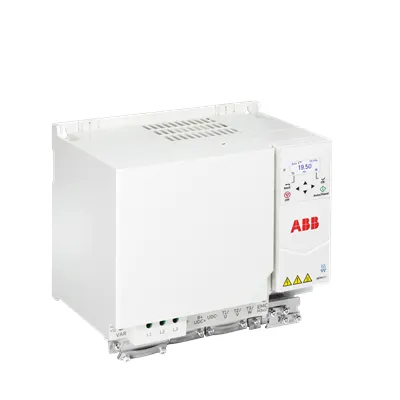

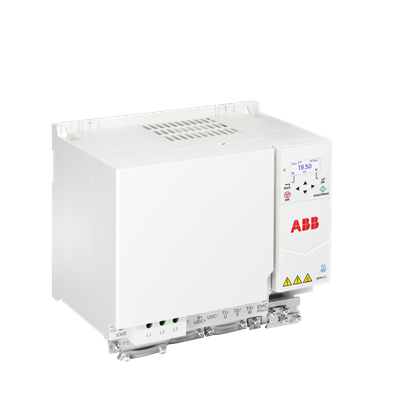

ABB 3AXD50000956753 LV AC micro drive module - UL Pld 15 Hp
Part Number: 3AXD50000956753
Quick Summary
ABB ACH180 HVACR drive module is an LV AC micro drive for precise motor control in HVAC systems. It addresses space constraints and installation challenges with a compact footprint and straightforward setup. The module is designed with safety and compliance in mind, including UL listing for Pld 15 Hp, supporting reliable HVAC operation; CE conformity and robust enclosures are common in ABB HVACR families, and should be verified for your specific project. For businesses, this translates into lower commissioning time, reduced wiring complexity, and tangible energy savings across commercial and industrial HVAC applications.
Product Information
Extended Description
3AXD50000956753 ABB: The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
Feature: Compact footprint and tight-space installation. Benefit: Enables easy fit in crowded equipment rooms, reducing cabinet size and labor costs during retrofits. Application: Air handling units and rooftop HVAC equipment. Feature: 11 kW nominal power with 48 A current at 230 V. Benefit: Delivers strong torque at low speeds for fans and pumps, improving process control and reducing run-time energy. Application: LV AC motor control in HVACR drives. Feature: UL listing for Pld 15 Hp (46.2 A, 208 V). Benefit: Enhances safety compliance and simplifies procurement with recognized standards. Application: Industrial and commercial building services. Feature: Simple setup and safe maintenance. Benefit: Accelerates commissioning and minimizes downtime, boosting maintenance efficiency. Application: retrofit projects and new installations in compact spaces. Feature: Energy-saving capabilities built into HVACR drive modules. Benefit: Reduces operating costs over the life of the system. Application: energy-conscious facility management and smart building deployments.
Get a Quick Quote for a ABB 3AXD50000956753
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000956753?
Enquire Now
FAQs
The module is designed as a LV AC micro drive for ABB’s ACH180 family, supporting 230 V three-phase inputs and 11 kW motor ratings. It integrates with standard HVAC control architectures and PLCs, enabling seamless motor control for fans and pumps in air handling units. Wiring is streamlined for compact installations, and parameterization is straightforward to minimize commissioning time.
Key specs include: nominal power 11 kW, phase current around 48 A at 230 V, with UL-listed performance for 15 Hp (46.2 A, 208 V). These specs support reliable motor control in HVACR applications, delivering adequate torque and adjustable speed to optimize fan and pump efficiency while maintaining system stability and protection features.
Yes. The ACH180 HVACR drive module is purpose-built for HVAC applications, offering compact size, robust control of three-phase motors, and energy-efficient operation. It excels in air handling units, rooftop units, and other HVACR equipment where space is limited but precise speed control and reliable performance are essential.
This ABB drive module carries UL listing for Pld 15 Hp, reflecting safety and compliance for industrial HVAC applications. When specifying for regulated projects, verify datasheet and local requirements for additional certifications such as CE or IP ratings, as these can vary by region and installation environment.
The unit's energy-saving capabilities, compact installation, and straightforward commissioning translate into lower operating costs and reduced downtime. Regular maintenance tasks are simplified by its safe-to-maintain design, while reliable HVAC control reduces energy waste from inefficient fan and pump operation, delivering a favorable return on investment over the system’s life cycle.
