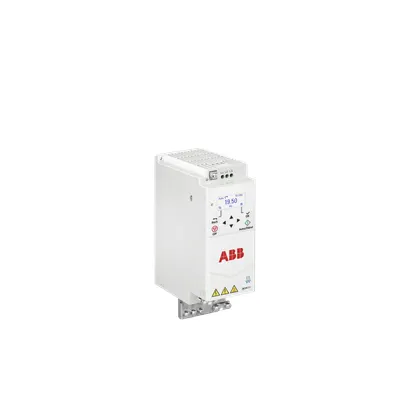

ABB 3AXD50000956777 LV AC Drive - HVACR 2.2 kW
Part Number: 3AXD50000956777
Quick Summary
ABB 3AXD50000956777 LV AC drive is a compact motor controller for HVACR systems, optimizing fans, pumps and compressors. In tight spaces, installation and maintenance are challenging, often increasing commissioning time and downtime. This drive carries CE safety certification and UL recognition for 460 V HVAC networks, with robust protection against electrical faults. Its simple setup and energy-saving features help reduce operating costs, while its compact footprint makes retrofit and new installations easier in crowded equipment rooms. For technical teams, this translates to faster commissioning, predictable performance, and improved lifecycle reliability, as part of ABB’s ACH180 HVACR drive family globally today.
Product Information
Extended Description
3AXD50000956777 ABB: The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
Compact footprint and integrated HVACR features keep the enclosure size small without compromising control. This directly lowers cabinet costs, simplifies wiring, and speeds installation in equipment rooms with limited space. Ideal applications include air handling units, rooftop units, and packaged HVAC systems where a slim profile and straightforward configuration drive project timelines. The IEC rated 2.2 kW at 400 V provides reliable motor control for fans and pumps, enabling precise speed regulation that translates to measurable energy savings and reduced demand charges. UL-listed performance at 460 V (3.0 Hp, 4.8 A) supports global deployments and safer operation in commercial facilities. Simple setup minimizes commissioning risk, while built-in HVACR features improve uptime and ease maintenance. Compatibility with ABB’s ACH180 family ensures scalable upgrades as system requirements evolve. Maintain reliability in demanding environments with minimal training and fewer spare parts.
Get a Quick Quote for a ABB 3AXD50000956777
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000956777?
Enquire Now
FAQs
The ACH180 HVACR drive is designed for straightforward installation in 400 V networks. Start with wiring the input line to the drive terminals, configure motor parameters for a 2.2 kW IEC rating, and set the maximum current around 5.6 A. Use the built-in diagnostic indicators to confirm proper commissioning, and mount the unit in a compact enclosure to fit tight spaces typical of HVAC equipment like air handling units.
Key specs include a 2.2 kW IEC rating with 5.6 A input at 400 V, and a UL-rated equivalent of 3.0 Hp with 4.8 A at 460 V. The device is designed to operate reliably across these voltage ranges, enabling seamless use in mixed European and North American HVAC installations.
Yes. The ACH180 HVACR drive is explicitly described as a compact drive module, making it suitable for tight spaces in rooftop units, air handling units, and packaged HVAC systems. Its compact footprint reduces enclosure size, while its simple wiring and safe maintenance design minimize installation complexity and downtime.
The drive carries CE safety certification and UL recognition for systems operating at 460 V. These certifications provide confidence in safety, electrical performance, and regulatory compliance, enabling easier approval in many regional building automation and HVAC projects.
Expect reduced energy consumption through precise speed control of fans and pumps, lower installation and commissioning costs due to a compact, easy-to-wire module, and improved uptime from robust protection features. The device’s integration with ABB’s ACH180 family also supports scalable upgrades, delivering long-term value as facility requirements evolve.
