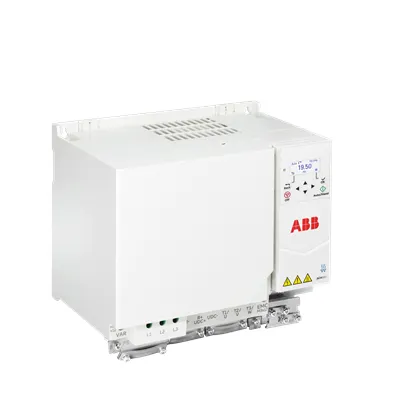

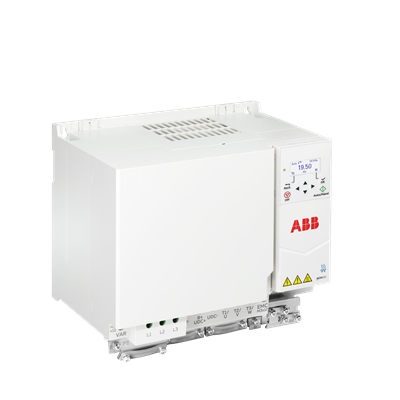

ABB 3AXD50000956852 HVACR Drive Module - UL Pld 30 Hp
Part Number: 3AXD50000956852
Quick Summary
HVACR drive module is a compact LV AC motor drive designed for HVAC applications. This ABB solution addresses the pains of fitting control hardware in tight spaces while delivering reliable motor control and energy savings. It supports IEC compatibility for 22 kW systems and UL listing for 30 Hp at 460 V, ensuring robust safety and compliance. By combining a simple setup with proven HVACR performance, it enables faster commissioning and consistent operation, while aligning with HVAC controls strategies to optimize energy use and system uptime.
Product Information
Extended Description
3AXD50000956852 ABB: The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
Feature: Compact footprint designed for confined control panels → Business Impact: Reduces enclosure size, wiring complexity, and installation time → Application: Rooftop units, air handling units, and packaged HVAC equipment. Feature: Energy-efficient motor control with precise fan and pump management → Business Impact: Lowers energy consumption and operating costs over the lifecycle → Application: HVAC fans, condensate pumps, and circulating pumps. Feature: Safe, straightforward setup with minimal maintenance requirements → Business Impact: Lower downtime and easier field servicing → Application: In-field retrofits and new builds with limited technician time. Feature: UL listing and IEC compatibility ensure regulatory alignment → Business Impact: Risk mitigation and smoother compliance across industrial HVAC installations → Application: Commercial buildings, manufacturing facilities, and energy‑sensitive environments.
Get a Quick Quote for a ABB 3AXD50000956852
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000956852?
Enquire Now
FAQs
The ABB HVACR drive module is designed for compact LV AC motor control and aligns with standard HVAC control panel practices. It supports IEC-based 22 kW operation at 400 V and UL-listed performance for 460 V, 40–45 A ranges, enabling straightforward integration with existing wiring schemes and control architectures in rooftop units and air handling systems.
Key benefits include energy-efficient motor control, precise speed regulation for fans and pumps, and a compact footprint that reduces enclosure costs. With UL listing for 30 Hp at 460 V and IEC compatibility for 22 kW, it delivers reliable HVACR operation, improved system stability, and easier commissioning across HVAC assemblies and commercial buildings.
Best suited for HVAC fans, pumps, and compressors in packaged equipment, rooftop units, and air handling units. Its compact design helps in tight control panels, while its energy-saving capabilities support demand-based control strategies. The ACH180-04S-045A-4 variant supports 460 V operation, making it versatile for mid to large HVAC installations.
Yes. The module is UL-listed for applicable HVACR use and supports IEC-based performance for 22 kW systems. This combination provides essential safety, reliability, and regulatory alignment for commercial and industrial HVAC projects, reducing compliance risk during procurement, installation, and ongoing operation.
The drive’s energy-efficient control reduces operating power in HVAC fans and pumps, delivering measurable energy savings and lower lifetime costs. Its compact, integrated design simplifies maintenance and commissioning, minimizing downtime and service time during retrofits or new-build deployments in HVACR facilities.
