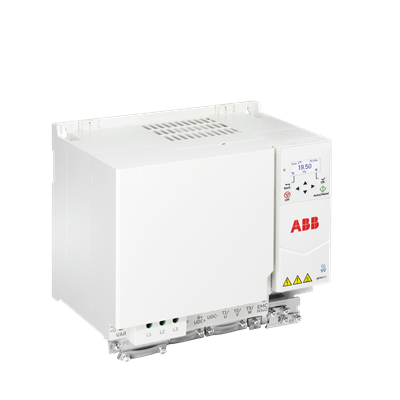

ABB 3AXD50000956869 LV AC Micro Drive - IEC 22 kW, UL 30 Hp
Part Number: 3AXD50000956869
Quick Summary
ABB 3AXD50000956869 LV AC micro drive for HVAC systems optimizes motor control in compact spaces. Engineers often struggle to fit robust drives into tight equipment footprints without sacrificing performance or reliability. The ACH180 HVACR compact drive modules are UL-listed and designed with HVACR in mind, offering safe maintenance, easy setup, and dependable operation. This solution delivers energy savings, reduced downtime, and simplified commissioning, making it a strong fit for modern commercial and industrial HVAC projects while aligning with HVACR standards and ABB’s drive ecosystem.
Product Information
Extended Description
3AXD50000956869 ABB: The ACH180 HVACR compact drive modules provide the quality, reliability, and energy savings you expect, while offering essential HVACR features, being compact and easy to fit tight spaces. They are simple to use and safe to maintain. All you need to do is to set the drive up, and then focus on what counts. Everything you need, nothing you don't.
The ACH180 LV AC micro drive module delivers space-saving performance that enables you to fit the controller into tight equipment enclosures, reducing cabinet size and installation complexity while maintaining precise motor speed control for fans and pumps. This translates to measurable energy savings and lower lifecycle costs as variable speed operation optimizes HVAC loads. It supports simple commissioning, with factory-ready configurations that minimize on-site tuning and commissioning time, improving uptime and reducing project risk. The 22 kW, 50 A at 400 V specification provides robust torque for demanding HVACR applications, while the UL-listed 30 Hp at 460 V rating helps meet safety and regulatory requirements for North American systems. In addition, the compact ACH180 series ships ready for HVACR environments, delivering reliable performance with minimal maintenance.
Get a Quick Quote for a ABB 3AXD50000956869
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50000956869?
Enquire Now
FAQs
This module integrates with standard LV AC control panels used in HVACR applications. It supports 400 V systems and draws 50 A nominal current, with UL-listed safety for 30 Hp operation at 460 V. For best results, verify enclosure space, proper wiring, and protective measures; refer to the ACH180 installation guide for wiring schematics, grounding, and EMI considerations.
Key specs include a 22 kW nominal power rating, 50 A current at 400 V, and a UL-listed capability for 30 Hp at 460 V. These ratings enable effective speed control of HVAC fans and pumps, delivering reliable torque and smooth ramping. The drive is designed for HVACR environments and is compatible with compact installations, reducing cabinet footprint and wiring complexity.
By providing precise variable-speed control, the drive optimizes HVAC loads, yielding energy savings over fixed-speed systems. Its compact design reduces installation time and cabinet space, while simple setup and safe maintenance minimize commissioning downtime and servicing costs. Reliability is enhanced by ABB’s HVACR-focused design philosophy and robust protection features.
Yes. The ACH180-based module is designed for HVACR applications and carries UL listing for safety. It aligns with common European HVAC controls expectations and ABB’s global standards, supporting CE-related considerations. Always confirm the latest compliance documentation and local regulatory requirements for your project, especially in critical facilities.
Plan for a compact enclosure and ensure adequate clearance for heat dissipation and cabling. Use proper shielded cables, EMI suppression where needed, and verify wiring to match 400 V supply and motor ratings. The ACH180 series is engineered for tight spaces and easy mounting, with clear wiring diagrams and reduced on-site tuning to accelerate commissioning in confined HVACR environments.
