ABB 3AXD50001011192 HVAC Drive - Ultra-Low THDi
Part Number: 3AXD50001011192
Quick Summary
ABB HVAC drive is a wall-mounted controller that optimizes fans, pumps, and compressors in HVAC systems. It addresses the challenge of harmonic distortion and energy waste that complicates commissioning and ongoing operation. This ultra-low harmonic variant delivers internal harmonic mitigation with built-in active supply and low harmonic line filtration, supporting safe, compliant performance with IP21 enclosure and optional IP55 housing. UL listing reinforces reliability while the ACH580 platform enables straightforward integration with existing control schemes. By leveraging built-in features like output voltage boost and power factor correction, you gain measurable energy efficiency, reduced maintenance, and simplified procurement for modern, demand-driven HVAC sites.
Product Information
Extended Description

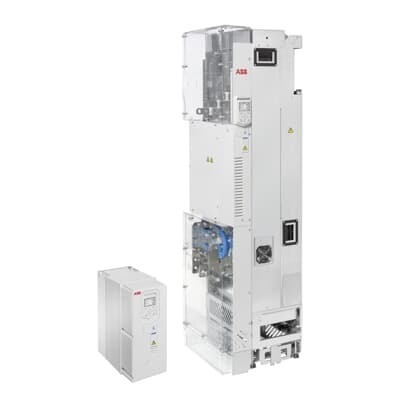

3AXD50001011192 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. This ultra-low variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. The built-in features significantly reduce installation time, and the intuitive HVAC specific control panel and help assistants make operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Ultra-low harmonic performance with THDi < 3% achieved by the integrated active supply unit and low harmonic line filter reduces electrical noise, extends motor life, and lowers compliance risk in HVAC drives. This translates to more stable fan and pump operation in air-handling units and chillers while reducing external filter costs and installation time. Feature → Business Impact → Application: Built-in low harmonic line filter and active supply unit eliminate the need for external filters or multi-pulse arrangements, cutting installation complexity and space requirements in compact mechanical rooms. Ideal for wall-mounted setups in new builds or retrofit projects where space is at a premium. Feature → Business Impact → Application: Output voltage boost and power factor correction enhance motor efficiency and reduce energy consumption, delivering lower operating costs and smoother control of variable-speed fans and pumps across fluctuating loads. Feature → Business Impact → Application: Integrated commissioning support, including optional Bluetooth capability, shortens on-site setup, accelerates fault finding, and enables remote monitoring, which minimizes downtime and service costs for HVAC plants. Feature → Business Impact → Application: Flexible enclosure options, IP21 standard with IP55 as an option, support installation in diverse environments from clean mechanical rooms to tougher industrial spaces, enabling safer, compliant operation with less enclosure customization.
Get a Quick Quote for a ABB 3AXD50001011192
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001011192?
Enquire Now
FAQs
Yes. The ABB ACH580 ultra-low harmonic drive is designed for 230 V operation with a nominal 16.7 A current and up to 5 HP duty. It is wall-mountable with an IP21 enclosure as standard, and it accommodates 230 V power distribution without requiring external transformers or complex mounting, simplifying retrofit and new installs.
The drive delivers ultra-low harmonic performance with THDi under 3%, thanks to an integrated active supply unit and low harmonic line filter. This reduces electrical stress on motors, improves efficiency, and lowers energy costs for HVAC fans, pumps, and compressors, while enabling easier compliance with low-harmonic recommendations.
Absolutely. Designed for fans, pumps, and compressors, the ACH580 variant is optimized for HVAC loads such as air-handling units and chillers. Its built-in controls, voltage boost, and power factor correction provide stable operation, smoother start/stop behavior, and energy-efficient performance under variable-speed demand, with straightforward integration into existing HVAC control architectures.
Key certifications include UL listing for reliable electrical safety. The standard enclosure is IP21, suitable for wall mounting in mechanical rooms, with IP55 and flange-mount options available for more demanding installations, offering flexibility to meet facility-specific environmental requirements.
The built-in features significantly shorten installation time by reducing external filters and transformers. Optional Bluetooth commissioning enables remote setup and monitoring, minimizing site visits and accelerating commissioning workflows, which translates into faster project timelines and lower total cost of ownership.
