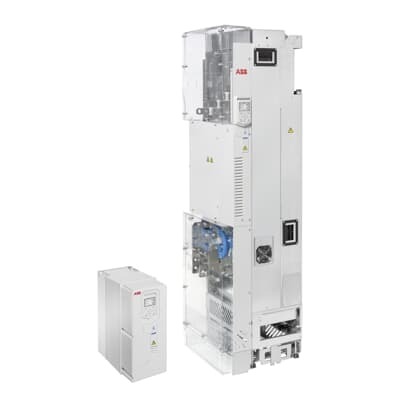

ABB 3AXD50001011246 Ultra-Low Harmonic Drive THDi<3%
Part Number: 3AXD50001011246
Quick Summary
3AXD50001011246 Ultra-Low Harmonic Wall-Mounted Drive efficiently controls HVAC motors and fans in commercial and industrial buildings. Engineers often grapple with harmonic distortion, external filters, and long installation times that erode efficiency and increase lifecycle costs. This ABB offering delivers IP21 standard enclosure with IP55 option, integrated low harmonic line filter, and THDi below 3%, supporting compliant, space-saving HVAC control. With built-in features like output voltage boost, power factor correction, and a HVAC-specific control panel, you gain measurable energy savings and faster commissioning. Additionally, optional Bluetooth enables remote commissioning and monitoring, aligning with modern remote maintenance strategies. This combination reduces downtime and extends motor life in critical HVAC projects.
Product Information
Extended Description
3AXD50001011246 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. This ultra-low variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. The built-in features significantly reduce installation time, and the intuitive HVAC specific control panel and help assistants make operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Integrated active supply unit and built-in low harmonic line filter. Business Impact: Eliminates the need for external harmonic mitigation, reduces cabinet space, and simplifies installation while improving THDi performance. Application: Ideal for HVAC drives controlling fans, pumps, and compressors in retrofit and new builds. Feature: THDi below 3 percent. Business Impact: Improves power quality, lowers energy waste, and supports compliance with low-harmonic guidelines. Application: Suitable for multi-branch HVAC systems with tight electrical envelopes. Feature: IP21 enclosure standard with IP55 option and flange mounting. Business Impact: Provides versatile installation options and improved protection without separate enclosures. Application: Wall-mounted installations in mechanical rooms or protected areas. Feature: Output voltage boost and power factor correction. Business Impact: Enhances motor performance, reduces reactive current, and stabilizes operation under varying load. Application: Controls fans, pumps, and compressors in variable-speed HVAC. Feature: HVAC-specific control panel and optional Bluetooth for remote commissioning. Business Impact: Speeds up setup, improves maintenance scheduling, and enables remote monitoring. Application: New builds and retrofit projects seeking reduced commissioning time and site visits.
Get a Quick Quote for a ABB 3AXD50001011246
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001011246?
Enquire Now
FAQs
The 3AXD50001011246 fits standard wall-mounted HVAC installations with an IP21 enclosure as standard and an IP55 option available. It integrates an active supply unit and low harmonic filter, reducing external hardware. Ensure electrical cabinet space accommodates the integrated dimensions and verify 230 V supply and 211 A current rating align with system loads such as fans and pumps.
A THDi below 3% minimizes harmonic distortion, improving overall power quality and reducing cooling and electrical wear on equipment. This leads to higher system efficiency, lower transformer and switchgear stress, and potential energy savings across multiple fans, pumps, and compressors in HVAC installations.
Yes. The drive is designed for HVAC applications including fans, pumps, air-handling units, and compressors. Its integrated features (voltage boost and PF correction) support stable operation across varying loads, while the compact wall-mounted form factor simplifies retrofits in mechanical rooms with space constraints.
The device comes with an IP21 enclosure standard and offers an IP55 option for harsher environments. It supports wall mounting, and flange mounting variants are available, enabling flexible installation in mechanical rooms, corridors, or protected outdoor-adjacent areas depending on site requirements.
Maintenance is streamlined by an integrated design that reduces external filters and wiring, while Bluetooth enables remote commissioning and monitoring to shorten on-site visits. The result is faster deployment, lower installation costs, improved energy efficiency from built-in PF correction, and longer motor life from enhanced power quality.
