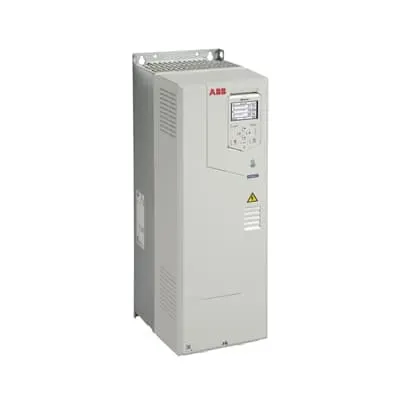

ABB 3AXD50001063122 HVAC Drive - IP21 IP55 Certified
Part Number: 3AXD50001063122
Quick Summary
3AXD50001063122 HVAC drive is a wall-mounted solution for precise control of fans, pumps, and compressors in HVAC systems. Engineers often face long commissioning times and complex startups, but this drive integrates HVAC-focused defaults to simplify setup. IP21 and IP55 protection options help you deploy in varied environments, while Bluetooth remote commissioning adds flexibility and speed. As part of ABB's ACH580 family, it aligns with energy-efficiency goals and reduces maintenance overhead for building services contracts. This combination supports reliable operation of fans, pumps, air handling units, and chillers, delivering measurable business value through simplified installation and ongoing performance clarity.
Product Information
Extended Description
3AXD50001063122 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC control for fans, pumps and compressors → Business Impact: Streamlines load matching and reduces manual wiring, lowering installation time and commissioning costs for HVAC projects → Application: Air handling units and chillers where coordinated variable-speed control improves energy use. Feature: HVAC-specific primary settings menu and help assistants → Business Impact: Accelerates startup and reduces commissioning errors, translating to faster project handover and lower labor costs → Application: New-builds and retrofit projects with tight timelines. Feature: Optional Bluetooth capability for commissioning and monitoring → Business Impact: Enables remote diagnostics and updates without site visits, cutting maintenance travel and downtime → Application: Remote compressor rooms, rooftop units, and distributed HVAC networks. Feature: IP21 enclosure standard with IP55 option and wall-mount installation → Business Impact: Flexible mounting in restricted spaces while maintaining protective ratings, reducing enclosure-related redesigns → Application: Wall-mounted installs in offices, mechanical rooms, and data-center peripheral HVAC cabinets. Feature: 45 kW, 89 A at 400 V electrical specification → Business Impact: Sufficient capacity for mid-to-large HVAC loads, avoiding over-sizing and reducing upfront cost → Application: Large fans, pumps, and multiple-coil pump configurations. Feature: Energy-efficient operation and diagnostics → Business Impact: Lower energy consumption and proactive fault detection, improving ROI and uptime → Application: Continuous operation in mission-critical cooling systems and multi-zone environments.
Get a Quick Quote for a ABB 3AXD50001063122
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001063122?
Enquire Now
FAQs
Yes. The ACH580 HVAC drive is designed as a wall-mounted LV solution compatible with typical HVAC equipment such as air handling units, fans, and pumps. It supports 400 V input, 89 A current, and 45 kW power, with IP21 standard enclosure and IP55 option, enabling flexible integration in mechanical rooms or cabinet spaces.
Key specs include 45 kW nominal power, 89 A nominal current, 400 V input, and an IP21 enclosure with optional IP55. It is intended for HVAC applications like fans, pumps, and compressors, with built-in HVAC-focused control features and Bluetooth capability for remote commissioning where required.
Applications include air handling units, rooftop and centrifugal fans, cooling pumps, and multi-zone chillers. The drive’s built-in HVAC control menu and energy-management features optimize speed and torque for these loads, delivering energy savings, quieter operation, and improved system stability in commercial and industrial buildings.
The device offers IP21 protection as standard with an IP55 option for higher protection needs. It is designed for wall-mounted installation in HVAC environments, supporting reliable operation in varied conditions and easing compliance with typical electrical installation practices in building services.
Benefits include reduced commissioning time thanks to HVAC-focused menus, remote diagnostics via Bluetooth to lower on-site service visits, and energy-efficiency gains from optimized fan and pump control. Over time this reduces lifecycle costs and improves uptime for critical cooling systems.
