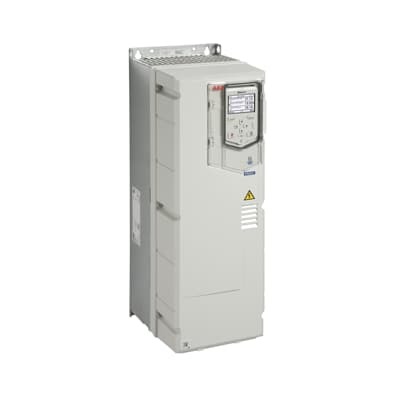

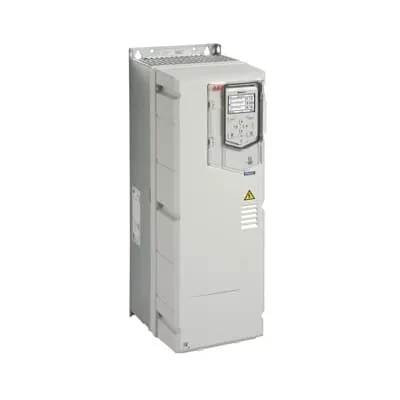

ABB 3AXD50001063139 HVAC drive - IP21 enclosure
Part Number: 3AXD50001063139
Quick Summary
HVAC drive delivers precise speed control for fans, pumps, and compressors in building HVAC systems. Many projects struggle with lengthy commissioning, complicated parameter sets, and unplanned downtime in mission-critical environments. The ACH580 HVAC drive offers IP21 protection with IP55 options and IEC-based safety features to support reliable operation, while optional Bluetooth enables remote commissioning and monitoring. This combination drives faster startup, lower energy use, and simplified maintenance, translating into shorter project timelines and lower lifecycle costs. By integrating HVAC-specific control menus and built-in helpers, it reduces engineering effort and helps technicians configure and operate systems more confidently, leveraging compatibility with standard ABB control ecosystems and enabling efficient integration with central building management.
Product Information
Extended Description
3AXD50001063139 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. The built-in features significantly reduce installation time and the intuitive control panel with an HVAC-specific primary settings menu and help assistants makes startup, commissioning and operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The ACH580-01 comes in IP21 enclosure and can be installed on the wall as standard. Also, IP55 and flange mounting units are available.
Feature: Built-in HVAC control for fans, pumps, and compressors. Business Impact: Reduces wiring, speeds commissioning, and lowers total installed cost. Application: Suited for air handling units, rooftop units, and energy-efficient chillers in commercial facilities. Feature: Energy optimization and smooth operation. Business Impact: Lower energy consumption and longer motor life due to precise speed regulation and gentle starts. Application: Variable-air-volume systems and chillers with fluctuating loads benefit from improved efficiency. Feature: HVAC-specific control menus and help assistants. Business Impact: Faster onboarding, fewer on-site service visits, and consistent parameter implementation. Application: Field engineers configuring AHUs and pumps during new installations. Feature: Flexible installation options. Business Impact: IP21 enclosure as standard with IP55 and flange-mount options, plus wall-mounted design for space-constrained mechanical rooms. Application: Retrofit projects and new builds in plant rooms and equipment spaces. Feature: Optional Bluetooth connectivity. Business Impact: Remote commissioning and monitoring reduce travel costs and downtime. Application: Multi-zone facilities and campuses needing centralized oversight.
Get a Quick Quote for a ABB 3AXD50001063139
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001063139?
Enquire Now
FAQs
The ACH580 HVAC drive is designed for LV AC wall-mounted installation with standard IP21 protection and optional IP55. It supports fans, pumps, and compressors used in AHUs and chillers. For compatibility, mount on a suitable wall, connect to 400 V supply, and use the HVAC-specific control menu to align with existing building management systems. Remote setup via Bluetooth is available for larger deployments.
The unit is a 45 kW, 89 A drive operating at 400 V. These specs deliver robust motor control for HVAC fans and pumps, enabling precise speed regulation, energy savings, and extended motor life. Its built-in controls support smooth starts and stops, reducing mechanical stress and improving system stability in variable load scenarios such as VAV and chiller applications.
Yes. The ACH580 HVAC drive is specifically designed for HVAC applications, including air handling units, pumps, and chillers. Its HVAC-focused control panel, built-in helper menus, and compatibility with wall-mounted installation make it ideal for central plants and distributed HVAC networks, delivering reliable operation, faster commissioning, and energy-efficient performance across diverse equipment.
The drive features IP21 protection in its standard enclosure with IP55 and flange-mount options available, supporting safe operation in mechanical rooms. It is built to comply with IEC-based safety and performance standards typical for HVAC drives. For EU projects, CE compliance is commonly expected; verify local requirements with the supplier to ensure all regulatory obligations are met.
ROI improves through energy savings from precise speed control and reduced wear from smooth starts. Maintenance benefits include fewer on-site service visits due to intuitive HVAC menus and optional Bluetooth for remote diagnostics and monitoring. Space-efficient wall mounting and reliable IP-rated enclosures further reduce downtime and lifecycle costs, making it a strong choice for multi-zone facilities.
