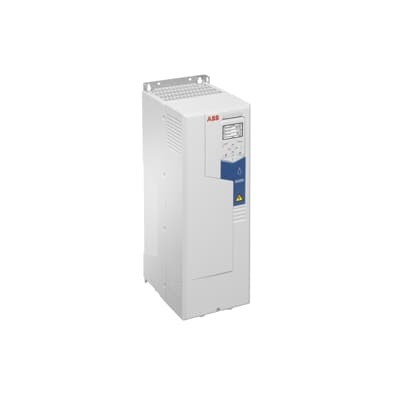

ABB 3AXD50001063146 LV AC wall-mounted drive - IP21
Part Number: 3AXD50001063146
Quick Summary
ABB 3AXD50001063146 is a LV AC wall-mounted drive for water and wastewater pumping applications. Operators face energy waste, pump wear, and downtime; this drive helps cut energy use and extend pump life. Built with IP21 enclosure as standard and optional IP55 and flange mounting units, it supports safe, reliable installation in varying plant environments. Designed with integrated pump features and an intuitive control interface, it reduces commissioning time and enables precise control across multi-pump configurations. The built-in energy calculator and compatibility with Drive Composer and a Bluetooth control panel deliver measurable business value while lowering operating costs.
Product Information
Extended Description
3AXD50001063146 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Sensorless flow calculation and multipump control streamline pump operation. Business impact: reduces hardware count and maintenance while improving energy efficiency across variable flow conditions. Application: ideal for municipal water networks and wastewater lift stations where multiple pumps share loads. Level control, soft pipe fill, and dry run protection prevent water hammer and premature wear. Business impact: extends pump life, reduces surge damage, and lowers downtime costs. Application: critical in pumping stations with fluctuating levels and dead-end conditions. Built-in energy calculator enables real-time visibility into potential savings. Business impact: supports data-driven decisions and lower operational costs. Application: use during commissioning and ongoing optimization. Compatibility with Hand-Off-Auto control, Drive Composer PC tool, and an optional Bluetooth panel accelerates commissioning and remote diagnostics. Business impact: faster deployment and easier maintenance. Application: field teams and integrators benefit from streamlined setup. Installation flexibility comes from IP21 standard enclosure with wall-mount capability, plus IP55 option and flange mounting units for harsher environments. This reduces retrofit risk and simplifies integration with existing plant electrical and control systems. Business impact: faster, safer installations with scalable protection. Application: retrofit projects and new-build water/wastewater facilities. Quick ramps and a dedicated impeller-cleaning solution help protect hydraulics during start-up and reduce maintenance. Business impact: lowers mechanical stress and maintenance frequency. Application: high-demand pumping services in treatment plants and distribution networks. The drive's sensorless features and comprehensive protection suite deliver reliable operation in tough water and wastewater service. Application: all year-round plant operations.
Get a Quick Quote for a ABB 3AXD50001063146
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001063146?
Enquire Now
FAQs
This drive runs on 400 V with a 89 A current and 45 kW rating and ships with an IP21 enclosure by default. For harsher environments, IP55 options and flange mounting are available, and wall-mounting helps minimize space impact while simplifying electrical integration.
Key specifications include 45 kW nominal power, 89 A current, and 400 V supply. It features sensorless flow calculation, multipump control, dry run protection, soft start with quick ramps, and level management to optimize pump operation and energy use.
Yes. It is designed for water and wastewater pumping, supporting single-pump and multipump configurations. Features such as level control, dry run protection, and an integrated energy calculator help optimize performance and reduce operating costs in treatment plants.
The standard enclosure is IP21, with IP55 and flange mounting units available as options. These provisions support installation in a variety of plant environments and help manage environmental protection requirements during operation.
The built-in energy calculator enables measurable energy savings, while sensorless control and protective features reduce pump wear and downtime. Easy commissioning via Hand-Off-Auto, Drive Composer, and an optional Bluetooth panel also lowers maintenance time and total cost of ownership.
