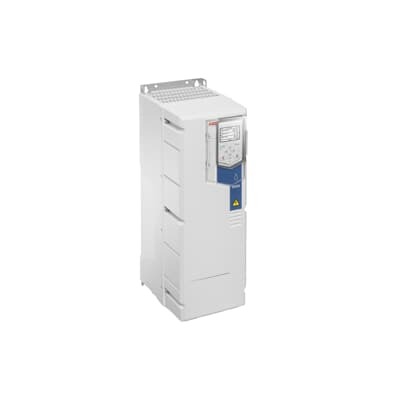

ABB 3AXD50001063153 LV AC Wall Drive - IP21/IP55
Part Number: 3AXD50001063153
Quick Summary
ABB 3AXD50001063153 LV AC wall-mounted drive is designed for reliable pump control in water and wastewater systems. It delivers precise, sensorless flow calculation and advanced pump coordination to optimize energy usage and extend equipment life. Operators often face energy waste and unexpected pump failures; this drive mitigates those risks with dry-run protection, level control, soft pipe fill, and quick ramps that minimize inrush. The IP21 enclosure is standard, with IP55 and flange mounting options to suit harsh plant layouts. This solution also includes intuitive Hand-Off-Auto control, Drive Composer PC tool, and an optional Bluetooth panel, helping maintenance teams deploy, diagnose, and optimize performance while meeting regulatory and safety requirements.
Product Information
Extended Description
3AXD50001063153 ABB: The ACQ580-01 drives deliver innovative pump features for the water and wastewater industry, securing energy efficient flow of water and wastewater in your pumping solutions. This robust and compact wall-mounted drive has built-in pump application functionality such as sensorless flow calculation, multipump control, level control, soft pipe fill, dry run protection, quick ramps and a solution for keeping the impeller of the pump clean.
Usability is further enhanced with the intuitive Hand-Off-Auto control panel, the PC tool Drive composer and an optional Bluetooth=C2=AE control panel. The built-in energy calculator visualizes the energy savings achieved with the use of the drive. The ACQ580-01 variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature: Sensorless flow calculation. Business impact: Accurate flow estimation without a separate flowmeter reduces installation complexity and cost. Application: Water treatment and wastewater pumping where reliable open-loop control is critical. Feature: Multipump control. Business impact: Coordinated pumping reduces energy consumption and extends pump life by avoiding simultaneous starts. Application: Large-diameter water intake and wastewater lift stations. Feature: Level control and dry-run protection. Business impact: Prevents overflow and pump damage, safeguarding processes and reducing maintenance. Application: Lagoons, basins, and lift stations. Feature: Soft pipe fill and quick ramps. Business impact: Smooth starts minimize pressure surges and inlet turbulence, extending piping and impellers. Application: Industrial water transfer and filtration lines. Feature: Integrated energy calculator. Business impact: Quantifies energy savings, justifying automation investments. Application: Plant-wide efficiency projects. Feature: Hand-Off-Auto panel, Drive Composer, and Bluetooth option. Business impact: Faster commissioning, easier diagnostics, and remote monitoring. Application: Field service and remote plants.
Get a Quick Quote for a ABB 3AXD50001063153
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001063153?
Enquire Now
FAQs
The base model ships with an IP21 enclosure suitable for wall mounting in typical plant spaces, and IP55 variant options with flange mounting are available for harsher environments. These configurations support compact installation while maintaining ingress protection and service access for maintenance tasks.
Key features include sensorless flow calculation for accurate pump performance, multipump control to coordinate several pumps, level control to maintain setpoints, and dry-run protection to prevent motor damage when a pump runs dry. These capabilities translate to improved reliability and energy efficiency in water and wastewater systems.
The drive is rated at 45 kW, 89 A at 400 V AC, designed for low-voltage three-phase supply. It is wall-mounted with optional IP55 or flange-mount configurations. Plan for space around the enclosure, proper cable routing, and access to the Drive Composer tool for commissioning and fault diagnostics.
The energy calculator visualizes potential savings from speed and pump sequencing adjustments, supporting ROI calculations and justifying automation investments. Combined with sensorless flow control, it enables operators to optimize pumping efficiency, reduce energy bills, and meet regulatory energy performance targets over the system lifetime.
Setup and diagnostics are aided by the Hand-Off-Auto control panel and the Drive Composer PC tool, with an optional Bluetooth control panel for field or remote access. These tools speed commissioning, simplify troubleshooting, and enable ongoing performance optimization in distributed or hard-to-reach installations.
