ABB 3AXD50001076382 Wall-Mounted Ultra-Low Harmonic Drive - THDi <3%
Part Number: 3AXD50001076382
Quick Summary
ABB ACH580 ultra-low harmonic HVAC drive precisely controls fans, pumps, and compressors in commercial building HVAC systems. It addresses harmonic distortion, energy waste, and lengthy commissioning times that plague critical HVAC applications. UL-listed performance and IP21 enclosure (with IP55 and flange-mount options) help ensure reliability in varied environments. The built-in active supply unit and integrated low harmonic line filter reduce the need for external filters or complex power wiring. Designed for seamless integration and remote monitoring via optional Bluetooth, this drive delivers tangible business value through easier installation and improved energy efficiency.
Product Information
Extended Description

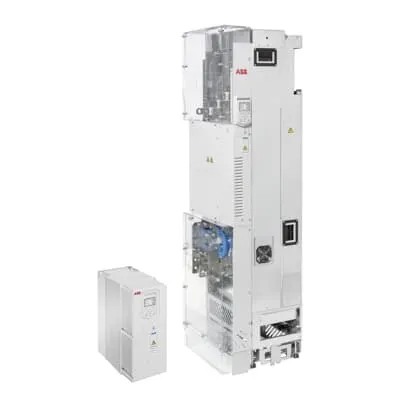

3AXD50001076382 ABB: ACH580 HVAC drive offering has all key features built-in to control fans, pumps and compressors, and more complex equipment like air-handling units and chillers, ensuring smooth, energy-efficient operation of your HVAC systems in normal and mission-critical situations. This ultra-low variant provides ultimate harmonic performance, reaching even less than 3 % THDi, and exceeding the requirements set by low harmonic recommendations. The drive includes an active supply unit and integrated low harmonic line filter, meaning there is no need for external filters, multi-pulse arrangements or special transformers. Other features include output voltage boost and power factor correction. The built-in features significantly reduce installation time, and the intuitive HVAC specific control panel and help assistants make operation easy. The optional Bluetooth=C2=AE capability enables the commissioning and monitoring of the drive from a distance. The variant comes in IP21 enclosure as standard and can be installed on the wall. Also, IP55 and flange mounting units are available.
Feature → Business Impact → Application: Built-in active supply unit and integrated low harmonic line filter eliminate the need for external filters or multi-pulse arrangements, reducing cabinet size and installation time while simplifying power wiring. This translates to lower capital costs and faster project completion for new builds and retrofit projects, especially where space is at a premium in commercial HVAC rooms. Application: suitable for wall-mounted HVAC drives controlling fans, pumps, and air handling units. Feature → Business Impact → Application: Ultra-low harmonic performance with THDi <3% helps meet low harmonic recommendations and electrical utility requirements, reducing the risk of grid disturbances and fines. This supports compliance in regulated facilities and enables continuous operation of critical loads. Application: ideal for data centers, hospitals, and large office campuses seeking dependable energy efficiency. Feature → Business Impact → Application: Output voltage boost and built-in power factor correction improve motor efficiency, voltage stability, and energy savings across variable loads. This reduces peak currents, lowers utility bills, and extends drive life. Application: pumps and fans in variable-speed HVAC systems and chillers. Feature → Business Impact → Application: IP21 enclosure as standard with optional IP55 and flange mounting provides installation flexibility in indoor environments and harsher spaces, while wall mounting saves footprint. This minimizes retrofit disruption and supports retrofits in aging buildings. Application: retrofit projects in existing mechanical rooms and rooftop units. Feature → Business Impact → Application: HVAC-specific control panel with intuitive interfaces and optional Bluetooth commissioning accelerates setup, diagnostics, and remote monitoring, reducing on-site service visits. This shortens commissioning cycles and improves maintenance planning. Application: large-scale installations and multi-zoning HVAC systems requiring rapid commissioning and ongoing supervision.
Get a Quick Quote for a ABB 3AXD50001076382
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001076382?
Enquire Now
FAQs
The ACH580 is designed for wall-mounted installation with a standard IP21 enclosure and optional IP55 or flange-mount configurations. It supports 230 V systems and delivers 10 Hp with a current of about 30.8 A. Compatibility with HVAC fans, pumps, and compressors is optimized by an integrated low harmonic filter and an active supply unit, which reduces cabling complexity and external hardware needs.
Key specs include 230 V, 30.8 A, 10 Hp nominal power, and THDi below 3%. These features translate to better voltage stability, reduced harmonic distortion, and improved motor efficiency, which lowers energy use and minimizes electrical grid impact in continuous HVAC operation.
Applications with variable-speed control for fans, pumps, air handling units, and chillers benefit most. The ultra-low harmonic performance helps meet utility guidelines, while the built-in features ease installation and commissioning, delivering reliable operation for commercial buildings and critical environments.
The ACH580 variant is UL-listed for low-harmonic performance and is delivered in an IP21 enclosure by default, with optional IP55 and flange-mount configurations. These certifications and options provide reliability in standard indoor spaces and more demanding environments, aligning with building codes and safety standards.
Expect lower energy costs due to improved motor efficiency and reduced harmonic penalties, along with faster commissioning from built-in features. Maintenance is simplified by an integrated filter and active supply unit, reducing external components. Remote monitoring option via Bluetooth also helps optimize uptime and plan preventive maintenance.
