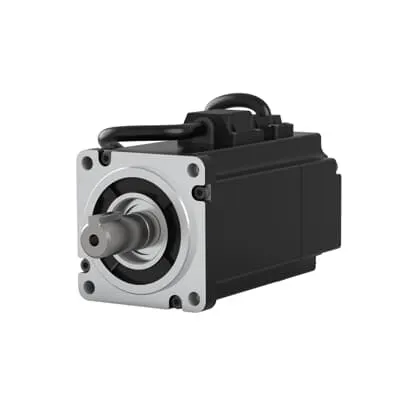

ABB 3AXD50001101435 DSM servo motor - 5 pole-pairs design
Part Number: 3AXD50001101435
Quick Summary
ABB DSM servo motor is a high-precision LV AC motor designed for automated machinery and packaging lines. Engineers often face torque ripple and challenging integration when adding new servos to existing control architectures. While this motor supports brake, oil seal, and encoder options, the 5 pole-pairs design notably reduces cogging torque, enabling smoother motion at higher speeds. Pairing this motor with ABB's E530 servo drive offers a streamlined control loop, faster tuning, and reliable performance, delivering lower downtime and higher throughput for industrial automation projects. This solution aligns with motion control and servo drive compatibility, supporting scalable automation while reducing total cost of ownership.
Product Information
Extended Description
3AXD50001101435 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature: 0.4 kW nominal power with 1.27 N·m torque at 220 V provides strong, responsive performance for compact motor footprints. Business Impact: Enables precise velocity and torque control on small to mid-sized machines, improving cycle times and reducing energy waste. Application: CNC machines, pick-and-place lines, and packaging equipment benefit from tighter speed regulation and smoother starts. Feature: 5 pole-pairs design significantly lowers cogging torque for cleaner motion at low and high speeds. Business Impact: Increases repeatability, reduces vibration, and enables higher-speed maneuvering without sacrificing accuracy. Application: High-precision conveyor sections and servo-guided assembly stages. Feature: Drive compatibility with E530 servo drive simplifies integration and tuning across ABB automation stacks. Business Impact: Shortens commissioning windows, lowers integration risk, and supports unified diagnostics. Application: Retrofit projects and new line builds in automotive, food & beverage, and electronics manufacturing. Feature: Optional brake, oil seal, and encoder-type variants offer flexible protection and feedback customization. Business Impact: Safe stall protection, rugged operation in harsh environments, and feedback resolution tuned to application needs. Application: Harsh manufacturing floors, washdown zones, and high-precision robotics. Feature: Compact LV design with robust construction supports easy installation and space savings. Business Impact: Reduced cabinet real estate and simpler wiring, enabling denser automation layouts. Application: Legacy lines migrating to modern servo control and new machine builds.
Get a Quick Quote for a ABB 3AXD50001101435
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001101435?
Enquire Now
FAQs
Yes, this DSM servo motor is designed for use with the ABB E530 servo drive, enabling streamlined control loops and tuning. Wiring considerations include matching encoder feedback (depending on encoder type), correct motor wiring to the drive terminals, and ensuring the drive’s rated voltage (220 V) aligns with the plant power. Use shielded cables in harsh environments and follow ABB guidance for motor-to-drive distance to minimize electrical noise and ensure reliable commutation.
The 5 pole-pair configuration reduces cogging torque across the motor’s speed range, yielding smoother torque transitions and less vibration at startup and during high-speed moves. This improves repeatability and positional accuracy in precision applications and supports higher-speed operation on compact packages and tooling stations without compromising control fidelity.
This motor excels in packaging, robotics, CNC, and general automation where compact size, reliable 0.4 kW performance, and precise torque control matter. Its configurable encoder, brake, and seal options make it suitable for harsh environments or safety-critical holds, while the E530 drive compatibility supports scalable automation architectures in automotive, food & beverage, and electronics manufacturing.
Specific certifications are not listed in the provided data for this model. In practice, industrial servo systems commonly require CE safety compliance and may use IP-rated enclosures depending on installation conditions. Always verify with ABB or your distributor for the exact certification scope and enclosure protection rating relevant to your environment.
Utilizing brake and encoder options supports safe holds and accurate feedback, reducing downtime during tool changes or power losses. With 0.4 kW power and 1.27 N·m torque, plus cogging torque reduction, expect improved cycle times and reliability. A unified ABB drive ecosystem enhances diagnostics and spare-part alignment, lowering total cost of ownership over the motor’s lifecycle.
