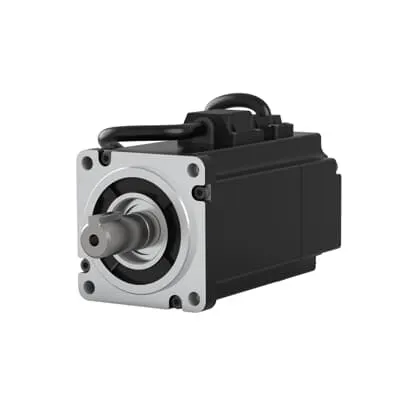

ABB 3AXD50001101442 Motor - 5 pole-pairs design
Part Number: 3AXD50001101442
Quick Summary
ABB DSM servo motor delivers precise position control for automated machinery. End users struggle with cogging torque, tedious commissioning, and inconsistent motion when integrating servo systems. Common certifications in ABB servo families include CE compliance, IP protection, and SIL readiness where applicable, reflecting safety and reliability in harsh factory environments. Designed for LV AC servo motor systems and E530 drive compatibility, it leverages a compact five-pole design to boost efficiency and reduce setup time, yielding measurable productivity gains.
Product Information
Extended Description
3AXD50001101442 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Five-pole design: The DSM servo motor uses a five-pole-pair configuration, making the package more compact while significantly reducing cogging torque. This yields smoother torque delivery and tighter speed control at low RPM, enabling higher repeatability in precision applications. Application fit includes packaging lines, CNC machines, and automated cells where consistent, high-accuracy motion is critical. In practice, manufacturers see lower waste and fewer process excursions when using 5-pole designs in servo systems. Power and interface: With a rated power of 0.4 kW and 220 V supply, this LV AC motor delivers reliable torque while maintaining efficient energy use. The compact electrical footprint simplifies panel wiring and cooling considerations, supporting quicker commissioning. The design reduces heat buildup, which can extend motor life and reduce maintenance. Ideal for conveyor axes, small robotic actuators, and direct-drive applications requiring compact yet capable motion. Drive compatibility: Engineered to work with ABB’s E530 servo drive, the DSM motor enables straightforward integration with closed-loop control. This reduces tuning time, improves repeatability under load changes, and supports fast start/stop performance. Application sectors include sorting lines, pick-and-place stations, and other deterministic automation tasks where predictable response matters. The result is streamlined retrofits and smoother modernization of existing lines. Flexible options: Brake, oil seal, and encoder-type options tailor protection and feedback to harsh environments. This adaptability minimizes downtime from contamination or unexpected stops and extends service life in dusty or oily lines. For OEMs, encoder choice supports complex trajectory control and repeated cycling in packaging, food-and-beverage handling, and wet facilities. Reliability and ROI: The compact package and ABB engineering simplify mounting and alignment, reducing installation time and spare-part variety. Users gain throughput gains, reduced rework, and improved MTBF across shifts, delivering a compelling business case for retrofits and new lines alike. Long-term maintenance costs are lowered through robust construction and validated drive compatibility.
Get a Quick Quote for a ABB 3AXD50001101442
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001101442?
Enquire Now
FAQs
Begin by confirming compatible voltage (220 V LV AC) and connect the motor to the E530 drive according to the drive's wiring diagram. Mount the servo on a rigid frame, align the shaft to your load, and configure motor parameters in the E530—torque, velocity, and position gains. Ensure proper brake and encoder options are selected for your environment, then perform a controlled test run to validate tuning and limit settings.
The motor is a 0.4 kW rated power LV AC servo motor with a torque constant of 1.27 N·m and a 220 V supply. It features a five-pole design to reduce cogging torque and improve smoothness. It is intended for use with ABB’s E530 drive for closed-loop control, enabling precise and repeatable motion across packaging, CNC, and automation applications.
Yes. The combination of 0.4 kW power, 1.27 N·m torque, 220 V LV AC operation, and the five-pole design makes it well-suited for packaging lines, pick-and-place stations, and CNC axes. Its compatibility with the E530 drive supports deterministic motion, repeatability, and reliable performance in high-throughput environments.
Verify CE compliance for safety and regulatory alignment and check for IP protection appropriate to your environment, especially in dusty or wet production lines. If needed, confirm SIL readiness or other certifications with ABB for your specific regulatory region and application, and ensure the installation meets site-specific electrical and safety standards.
Expect ROI from improved throughput due to tighter motion control and reduced downtime from lower cogging and easier integration with the E530 drive. The motor’s compact packaging and flexible encoder options also reduce panel complexity and maintenance costs, delivering faster commissioning, fewer rework cycles, and longer MTBF across shifts.
