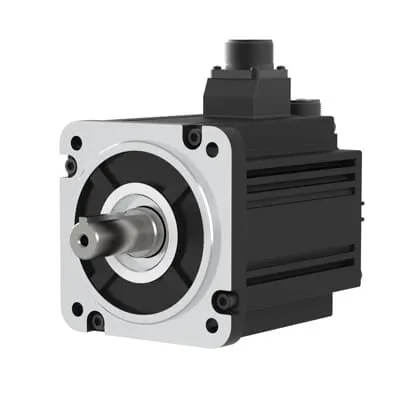

ABB DSM Servo Motor 3AXD50001101527 - 5-pole design
Part Number: 3AXD50001101527
Quick Summary
ABB DSM servo motor delivers precise torque and positioning for automated production lines and machine tools. Many engineers struggle with cogging, torque ripple, and challenging integration when upgrading servo systems. CE-compliant designs and configurable options such as brakes, oil seals, and encoder types help meet industry safety and reliability standards. For machine builders and OEMs, the DSM motor pairs with ABB E530 drives to boost throughput, reduce downtime, and simplify installation in industrial automation environments. Its 5-pole-pair design contributes to smoother motion, while 220 V operation supports compact, scalable deployments in modern manufacturing environments. This combination delivers reliable performance for robotics, packaging, and conveyor applications.
Product Information
Extended Description
3AXD50001101527 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature → Business Impact → Application: The DSM servo motor provides a rated power of 0.85 kW with 220 V operation, enabling precise torque control and robust performance on small to mid-sized automation tasks. This translates to improved positioning accuracy and reduced cycle times on packaging lines and CNC workflows. Application: Ideal for compact robotics and material handling where a compact footprint and reliable speed regulation matter. Feature → Business Impact → Application: A 5-pole-pair design reduces cogging torque, delivering smoother motion and better repeatability in high-precision pick-and-place or machining operations. Application: Beneficial for high-precision robotics and stamping or machining centers requiring repeatable motion profiles. Feature → Business Impact → Application: Compatibility with the E530 servo drive ensures streamlined integration within ABB motion control ecosystems, lowering commissioning time and spare parts variety. Application: Suitable for retrofit projects and new machinery where fast deployment and predictable performance are essential. Feature → Business Impact → Application: Configurable options including brake, oil seal, and encoder types offer customization to environmental conditions and maintenance strategies, reducing long-term operating costs. Application: Ideal for environments with exposure to dust or oil splashes and applications needing torque monitoring or encoder feedback for closed-loop control. Feature → Business Impact → Application: Compact design and 220 V operation support easy installation and minimal cabinet space, enabling scalable automation deployments across factories. Application: Great for packaging lines, conveyors, and robotics cells where space and power supply constraints are common.
Get a Quick Quote for a ABB 3AXD50001101527
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001101527?
Enquire Now
FAQs
When pairing the ABB DSM servo motor with an E530 drive, ensure compatible cabling for 220 V operation, select encoder options suitable for your feedback requirements, and configure brake or oil seal accessories if your environment demands extra protection. Mounting should follow standard servo motor practices with proper torque alignment and secure torque cables to minimize vibration, while ensuring sufficient space for heat dissipation and maintenance access.
The motor is rated at 0.85 kW with a torque specification of Tn 5.39 N·m, designed for 220 V operation. The 5-pole-pair design reduces cogging torque, resulting in smoother low-speed motion and higher positional accuracy, which is particularly beneficial in pick-and-place, packaging, and precise robotic tasks.
Yes. The ABB DSM servo motor is well-suited for packaging lines, robotics, and material handling due to its compact form, 0.85 kW power band, and compatibility with ABB motion control ecosystems like the E530 drive. Its configurable encoder options, along with brake or oil seal variants, support reliable operation in dynamic production environments while delivering repeatable motion and improved throughput.
CE-compliant designs are available, with configurable options such as brake, oil seal, and encoder types to meet industry safety and reliability requirements. Certification scope can vary by configuration, so confirm the exact compliance and testing documentation for your jurisdiction and installation environment when purchasing or retrofitting.
ROI is driven by reduced downtime from smoother motion and higher throughput, plus lower maintenance due to configurable components like brakes and oil seals that extend component life. Maintenance strategies should include regular encoder feedback checks, brake wear inspection if used, and periodic drive firmware validation to maintain optimal closed-loop performance.
