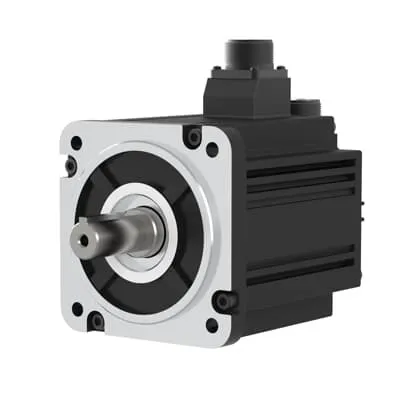

ABB 3AXD50001101596 Servo Motor - 5 Pole-Pair, 1.3 kW
Part Number: 3AXD50001101596
Quick Summary
ABB 3AXD50001101596 Servo Motor delivers precise LV AC motion control for automation, packaging lines, and machine tools. Engineers often struggle with cogging torque, integration time, and inconsistent feedback when upgrading legacy systems. Designed to support industry standards and safety through configurable options, it offers brake, oil seal, and encoder variants, with a 5-pole-pair design for smoother performance. With E530 drive compatibility and flexible protection options, this motor helps reduce commissioning time and maintenance costs while delivering predictable performance in demanding environments.
Product Information
Extended Description
3AXD50001101596 ABB: The DSM servo motor is a high performance servo motor. It is used together with the E530 servo drive. The DSM servo motor offers various options including: brake, oil seal, and encoder type, which provides flexible choices for customers. The 5 pole-pairs design makes it more compact in structure and effectively reduce the cogging torque.
Feature: 1.3 kW LV AC servo motor with a 5-pole-pair design reduces cogging torque. Business Impact: Improves positioning accuracy and smoothness at high speeds, driving tighter process control and reduced vibration. Application: Ideal for high-speed packaging lines and precision machine tools that demand consistent torque across a range of speeds. Feature: Compatibility with the E530 servo drive. Business Impact: Simplifies system integration, lowers commissioning time, and minimizes wiring errors by leveraging a unified ABB drive ecosystem. Application: Retrofit projects and new automation cells seeking reliable drive coordination. Feature: Brake, oil seal, and encoder type options. Business Impact: Tailors protection and feedback to harsh environments, increasing uptime and diagnostic visibility. Application: Conveyors, spindles, and robotic cells operating in dusty or moist production areas. Feature: Compact, robust design with high dynamic response. Business Impact: Enables smaller machine footprints and faster in-field setup, reducing cabinet size and installation costs. Application: OEM equipment with space constraints or retrofits in existing lines. Feature: 220 V operation and configurable feedback. Business Impact: Widens site applicability and supports standard industrial power rails, while encoder options deliver high-resolution positioning. Application: Automotive, food and beverage, and general manufacturing environments seeking reliable 3-phase control.
Get a Quick Quote for a ABB 3AXD50001101596
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 3AXD50001101596?
Enquire Now
FAQs
Begin by validating the power supply is 220 V and the control wiring matches the E530 drive’s terminal map. Mount the motor with the supplied couplings and brake/encoder options as required, then configure the drive’s motor parameters for a 1.3 kW, 5-pole-pair DSM motor. Use ABB's commissioning routines to auto-tune, verify torque, and test slow-to-fast velocity profiles for smooth startup and accurate positioning.
The motor provides a nominal torque of 8.34 N·m (Tn) with a 5-pole-pair construction, delivering high dynamic response. Encoder options are configurable to match your precision needs, enabling improved feedback for position, speed, and servo stability. This flexibility supports both high-resolution positioning and robust closed-loop control across varying loads.
Yes. The 1.3 kW rating, 220 V operation, and 5-pole-pair design deliver smooth torque and accurate speed control ideal for packaging lines and CNC machines. Its compatibility with the E530 drive simplifies synchronization with other axes, while optional brake and encoder configurations enhance reliability in precision tasks and tight-tolerance processes.
Certification availability depends on configuration. The DSM motor supports typical safety and compliance expectations through configurable options such as brake and oil seal, plus encoder variants. For regulated deployments, specify the required safety and protection levels during procurement to ensure alignment with your plant's certification and environmental requirements.
The motor reduces commissioning time due to E530 drive compatibility and straightforward parameterization, lowering startup costs. Its configurable protections and high-precision feedback reduce downtime and scrap by delivering stable, repeatable motion. Over the asset lifecycle, you gain better reliability, easier diagnostics, and lower maintenance costs in demanding production lines.
